Запчасти Case IH 955 (9F-04) - GRANULAR CHEMICAL RATE CONTROL (09) - CHASSIS/ATTACHMENTS

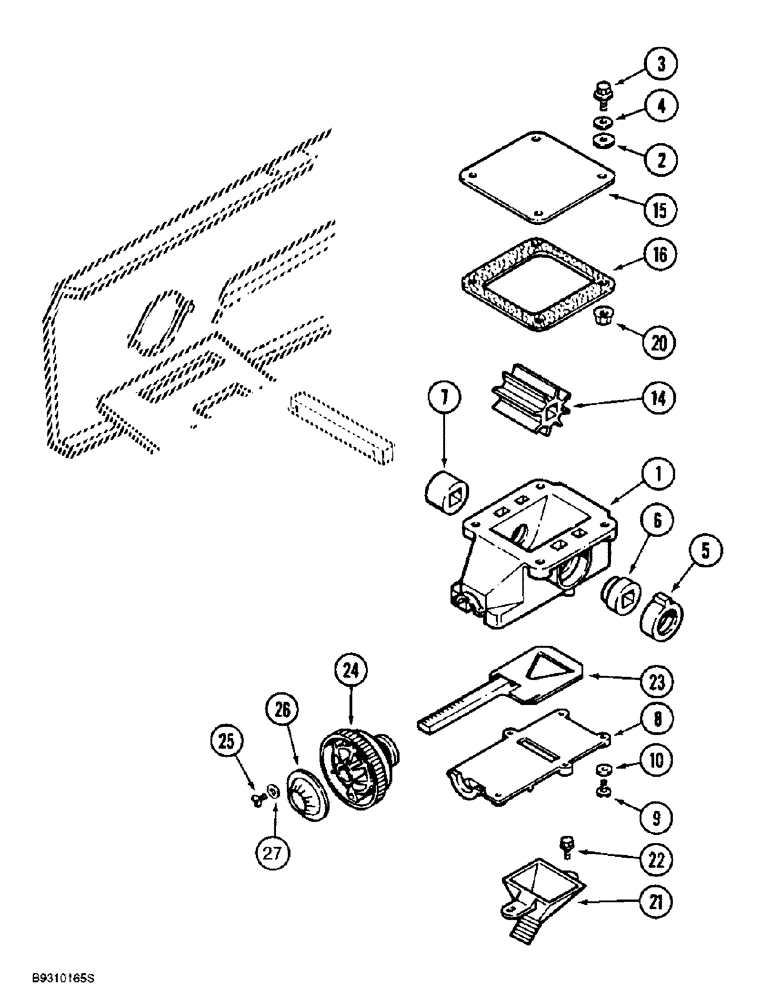

Схема запчастей Case IH 955 - (9F-04) - GRANULAR CHEMICAL RATE CONTROL (09) - CHASSIS/ATTACHMENTS
23
22
14
25
20
8
21
26
24
16
4
6
10
27
9
5
15
2
3
1
7

Артикул

Название

Примечание

Количество

1

137043C1

HOUSING

- feed roller

1шт.

2

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

- rubber

4шт.

3

281-34712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

4

495-81102

WASHER,.266" x 1/2" x .060"

- flat, 17/64 x 1/2 x 3/64 inch

4шт.

5

134293C1

HOUSING

BUSHING - housing

2шт.

6

134297C1

BUSHING

- drive shaft

2шт.

7

134290C1

SPACER

- coupling

1шт.

8

137055C1

RETAINER

- gauge control

1шт.

9

261-34510

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 5/8 inch

6шт.

10

495-31020

WASHER,#10

flat (13/64" x 15/32" x 3/64") #10

6шт.

14

134296C1

ROLL

ER - feed

1шт.

15

137186C1

COVER

- housing

1шт.

16

134298C1

GASKET

- cover

1шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

21

137044C1

NECK FILLER

FUNNEL - chemical flow

1шт.

22

281-4466

SELF-TAP SCREW,Hex Wash Hd, #12 x 3/8"

SCREW - self-tapping, hex washer head, No. 12 NC x 3/8 inch

2шт.

23

134286C1

GAUGE

GATE - rate control

1шт.

24

134287C1

KNOB

- gauge

1шт.

25

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

2шт.

26

134294C1

DIAL

INDICATOR - dial handle disc

1шт.

27

495-31020

WASHER,#10

flat (13/64" x 15/32" x 3/64") #10

2шт.

Выбрано товаров: 21
