Запчасти Case IH 955 (9E-06) - ROW MARKER INNER SECTION, 6 ROW WIDE, 8 ROW, AND 12 ROW NARROW, 8/15 ROW SOLID ROW CROP (09) - CHASSIS/ATTACHMENTS

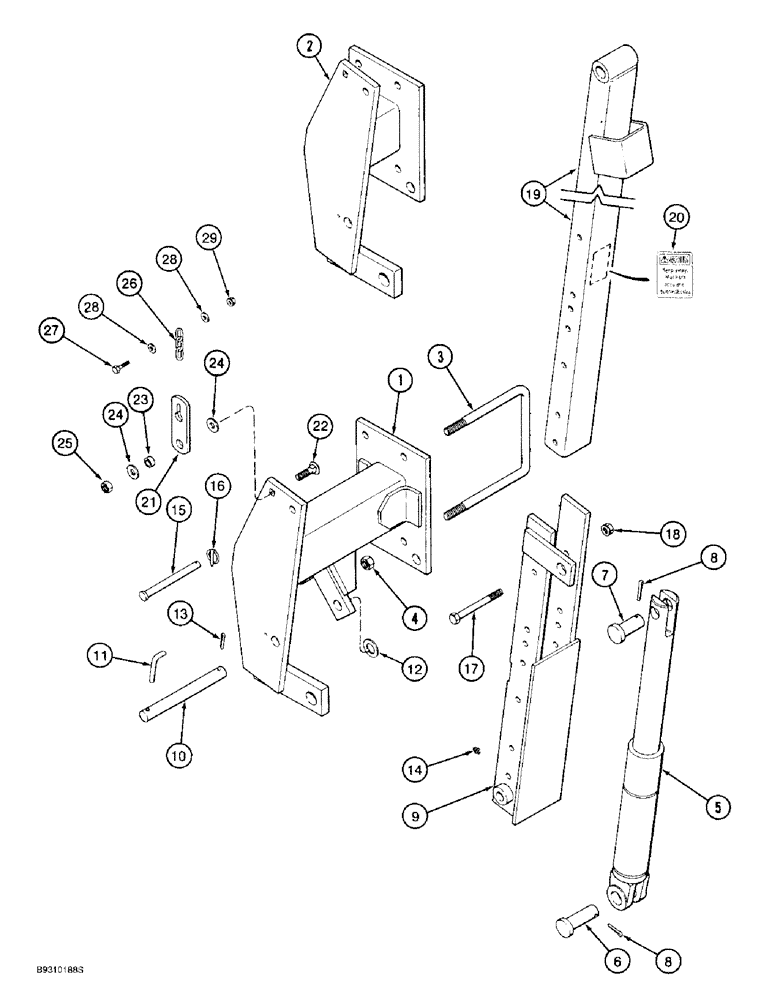

Схема запчастей Case IH 955 - (9E-06) - ROW MARKER INNER SECTION, 6 ROW WIDE, 8 ROW, AND 12 ROW NARROW, 8/15 ROW SOLID ROW CROP (09) - CHASSIS/ATTACHMENTS
8
16
27
8
21
9
28
1
25
18
6
19
13
23
7
3
4
29
2
24
5
15
22
20
11
12
14
24
28
17
26
10

Артикул

Название

Примечание

Количество

1

144877C3

BRACKET

- pivot, marker, long, right-hand (Shown)(All rigid frames, 8/15 row solid row crop and 15 row solid row crop)

1шт.

1

133979C3

BRACKET

- pivot, marker, short, left-hand (All rigid frames)

1шт.

2

100235C3

BRACKET

- pivot, marker, short, right-hand (Shown)(All vertical fold)

1шт.

2

100234C3

BRACKET

- pivot, marker, long, left-hand (All vertical fold, 8/15 row solid row crop and 15 row solid row crop)

1шт.

3

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

4шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

REF

INSTRUCTION

CYLINDER ASSEMBLY - 2 (51) ID x 8 inch (203 mm) stroke, lift, marker (See pages 8-33 and 8-35 for correct cylinder)

2шт.

6

439-11648

HEADED PIN,1" x 3", G2

PIN - headed, 1 x 3 inch, grade 2

2шт.

7

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

9

1277690C1

ARM

- pivot, right-hand (Shown)

1шт.

9

1277689C1

ARM

- pivot, left-hand

1шт.

10

100573C2

PIN,22.23mm OD x 210.8mm L

- 7/8 x 8-5/16 inch, pivot, arm

2шт.

11

813175C2

LOCK PIN,9.5mm OD

PIN - special, pivot lock

2шт.

12

495-81056

WASHER,29/32" x 1 1/2" x 3/64

- flat, 29/32 x 1-1/2 x 3/64 inch

2шт.

13

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

2шт.

14

219-406

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 15/32 inch

2шт.

15

439-5892

HEADED PIN,1/2" x 5 3/4", G5

PIN - headed, 1/2 x 5-3/4 inch

2шт.

16

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock, 3/16 inch diameter

2шт.

17

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

6шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

19

140795C92

TUBE

ARM - marker, end, includes decal (12 row narrow)

2шт.

19

140796C93

TUBE,592 mm Length

ARM - marker, end, includes decal (6 row wide, 8 row narrow, 8/15 row solid row crop and 15 row solid row crop)

2шт.

19

140797C93

TUBE,592 mm Length

ARM - marker, end, includes decal (8 row wide)

2шт.

20

1254154C2

WARNING DECAL

DECAL - Warning, Keep away. Markers actuate automatically (See Page 9F-11, item 11) used on planters built, Serial Range: prior-1997

2шт.

21

125789C1

BAR

- chain pivot

2шт.

22

412-824

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2", Gr 2

BOLT - carriage, 1/2 NC x 1-1/2 inch, grade 2

2шт.

23

546587R2

BUSHING

- 17/32 ID x 11/32 inch long, link

2шт.

24

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

25

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

26

493952R1

CHAIN (AG)

CHAIN - marker (6 row wide, 8 row narrow, 8/15 row solid row crop and 15 row solid row crop)

2шт.

26

489767R92

CHAIN (AG)

CHAIN - marker (8 row wide and 12 row narrow)

2шт.

27

424-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 2

- hex, 1/4 NC x 1-1/4 inch, grade 2

2шт.

28

495-81105

WASHER,.281" x 3/4" x .120"

- flat, 9/32 x 3/4 x 1/8 inch

4шт.

29

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

Выбрано товаров: 35
