Запчасти Case IH 955 (9E-02) - ROW MARKER, 6 ROW NARROW, 6/11 ROW SOLID ROW CROP (09) - CHASSIS/ATTACHMENTS

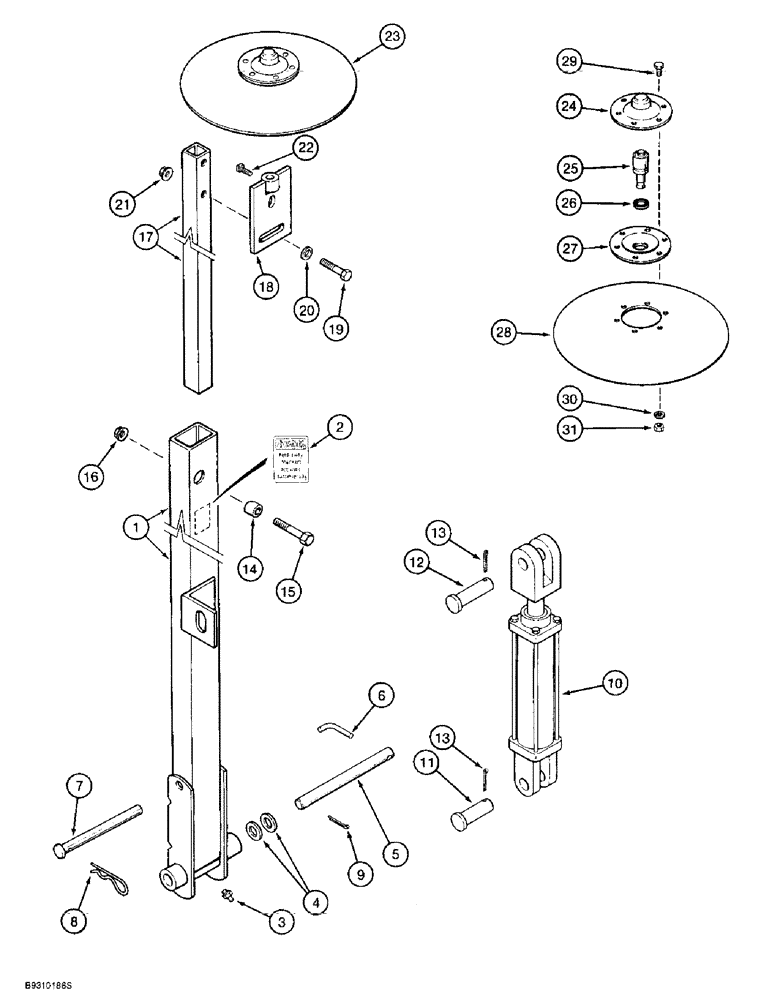

Схема запчастей Case IH 955 - (9E-02) - ROW MARKER, 6 ROW NARROW, 6/11 ROW SOLID ROW CROP (09) - CHASSIS/ATTACHMENTS
3
7
24
6
31
9
1
13
4
17
23
22
26
25
21
27
10
30
29
20
2
8
12
28
14
13
16
15
19
18
5
11

Артикул

Название

Примечание

Количество

1

95839C2

TUBE

ARM - marker, inner, includes decal

2шт.

2

1254154C2

WARNING DECAL

DECAL - Warning, Keep away. Markers actuate automatically (See Page 9F-11, item 11)

1шт.

3

219-406

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 15/32 inch

2шт.

4

495-81056

WASHER,29/32" x 1 1/2" x 3/64

- flat, 29/32 x 1-1/2 x 3/64 inch

6шт.

5

1263878C1

PIVOT PIN

PIN - pivot, marker

2шт.

6

813175C2

LOCK PIN,9.5mm OD

PIN - special, pivot lock

2шт.

7

1263946C1

HEADED PIN

PIN - retaining, tube

2шт.

8

1978738C1

HAIR PIN COTTER

3/16"

2шт.

9

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

2шт.

10

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke, lift, marker (See Page 8-31)

2шт.

11

439-11648

HEADED PIN,1" x 3", G2

PIN - headed, 1 x 3 inch, grade 2

2шт.

12

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

13

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

14

89200C1

TUBE,13.5 mm ID x 31.7 mm OD x 20 mm L

CLAMP - adjusting, marker tube

2шт.

15

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

17

1263882C1

TUBE,1060 mm Length

ARM - marker, outer

2шт.

18

1279601C1

LARGE PLATE

PLATE - disc adjusting

2шт.

19

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

20

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

21

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

22

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch, cup point

2шт.

23

1264358C1

DISC,13"

ASSEMBLY - marker

2шт.

24

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

- bearing, outer

1шт.

25

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING - ball, includes spindle

1шт.

26

480679R1

WASHER

- felt, dirt

1шт.

27

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

- bearing, inner

1шт.

28

469372R1

DISC,13"

- marker, 13 inch

1шт.

28a

NSS

NOT SOLD SEPARAT

RIVET - 5/16 x 3/4 inch (Not shown) (Order Ref. 29, 30, and 31)

6шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

31

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

12шт.

Выбрано товаров: 32
