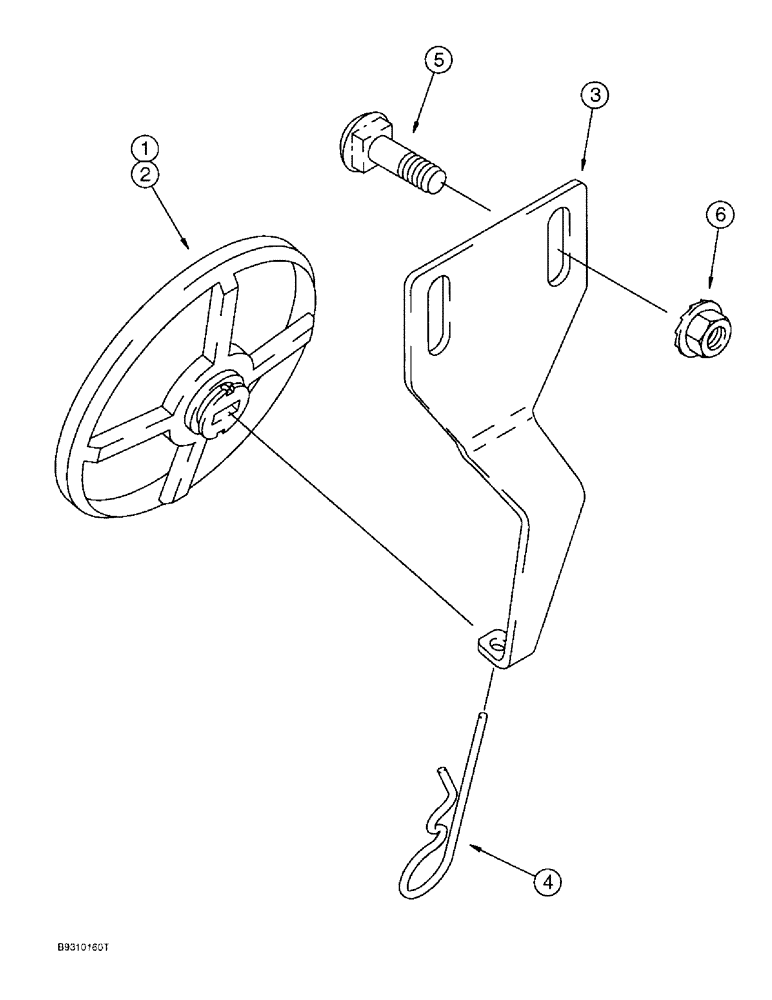

Запчасти Case IH 955 (9D-40) - ROTARY SCRAPER (09) - CHASSIS/ATTACHMENTS

1

1547680C1

KIT

SCRAPER ASSEMBLY - rotary

2шт.

2

1547194C1

HALF BLADE

BLADE - scraper

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - scraper

1шт.

4

136-111

COTTER PIN,Int, 7/32" x .062"

PIN - cotter, hair, 1/16 x 7/16 inch

1шт.

5

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

BOLT - carriage, 5/16 NC x 5/8 inch

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
