Запчасти Case IH 955 (9D-26) - DISC FURROWING ATTACHMENT (09) - CHASSIS/ATTACHMENTS

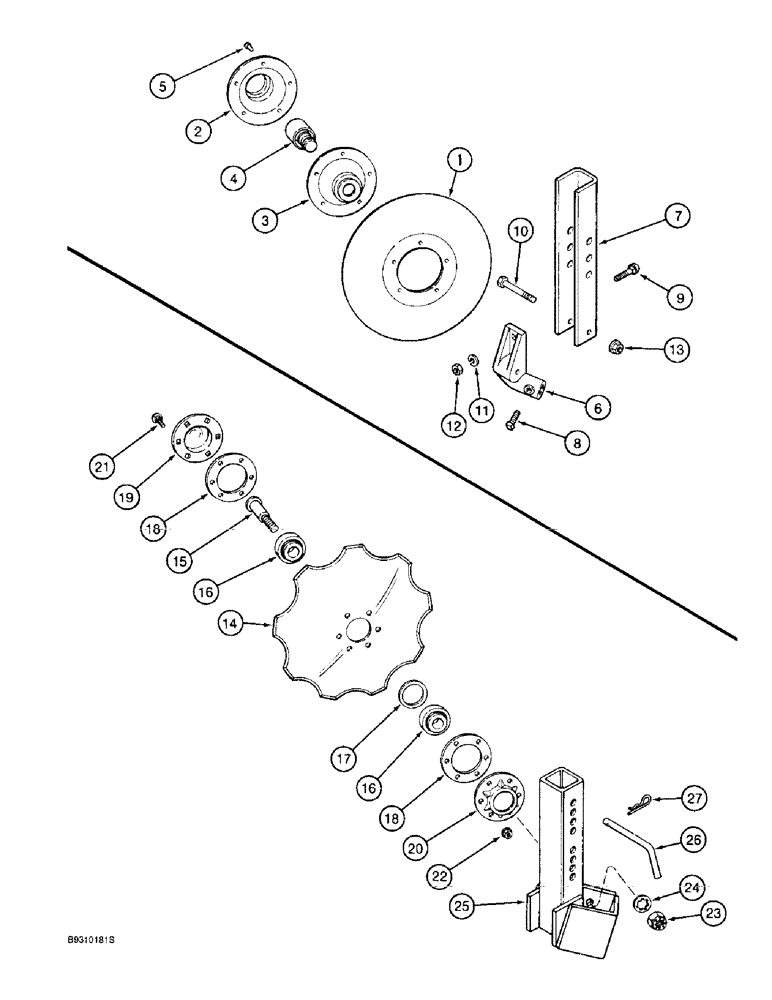

Схема запчастей Case IH 955 - (9D-26) - DISC FURROWING ATTACHMENT (09) - CHASSIS/ATTACHMENTS
6
19
8
12
18
16
11
5
1
16
25
22
9
3
18
14
4
13
21
7
26
27
20
2
23
15
17
24
10

Артикул

Название

Примечание

Количество

1277699C91

DISC

ASSEMBLY - furrowing, 9-1/4 inch

1шт.

1277698C91

DISC

ASSEMBLY - furrowing, 12 inch

1шт.

1

NSS

NOT SOLD SEPARAT

DISC - furrowing

1шт.

2

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

- bearing, outer

1шт.

3

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

HOUSING - bearing, inner

1шт.

4

1980505C1

BALL BEARING,38.1mm OD x 90.91mm L

BEARING - ball, includes spindle, furrowing disc

1шт.

5

NSS

NOT SOLD SEPARAT

RIVET - disc (Order 990323R91 one pound package)

10шт.

6

1277697C1

BRACKET

- furrowing disc (Used with 9-1/4 inch disc)

1шт.

6

1277696C1

BRACKET

- furrowing disc (Used with 12 inch disc)

1шт.

7

1345421C1

SUPPORT

BRACKET - furrowing disc, Serial Range: mounting-frame

1шт.

8

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point

2шт.

9

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

11

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

3шт.

13

231-5146

FLANGE NUT,3/8"-16

1шт.

1337540C1

DISC

ASSEMBLY - notched furrowing

2шт.

14

1337541C1

DISC

- notched, 12 inch, furrowing attachment

1шт.

15

1337546C1

STUD

SHAFT - stud, notched disc furrowing attachment

1шт.

16

1337545C1

BALL BEARING,0.755" ID x 2.0472" OD x 0.828"

- shaft, notched disc furrowing attachment

2шт.

17

1337544C1

RING

- retainer, notched disc furrowing attachment

1шт.

18

1337543C1

GASKET

- flange, notched disc furrowing attachment

2шт.

19

1337547C1

FLANGE

- bearing, outer, notched disc furrowing attachment

1шт.

20

1337542C1

FLANGE

- bearing, inner, notched disc furrowing attachment

1шт.

21

34-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch, notched disc furrowing attachment

6шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, Notched disc furrowing attachment

6шт.

23

231-24410

LOCK NUT,5/8"-18, GB

NUT - hex, self-locking, 5/8 inch NF, Notched disc furrowing attachment

1шт.

24

393-21065

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal tooth lock, 5/8 inch, notched disc furrowing attachment

1шт.

25

1337548C1

TUBE ASSY.

TUBE - mounting disk, notched disc furrowing attachment

1шт.

26

1337549C1

PIN

- retainer, tube, notched disc furrowing attachment

1шт.

27

407211R1

CLIP

PIN - hair, cotter (Package of 20), notched disc furrowing attachment

1шт.

Выбрано товаров: 31
