Запчасти Case IH 955 (9D-22) - AIR DIFFUSER (09) - CHASSIS/ATTACHMENTS

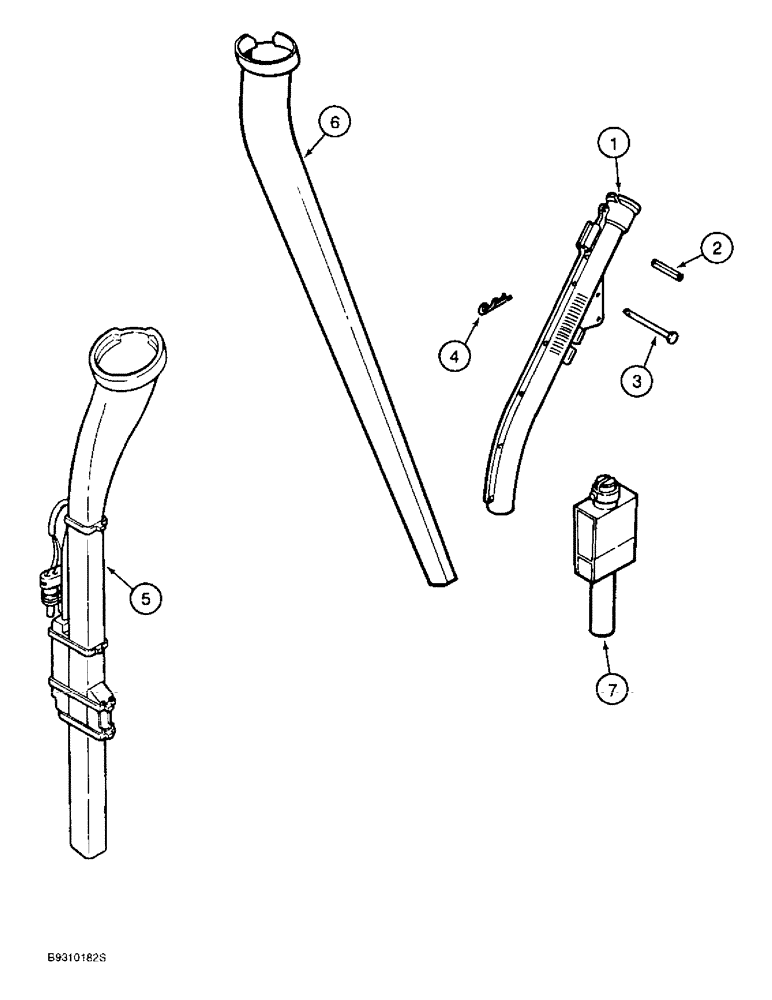

Схема запчастей Case IH 955 - (9D-22) - AIR DIFFUSER (09) - CHASSIS/ATTACHMENTS
3
7
2
5
6
4
1

Артикул

Название

Примечание

Количество

1

1986373C1

TUBE

DIFFUSER - air

1шт.

2

23670R1

PIN,6.35mm OD x 34.92mm L, Coiled

1шт.

3

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

PIN - pointed, 1/4 x 2-3/4 inch

2шт.

4

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

5

1986438C1

TUBE

- seed, with Hi-Rate sensor, corn and bean, attachments

2шт.

6

72902C2

TUBE,0.48" ID, 0.6" OD, 7.86" Length

- seed, beet, attachments

2шт.

7

147237C1

PLASTIC-RUBBER TUBE

SENSOR - seed tube, dummy, attachments

1шт.

REF#7, see Service Bulletin NSESB00491 for non-dummy sensor info. jfn 4/22/99

1шт.
