Запчасти Case IH 955 (9D-16) - PRESS WHEEL AND COVERING DISC, USED WITH LEFT-HAND LEADING DISC OPENER, ON R.H. SIDE OF PLANTER (09) - CHASSIS/ATTACHMENTS

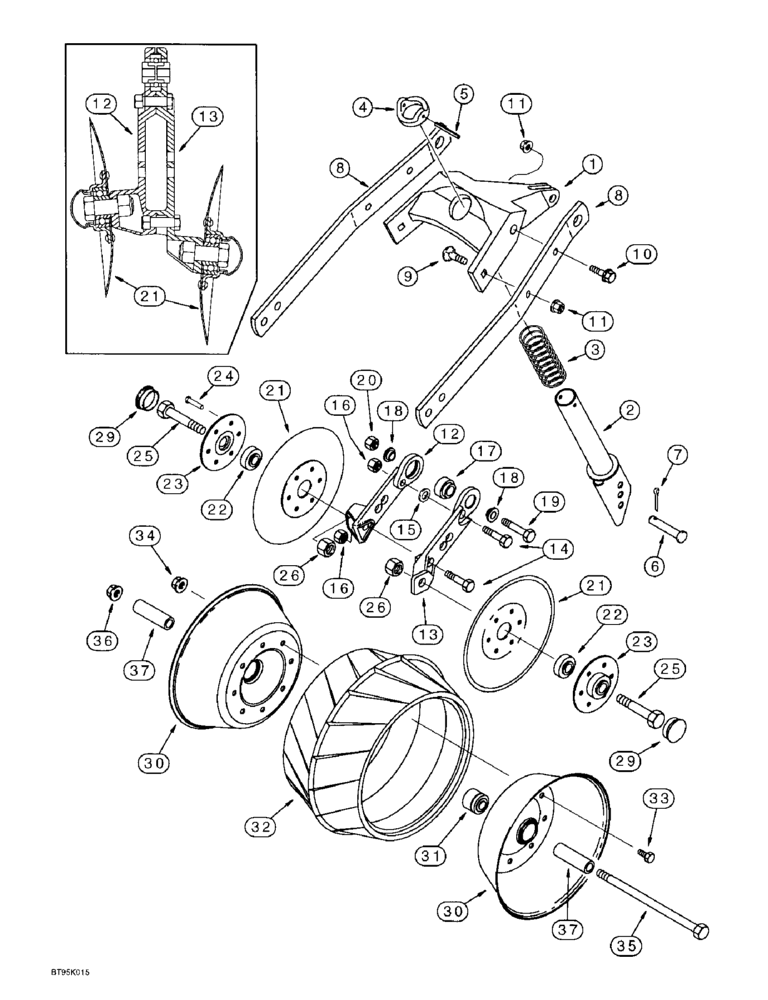

Схема запчастей Case IH 955 - (9D-16) - PRESS WHEEL AND COVERING DISC, USED WITH LEFT-HAND LEADING DISC OPENER, ON R.H. SIDE OF PLANTER (09) - CHASSIS/ATTACHMENTS
9
21
26
21
30
19
11
24
21
10
15
8
37
16
8
29
13
4
25
36
18
14
2
31
5
22
18
6
13
23
32
33
29
16
12
11
23
7
22
17
12
3
1
34
25
30
35
26
20
37

Артикул

Название

Примечание

Количество

1

149133C2

SUPPORT

- spring anchor

1шт.

2

1263893C1

GUIDE

- spring

1шт.

3

1263863C1

SPRING

- covering

1шт.

3

1264391C1

SPRING

- covering (min tillage only)

1шт.

4

1338485C1

COLLAR

- guide (Replaces 97558C1)

1шт.

5

38-31212

PIN,3/16" x 3/4", Coiled

2шт.

6

439-5632

HEADED PIN,3/8" x 2", G2

PIN - headed, 3/8 x 2 inch

1шт.

7

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

8

149138C2

BAR

SUPPORT - press wheel arm

2шт.

9

412-618

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/8" , Gr 2

BOLT - carriage, 3/8 NC x 1-1/8 inch, grade 2

2шт.

10

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

11

231-5146

FLANGE NUT,3/8"-16

4шт.

12

1279520C1

ARM

- pivot, short

1шт.

13

1279519C2

ARM

- pivot, long

1шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

15

495-81153

WASHER,.469" x 3/4" x .030"

- flat, 15/32 x 3/4 x 1/32 inch

1шт.

16

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

17

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

BEARING - ball

1шт.

18

1279478C1

BUSHING,9.65mm ID x 24mm OD x 13mm L

- spacer

2шт.

19

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

20

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

1277891C91

DISC

ASSEMBLY - covering

2шт.

21

1263938C1

DISC

- covering

1шт.

22

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

- ball

1шт.

22

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

23

149170C2

FLANGED BEARING

- bearing

1шт.

24

447-49

RIVET,FH, 1/4" x 9/16"

- flat head, 1/4 x 9/16 inch

6шт.

25

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

26

231-41310

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

2шт.

29

492709R2

CAP

- bearing

2шт.

81475C1

WHEEL ASSY

WHEEL ASSEMBLY - press, not available, order components below

1шт.

30

149148C1

RIM

- press wheel

2шт.

31

140393C91

BALL BEARING,0.7465" ID x 1.5" OD x 2.5"

- ball

1шт.

32

90854C1

TYRE/TIRE

TIRE - press wheel, single rib

1шт.

33

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

35

413-8152

BOLT,Hex, 1/2" - 13 x 9-1/2", Gr 5

- hex, 1/2 NC x 9-1/2 inch

1шт.

36

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

37

149221C1

SPACER

- press wheel

2шт.

Выбрано товаров: 39
