Запчасти Case IH 955 (4-08) - SEED FLOW II MONITOR SYSTEM (04) - ELECTRICAL SYSTEMS

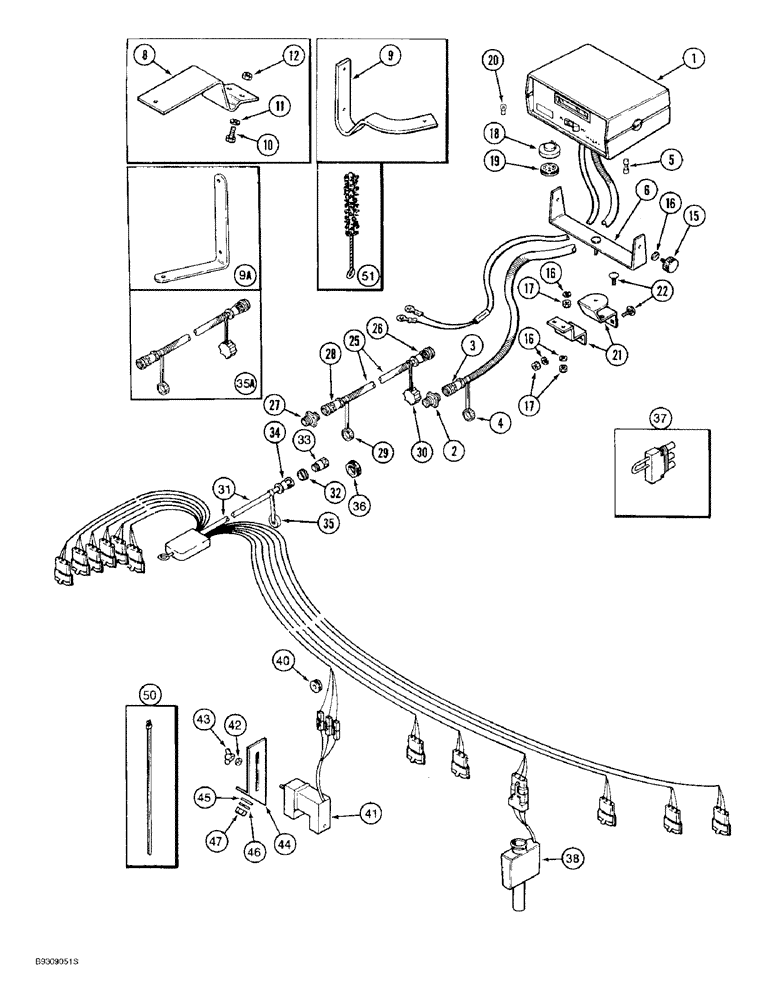

Схема запчастей Case IH 955 - (4-08) - SEED FLOW II MONITOR SYSTEM (04) - ELECTRICAL SYSTEMS
27
40
34
26
21
16
36
25
12
9a
22
37
17
46
9
35
32
31
11
41
10
42
18
3
1
2
44
16
5
33
4
45
20
50
30
8
43
35a
6
19
28
15
17
47
29
51
38
16

Артикул

Название

Примечание

Количество

1

245821C92

CONTROL MONITOR

MONITOR - Seed Flow II

1шт.

1

126420A1R

REMAN-ELECT MONITOR

Reman Monitor Remanufactured Instrument Cluster

1шт.

1

126420A1C

CORE-MONITOR

Return Number, Monitor

1шт.

2

225138C1

CONNECTOR, ELEC

CONNECTOR CONNECTOR - electrical, type GV

1шт.

Part of harness repair kit ZJI1400009 or can be ordered through Ship Direct Central.

1шт.

3

245491C1

ELEC CONNECTOR

CONNECTOR - electrical, type GJ

1шт.

Part of harness repair kit ZJI1400009 or can be ordered through Ship Direct Central.

1шт.

4

225163C1

ELEC CONNECTOR

CAP - electrical connector, type GF

1шт.

Part of harness repair kit ZJI1400009 or can be ordered through Ship Direct Central.

1шт.

5

223-38

FUSE,3 Amp, Type 3AG

FUSE - 3AG, 3 ampere

1-2шт.

6

1261523C91

BRACKET

BRACKET - mounting, 12 row only

1шт.

8

90905C2

BRACKET, SUPPORTING

BRACKET - mounting, J I Case Tractor

1шт.

9

1960456C1

BRACKET

BRACKET - mounting, 5100, 5200, 7100 and 7200 series tractors

1шт.

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

BOLT - hex, 1/4 NC x 2-3/4 inch

2шт.

495-21031

WASHER,1/4"

WASHER - flat, 5/16 x 3/4 x 1/16 inch

2шт.

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

9a

60-6821T1

SUPPORT

BRACKET - mounting, monitor (9200 Series Tractors)

1шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT - hex, 5/16 NC x 1 inch

2шт.

11

28588R1

WASHER

WASHER - flat, 11/32 x 11/16 x 3/64 inch

2шт.

12

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

15

1261524C91

REPAIR KIT

KIT - knob, bracket (Includes 2 knobs and 3 washers)

1шт.

16

392-11031

LOCK WASHER,5/16"

5/16"

1шт.

17

325-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC, hex, 5/16 inch NC

1шт.

18

1261548C1

ALARM

ALARM - monitor

1шт.

19

1261549C1

DAMPER

DAMPER - alarm

1шт.

20

58554C1

BULB,C2F, #1892, 14V

BULB - lamp, No. 1892

1шт.

21

1261522C91

BRACKET, SUPPORTING

KIT - bracket, mounting (88 Series Tractors)

1шт.

22

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

25

133896C94

HARNESS

CABLE - extension, 180 inch (4572 mm) long

1шт.

Used with large four-wheel drive tractor or when planter is mounted behind coulter cart.

1шт.

26

245490C1

ELEC CONNECTOR,Female, 37 Pin

CONNECTOR - electrical, type GA

1шт.

Part of harness repair kit ZJI1400009 or can be ordered through Ship Direct Central.

1шт.

27

225138C1

CONNECTOR, ELEC

CONNECTOR CONNECTOR - electrical, type GV

1шт.

Part of harness repair kit ZJI1400009 or can be ordered through Ship Direct Central.

1шт.

28

245491C1

ELEC CONNECTOR

CONNECTOR - electrical, type GJ

1шт.

Part of harness repair kit ZJI1400009 or can be ordered through Ship Direct Central.

1шт.

29

225163C1

ELEC CONNECTOR

CAP - electrical connector, type GF

1шт.

Part of harness repair kit ZJI1400009 or can be ordered through Ship Direct Central.

1шт.

30

225341C1

CONTACT HOUSING,Male

CAP - electrical connector, type MF

1шт.

Part of harness repair kit ZJI1400009 or can be ordered through Ship Direct Central.

1шт.

31

245403C2

HARNESS

HARNESS - monitor, 6 row narrow and 6 row wide rigid

1шт.

31

255183A1

HARNESS

HARNESS - monitor, 8 row narrow and 8 row wide rigid, 8 row wide vertical fold and 8 row with 22 inch row spacing

1шт.

31

1995708C1

HARNESS

HARNESS - monitor, 12 row narrow vertical fold, 12 row narrow rigid and 12 row with 22 inch row spacing

1шт.

31

138930A1

HARNESS

HARNESS - monitor, 6/11 row solid row crop

1шт.

31

138931A1

HARNESS

HARNESS - monitor, 8/15 row solid row crop

1шт.

32

245490C1

ELEC CONNECTOR,Female, 37 Pin

CONNECTOR - electrical, type GA

1шт.

Part of harness repair kit ZJI1400009 or can be ordered through Ship Direct Central.

1шт.

33

225338C1

ELEC CONNECTOR,Male, Pin

CONNECTOR - electrical, type MB (not used with item 31, 245403C2)

1шт.

Part of harness repair kit ZJI1400009 or can be ordered through Ship Direct Central.

1шт.

34

245491C1

ELEC CONNECTOR

CONNECTOR - electrical, type GJ

1шт.

Part of harness repair kit ZJI1400009 or can be ordered through Ship Direct Central.

1шт.

35

225341C1

CONTACT HOUSING,Male

CAP - electrical connector, type MF

1шт.

Part of harness repair kit ZJI1400009 or can be ordered through Ship Direct Central.

1шт.

35a

142717A1

ADAPTER

HARNESS - adapter, used when converting from 11 row solid row crop to 6 row with 30 inch row spacing

1шт.

35a

142718A1

ADAPTER

HARNESS - adapter, used when converting from 15 row solid row crop to 8 row with 30 inch row spacing

1шт.

36

149459C91

SEAL PACKAGE

KIT - ring, coupling, set of 10

1шт.

37

245617C1

CONNECTOR,ELECTRIC

CABLE - shorting

2шт.

38

245598C2

SENSOR

SENSOR - seed

1шт.

38a

245746C1

HARNESS

HARNESS - sensor adapter, not shown

1шт.

40

1279331C1

GROMMET

GROMMET - rubber, wiring

1шт.

41

245606C2

SENSOR

SENSOR - hopper, seed level

1шт.

41a

245749C1

HARNESS

ADAPTER - hopper level sensor harness, not shown

1шт.

42

495-81124

WASHER,0.38" ID x 0.75" OD x 0.06" Thk

WASHER - flat, 3/8 x 3/4 x 1/16 inch

1шт.

43

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

1шт.

44

113432C1

BRACKET

BRACKET - hopper sensor

1шт.

45

495-81120

WASHER,.344" x 1 1/4" x .120"

WASHER - flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

46

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

47

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

50

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP - tie, 7 inch, Retaining

1шт.

50

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - tie, 14 inch, retaining

1шт.

51

128817C1

BRUSH, COMMUTATOR

BRUSH BRUSH - sensor cleaning

1шт.

ZJI1400009

KIT

KIT harness repair, Includes Ref. 2 - 4, 26 - 30 and 32 - 35

1шт.
