Запчасти Case IH 955 (9D-13A) - GAUGE WHEEL ASSEMBLY, WITH (1) NYLON DISC AND (1) STEEL WHEEL RIM (09) - CHASSIS/ATTACHMENTS

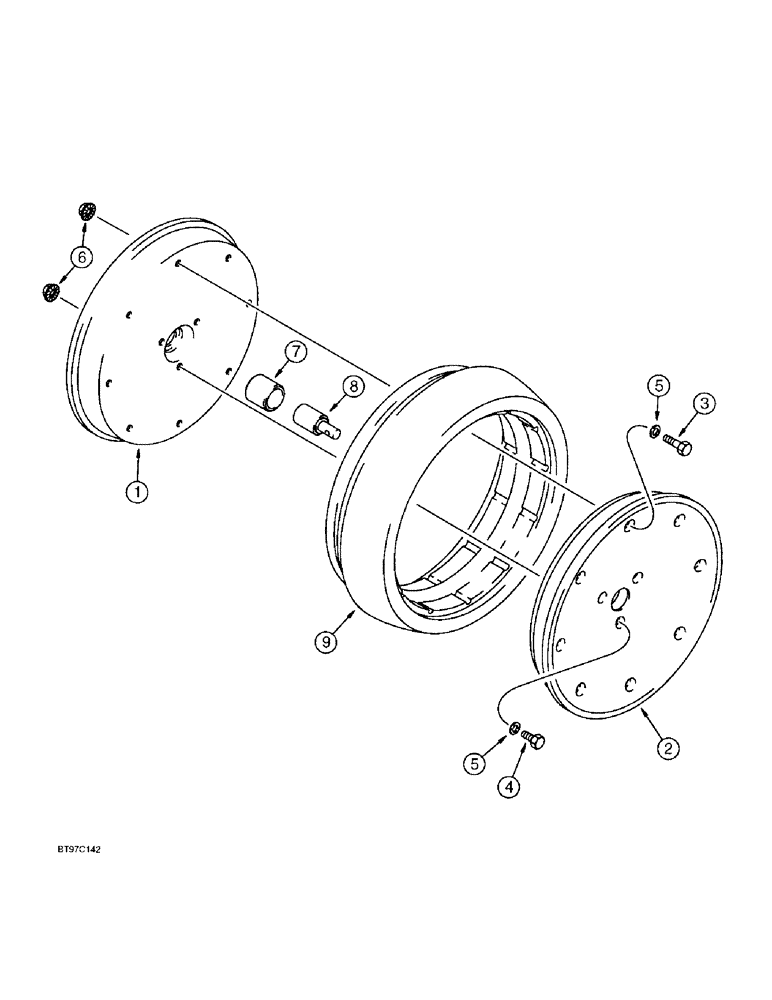

Схема запчастей Case IH 955 - (9D-13A) - GAUGE WHEEL ASSEMBLY, WITH (1) NYLON DISC AND (1) STEEL WHEEL RIM (09) - CHASSIS/ATTACHMENTS
6
5
8
2
4
1
9
7
5
3

Артикул

Название

Примечание

Количество

225349A1

WHEEL ASSY

WHEEL ASSEMBLY - gauge, 5 inch tire, with (1) nylon and (1) steel wheel rim

1шт.

1

249935A1

WHEEL

RIM - wheel, steel

1шт.

2

246676A1

RIM

DISC - wheel, nylon

1шт.

3

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

8шт.

4

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

11шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

11шт.

7

133966C1

BUSHING,29.94mm ID x 39.95mm OD x 39mm L

- bearing sleeve

1шт.

8

128558C91

BALL BEARING,30mm OD x 75mm L

- gauge wheel

1шт.

9

128633C1

TYRE/TIRE

TIRE - disc opener gauge wheel, 5 inch

1шт.

Выбрано товаров: 10
