Запчасти Case IH 955 (9D-06) - ROW UNIT FRAME, 6/11 ROW AND 8/15 ROW SOLID ROW CROP PLANTER (09) - CHASSIS/ATTACHMENTS

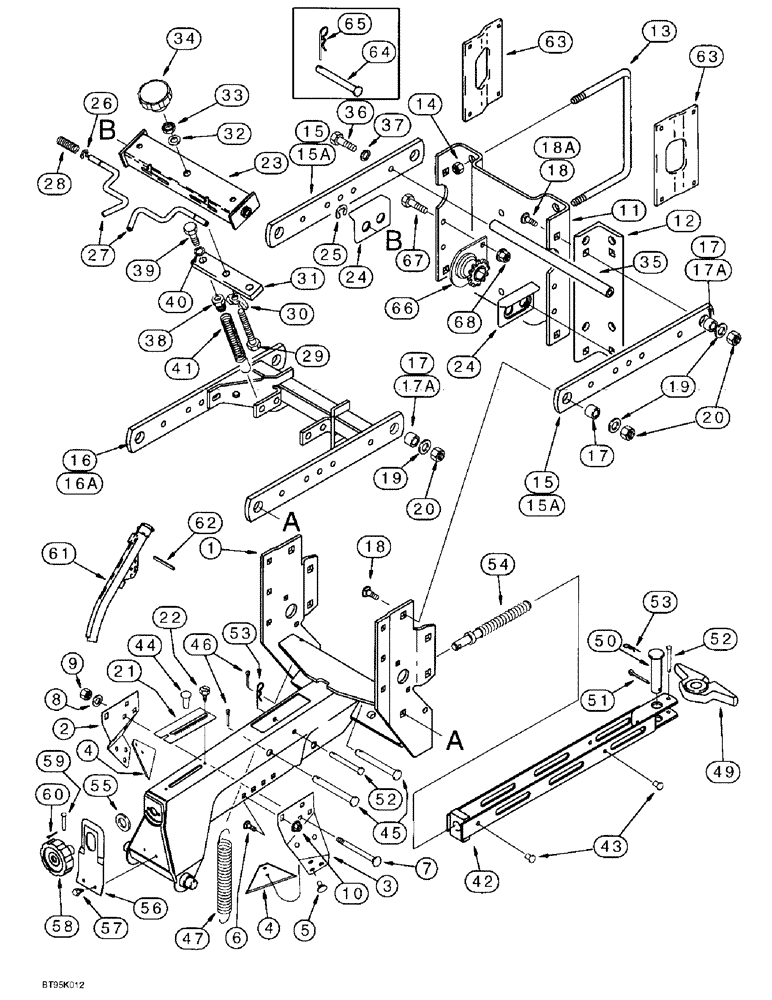

Схема запчастей Case IH 955 - (9D-06) - ROW UNIT FRAME, 6/11 ROW AND 8/15 ROW SOLID ROW CROP PLANTER (09) - CHASSIS/ATTACHMENTS
38
41
14
62
17
15a
60
19
19
4
1
40
9
68
37
63
53
17a
33
13
50
21
35
36
16a
42
18a
23
4
44
18
63
2
a
59
56
52
51
27
10
7
18
26
45
15
58
11
15
53
16
39
24
3
61
12
49
30
57
6
34
52
17a
32
31
17
8
29
54
66
5
65
24
15a
46
20
20
43
28
64
22
47
25
55
67

Артикул

Название

Примечание

Количество

1

1547308C2

FRAME ASSY

FRAME - planter unit

1шт.

2

147436C94

SCRAPER

ASSEMBLY - disc, left-hand

1шт.

3

1978897C2

SCRAPER

ASSEMBLY - disc, right-hand

1шт.

4

147438C2

HALF BLADE

BLADE - scraper

1шт.

5

147274C1

RIVET,4.78mm OD x 10mm L

- special, 3/16 x 3/8 inch

2шт.

6

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

BOLT - carriage, 5/16 NC x 5/8 inch

4шт.

7

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

BOLT - carriage, 5/16 NC x 2-1/2 inch

1шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

9

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

11

141728C2

ANGLE

SUPPORT - head bracket, linkage, Serial Range: mounting-frame

1шт.

12

127475A2

ANGLE

- mounting, extension, used at drive wheel and module frame mounting location with extended linkage, planters built, Serial Range: prior-1997

2шт.

13

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

2шт.

14

425-1010

NUT,5/8"-11, G5

4шт.

15

137507C3

BAR

BRACKET - linkage, upper, standard

2шт.

15a

1254306C3

LINK

BRACKET - linkage, upper, extended, not shown

2шт.

16

147354C2

SUPPORT

- linkage, lower, standard

1шт.

16a

123145A2

SUPPORT

- linkage, lower, extended, not shown

1шт.

17

137512C3

BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L

- 13.5 x 22.2 x 13.5 mm, standard and extended

4-8шт.

17a

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

- linkage pivot, extended

4шт.

18

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch, Used with standard and extended linkage

4-8шт.

18a

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch, used with extended linkage

4шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

8шт.

20

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

8шт.

21

147326C2

GAUGE

- depth

1шт.

22

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

2шт.

23

141145A1

CHANNEL

SUPPORT - spring mounting

1шт.

24

181297A1

BRACKET

- spring guide

2шт.

25

100-3375

SNAP RING,#75, .574" Dia, E-Type

Ring, Retaining, #75, .574" Dia, E-Type

2шт.

26

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, #37, .300" Dia, E-Type

2шт.

27

141154A1

LEVER

- quick adjustment

2шт.

28

376768R1

SPRING

- adjustment

2шт.

29

113-2298

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5, Full Thd

- hex, full threads, 1/2 NC x 5-1/2 inch

1шт.

30

129-400

WING NUT,1/2"-13

NUT - wing, 1/2 inch NC, 1/2 inch NC

1шт.

31

141156A1

PLATE

- spring adjustment

1шт.

32

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

33

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

34

H239004

KNOB

- adjusting

1шт.

35

183502A1

SPACER

- bracket, upper

1шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

37

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

38

144847C1

PLUG

- spring

2шт.

39

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

40

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

41

140579C1

SPRING

- linkage

2шт.

42

147276C4

BAR

- tension

1шт.

43

147483C1

PLUG

- button, tension bar, if used

4шт.

44

1277597C1

STUD

- barbed, No. 12 x 3/4 inch

1шт.

45

439-5844

HEADED PIN,1/2" x 2 3/4", G5

PIN - headed, 1/2 x 2-3/4 inch

2шт.

46

432-1216

COTTER PIN,3/16" x 1"

2шт.

47

147425C5

SPRING

- press wheel

1шт.

49

1279508C1

BRACKET

- wobble

1шт.

50

427-12179

CLEVIS PIN,3/4" x 1.796"

PIN - clevis, 3/4 x 1-13/16 inch, hardened

1шт.

51

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

52

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

PIN - pointed, 1/4 x 2-3/4 inch

2шт.

53

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

54

1279684C1

ROD

- depth adjusting

1шт.

55

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

1шт.

56

1279107C1

STRAP

COVER - detent

1шт.

57

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

2шт.

58

1279740C91

KNOB

- detent, depth adjusting

1шт.

59

439-5420

HEADED PIN,1/4" x 1 1/4", G5

PIN - headed, 1/4 x 1-1/4 inch

1шт.

60

432-88

COTTER PIN,1/8" x 1/2"

PIN, SPLIT (COTTER), 1/8" x 1/2"

1шт.

61

1986373C1

TUBE

DIFFUSER - air, bottom

1шт.

62

38-11622

LOCK PIN,1/4" x 1 3/8", Slotted

Pin, 1/4" x 1 3/8", Slotted

1шт.

63

130033A2

EXTENSION

- head bracket, 2 used per extended row unit

1шт.

64

439-1620

HEADED PIN,3/8" x 1 1/4", G2

PIN - headed, 3/8 x 1-1/4 inch, grade 2, 2 used per row unit for lockup position

1шт.

65

544063R1

HAIR PIN COTTER

PIN - cotter, hair, 3/32 inch

1шт.

66

103579A1

BEARING ASSY,0.894" ID x 3.62" OD x 1.875"

- bearing, standard, 12 teeth, standard row unit linkage

1шт.

67

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

68

231-5146

FLANGE NUT,3/8"-16

2шт.

Выбрано товаров: 71
