Запчасти Case IH 955 (9C-40) - PLATE PLANTING UNIT, SEED GROWERS SPECIAL (09) - CHASSIS/ATTACHMENTS

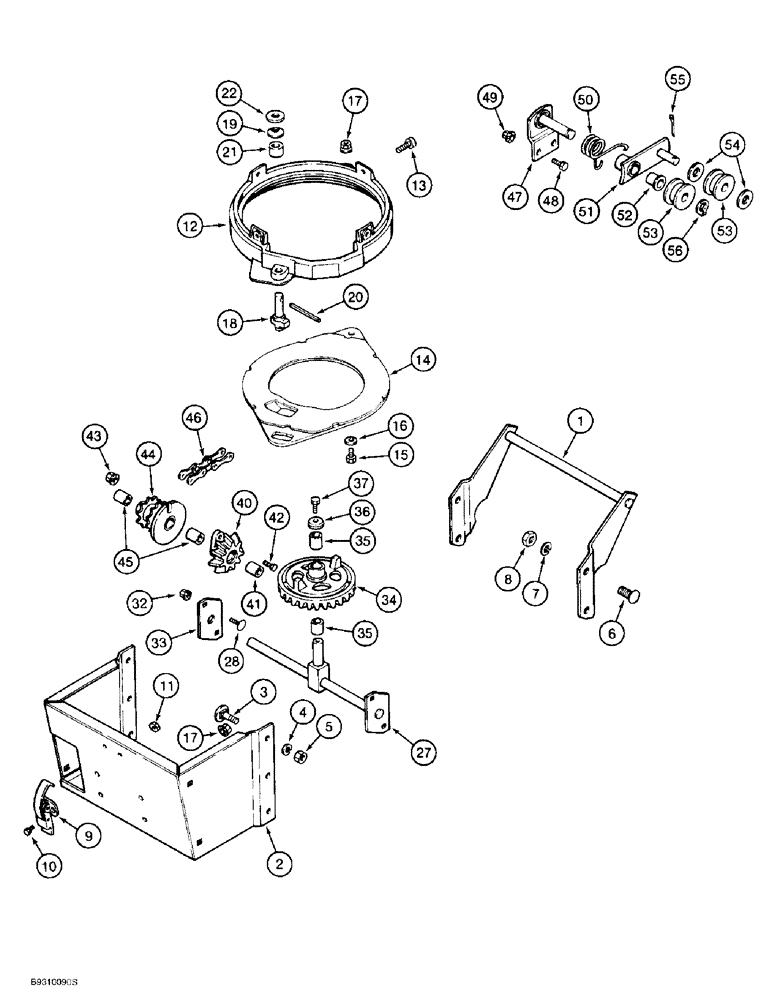

Схема запчастей Case IH 955 - (9C-40) - PLATE PLANTING UNIT, SEED GROWERS SPECIAL (09) - CHASSIS/ATTACHMENTS
46
16
37
44
13
2
15
7
3
49
43
10
19
14
35
22
47
56
4
50
18
54
36
55
41
42
53
53
17
35
12
21
52
45
48
6
5
51
20
33
1
32
9
27
34
11
28
8
17
40

Артикул

Название

Примечание

Количество

1

1279963C1

SUPPORT

- seed hopper

1шт.

2

1279964C2

SUPPORT ASSY.

SUPPORT - plate unit

1шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

6шт.

4

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

425-106

NUT,3/8"-16, Cl 5

6шт.

6

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

9

1333780C1

LATCH

- hinge, retaining

1шт.

10

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex head, No. 10 NC x 1/2 inch

2шт.

11

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

12

134343C1

RING

- hopper bottom

1шт.

13

1338233C1

SERRATED SCREW,Cross Rec Truss Hd, 5/16" - 18 x 1"

4шт.

14

1344847C1

LARGE PLATE

PLATE - hopper bottom

1шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

17

147275C1

NUT

- hex flange, self-locking, 3/8 inch NC

1шт.

18

147216C2

PIN

- locating

1шт.

19

1333763C1

SPRING WASHER

- special, spring

1шт.

20

438-11240

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, 3/16" x 2 1/2", Slotted

1шт.

21

1344850C1

SPACER

- hopper bottom latch

1шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

27

140785C4

SHAFT

- ring gear

1шт.

28

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

495-81177

WASHER,21/32" x 1" x .030"

- flat, 21/32 x 1 x 1/32 inch, not shown

1шт.

495-81176

WASHER,21/32" x 1" x .060"

- flat, 21/32 x 1 x 3/64 inch, not shown

4шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

33

140788C1

PLATE ASSY.

PLATE - shaft support

1шт.

34

140927C2

GEAR

ASSEMBLY - ring

1шт.

35

140904C1

BUSHING,15.88mm ID x mm OD x 19.05mm L

BUSHING - ring gear

2шт.

36

136975C2

WASHER

- special, bottom centering

1шт.

37

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

40

140907C1

GEAR

ASSEMBLY - drive pinion

1шт.

41

140904C1

BUSHING,15.88mm ID x mm OD x 19.05mm L

BUSHING - pinion gear

1шт.

42

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - carriage, 1/4 NC x 3/4 inch

1шт.

43

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

47

1277838C1

LEVER

ARM - tightener

1шт.

44

1279285C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - 12 teeth

1шт.

45

140904C1

BUSHING,15.88mm ID x mm OD x 19.05mm L

BUSHING - sprocket

2шт.

46

141668C91

CHAIN (AG)

CHAIN ASSEMBLY - drive, use 61 links from 475879R91 bulk chain, plus (1) 241-2314 connecting link, see below

1шт.

47

1277838C1

LEVER

ARM - tightener

1шт.

49

231-5146

FLANGE NUT,3/8"-16

2шт.

50

1277854C1

SPRING

- idler

1шт.

51

1277658C1

LEVER

IDLER - arm

1шт.

51

1277658C1

LEVER

IDLER - arm

1шт.

52

1277785C1

BUSHING,15.9mm ID x 17.45mm OD x 28.57mm L

- idler

1шт.

53

1277653C1

IDLER

ROLLER - idler

2шт.

54

95-81120

WASHER,0.66" ID x 1.25" OD x 0.06" Thk

- flat, 21/32 x 1-1/4 x 1/16 inch

2шт.

55

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

56

100-1662

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

475879R91

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

48

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.

241-2314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

Выбрано товаров: 53
