Запчасти Case IH 955 (9C-35A) - SEED DELIVERY TUBE, 8 ROW AND 12 ROW WITH 22 INCH ROW SPACING, SUGAR BEET (09) - CHASSIS/ATTACHMENTS

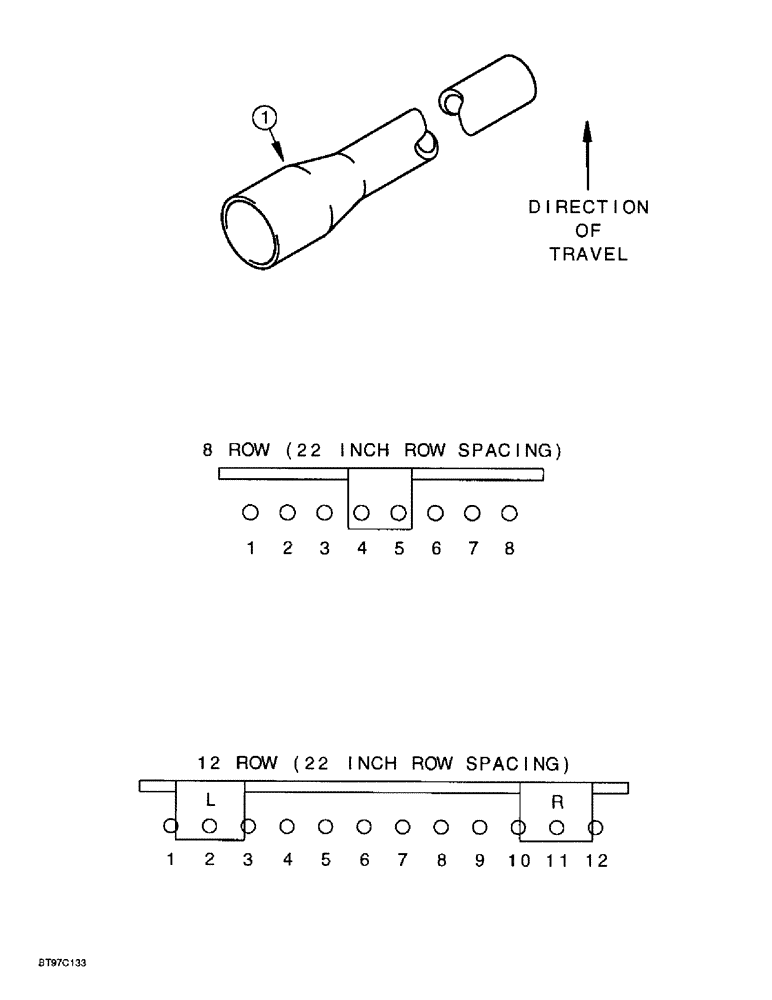

Схема запчастей Case IH 955 - (9C-35A) - SEED DELIVERY TUBE, 8 ROW AND 12 ROW WITH 22 INCH ROW SPACING, SUGAR BEET (09) - CHASSIS/ATTACHMENTS
1

Артикул

Название

Примечание

Количество

1

58238C2

TUBE

- seed delivery, flared end, soft, 58 inch long

1шт.

1

130979A2

TUBE,17.45 - 28.5 mm OD, 4950 mm Length

- seed delivery, flared end, rigid, 195 inch long

1шт.

141329C2

TUBE,17.5 - 25.4 mm OD, 2690 mm Length

- seed delivery, 106 inch, No. 1, order 130979A2, 8 row (22 inch row spacing)

1шт.

1337529C1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84 inch, No. 2, order 130979A2, 8 row (22 inch row spacing)

1шт.

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 3, order 130979A2, 8 row (22 inch row spacing)

1шт.

258751A1

TUBE,17.45 - 28.5 mm OD, 1220 mm Length

- seed delivery, 48 inch, No. 4, order 58238C2, 8 row (22 inch row spacing)

1шт.

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 5, order 58238C2, 8 row (22 inch row spacing)

1шт.

1337523C1

TUBE,17.45 - 28.5 mm OD, 1430 mm Length

- seed delivery, 56 inch, No. 6, order 58238C2, 8 row (22 inch row spacing)

1шт.

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 7, order 130979A2, 8 row (22 inch row spacing)

1шт.

1279792C1

TUBE,17.45 - 28.5 mm OD, 2560 mm Length

- seed delivery, 101 inch, No. 8, order 130979A2, 8 row (22 inch row spacing)

1шт.

1337523C1

TUBE,17.45 - 28.5 mm OD, 1430 mm Length

- seed delivery, 56 inch, No. 1, order 58238C2, 12 row (22 inch row spacing)

1шт.

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 2, order 58238C2, 12 row (22 inch row spacing)

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 3, order 58238C2, 12 row (22 inch row spacing)

1шт.

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 4, order 130979A2, 12 row (22 inch row spacing)

1шт.

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 5, order 130979A2, 12 row (22 inch row spacing)

1шт.

141329C2

TUBE,17.5 - 25.4 mm OD, 2690 mm Length

- seed delivery, 106 inch, No. 6, order 130979A2, 12 row (22 inch row spacing)

1шт.

1279792C1

TUBE,17.45 - 28.5 mm OD, 2560 mm Length

- seed delivery, 101 inch, No. 7, order 130979A2, 12 row (22 inch row spacing)

1шт.

1337529C1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84 inch, No. 8, order 130979A2, 12 row (22 inch row spacing)

1шт.

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 9, order 130979A2, 12 row (22 inch row spacing)

1шт.

1254367C1

TUBE - seed delivery, 47 inch, No. 10, order 58238C2, 12 row (22 inch row spacing)

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 11, order 58238C2, 12 row (22 inch row spacing)

1шт.

1337520C1

TUBE,17.45 - 28.5 mm OD, 1065 mm Length

- seed deiivery, 42 inch, No. 12, order 58238C2, 12 row (22 inch row spacing)

1шт.

Выбрано товаров: 22
