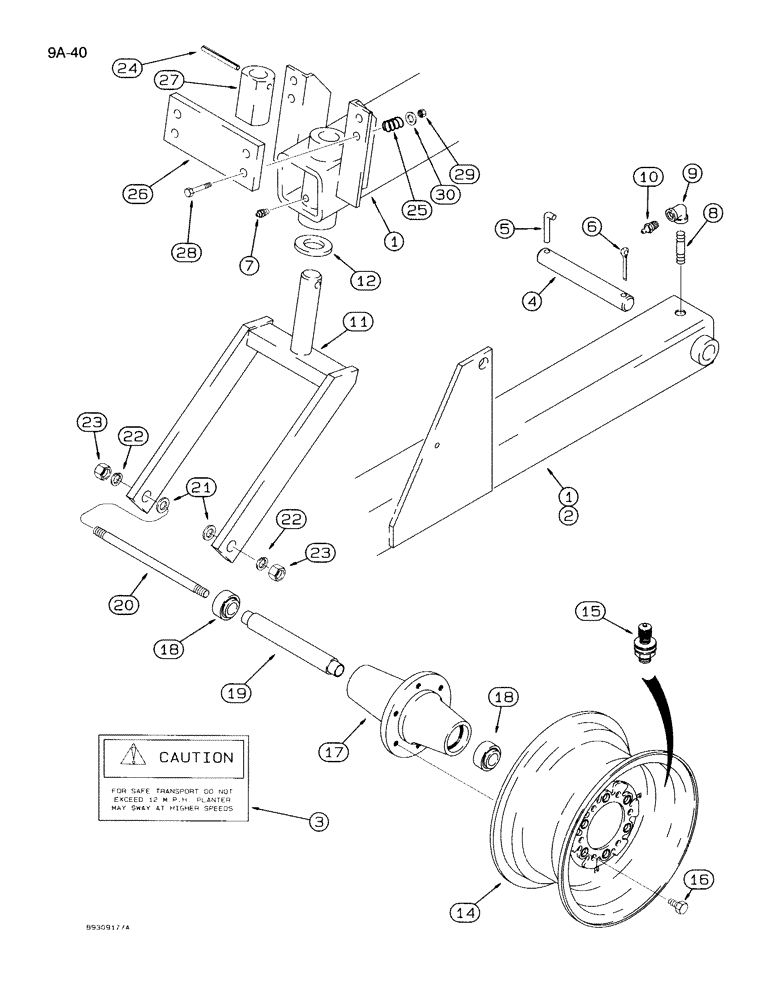

Запчасти Case IH 950 (9A-40) - ASSIST WHEELS, 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

110748A3

TUBE

ARM - assist wheel, right-hand, includes 1264465C1 decal

1шт.

2

110749A3

TUBE

ARM - assist wheel, left-hand, includes 1264465C1 decal (not shown)

1шт.

3

1264465C1

PRODUCT GRAPHIC

DECAL - Caution, safe transport

1шт.

4

1250685C2

PIN,38.1mm OD x 264mm L

- assist wheel attaching

2шт.

5

491601R3

PIN

- pivot lock

2шт.

6

432-3232

COTTER PIN,1/2" x 2"

Pin, Split (Cotter), 1/2" x 2"

2шт.

7

219-406

LUBE NIPPLE,3/16" NPTF

FITTING - grease, drive type 3/16 inch

2шт.

8

221-1109

PIPE,Nipple, 1/8" NPT x 2"

NIPPLE - 1/8 PT x 2 inch

2шт.

9

105412

ELBOW,90 Degree, 1/8" NPT

- 90 degree, 1/8 PT

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

11

137873A1

ARM ASSY.

ARM - assist wheel pivot

2шт.

12

462997R2

WASHER

- wear

2шт.

14

481344R91

WHEEL

- steel (For 9.5-14 tire)

2шт.

15

810768C1

VALVE

- tubeless tire inflation, steel

2шт.

16

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

12шт.

17

541757R1

HUB

- wheel

2шт.

18

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

BEARING - wheel hub

4шт.

19

541758R1

TUBE

SLEEVE - wheel hub

2шт.

20

541759R3

ROD

- axle

2шт.

21

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

4шт.

22

492-11100

LOCK WASHER,1"

1"

4шт.

23

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

24

438-32448

PIN,3/8" x 3", Coiled

2шт.

25

137969A1

SPRING

- assist wheel detent

8шт.

26

137881A1

BAR

- cam follower

2шт.

27

137880A1

CAM

- snubber

2шт.

28

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

29

231-41410

NUT,5/8"-11, GB

NUT - hex, 5/8 inch NC, grade 8

8шт.

30

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

8шт.
