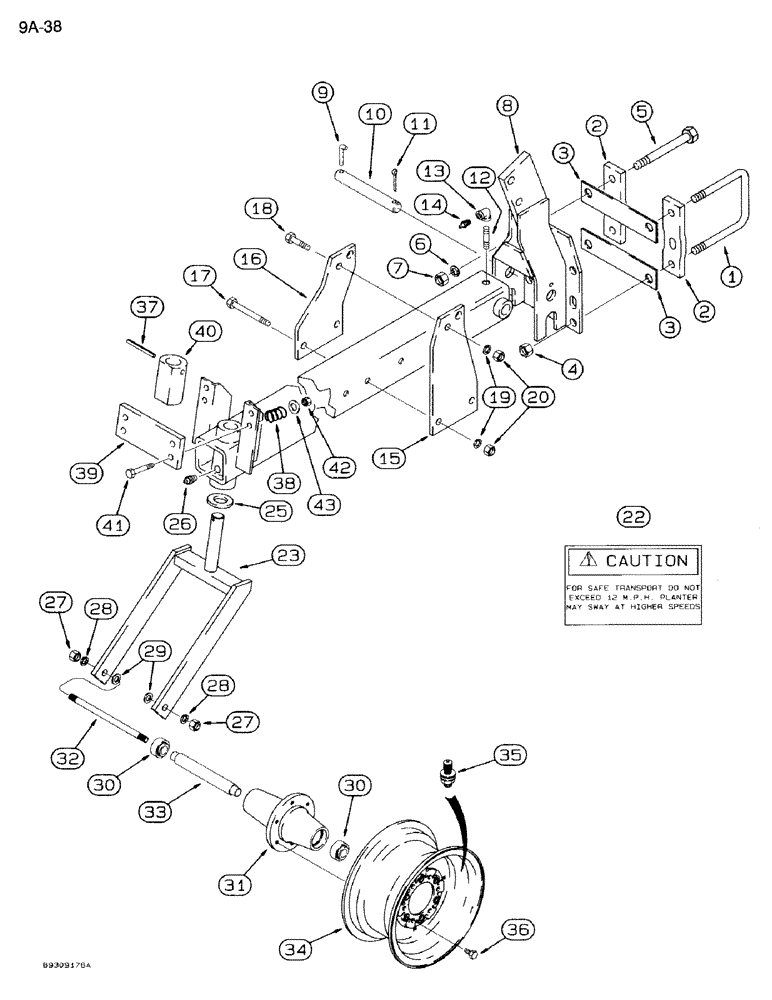

Запчасти Case IH 950 (9A-38) - ASSIST WHEELS, 8 ROW WIDE, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

58152C2

U-BOLT,U, 1" - 8 x 231mm

- 1 inch NC

2шт.

2

125515C1

SUPPORT

- tool bar

2шт.

3

125706C1

BAR

- filler

4шт.

4

429-1016

NUT,1"-8, G8

- hex, 1 inch NC, grade 8

4шт.

5

413-16160

BOLT,Hex, 1" - 8 x 10", Gr 5

- hex, 1 NC x 10 inch

4шт.

6

492-11100

LOCK WASHER,1"

1"

4шт.

7

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

8

133904A1

BRACKET

- assist wheel pivot

2шт.

9

491601R3

PIN

- pivot lock

2шт.

10

100054C1

PIN

- assist wheel mounting arm

2шт.

11

432-3232

COTTER PIN,1/2" x 2"

Pin, Split (Cotter), 1/2" x 2"

2шт.

12

221-1109

PIPE,Nipple, 1/8" NPT x 2"

NIPPLE - pipe, 1/8 PT x 2 inch

2шт.

13

105412

ELBOW,90 Degree, 1/8" NPT

- pipe, 90 degree, 1/8 PT

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 inch PT short

2шт.

15

149558C2

SUPPORT

- cylinder anchor, right-hand

2шт.

16

149557C2

SUPPORT

- cylinder anchor, left-hand

2шт.

17

426-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

- hex, 3/4 NC x 7 inch, grade 8

4шт.

18

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

2шт.

19

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

20

425-1012

NUT,3/4"-10, G5

6шт.

21

1267964C94

TUBE,134 mm Length

ARM - assist wheel (Includes Ref 22)

2шт.

22

1264465C1

PRODUCT GRAPHIC

DECAL - caution, safe transport speed

1шт.

23

137873A1

ARM ASSY.

ARM - assist wheel pivot

2шт.

25

462997R2

WASHER

- wear

2шт.

26

219-406

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight drive

2шт.

27

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

28

492-11100

LOCK WASHER,1"

1"

4шт.

29

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

4шт.

30

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

BEARING - wheel hub

4шт.

31

541757R1

HUB

- wheel

2шт.

32

541759R3

ROD

- axle

2шт.

33

541758R1

TUBE

SPACER - axle rod

2шт.

34

481344R91

WHEEL

- steel (For 9.5L x 14 high flotation tire)

2шт.

35

810768C1

VALVE

- tubeless tire inflation, steel

2шт.

36

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

12шт.

37

438-32448

PIN,3/8" x 3", Coiled

2шт.

38

137969A1

SPRING

- assist wheel detent

8шт.

39

137881A1

BAR

- cam follower

2шт.

40

137880A1

CAM

- snubber

2шт.

41

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

42

231-41410

NUT,5/8"-11, GB

NUT - hex, 5/8 inch NC, grade 8

8шт.

43

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

8шт.
