(9A-30) - DRAWBAR SUPPORT, 12, 16, AND 24 ROW NARROW, FRONT FOLD

Запчасти Case IH 950 (9A-30) - DRAWBAR SUPPORT, 12, 16, AND 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

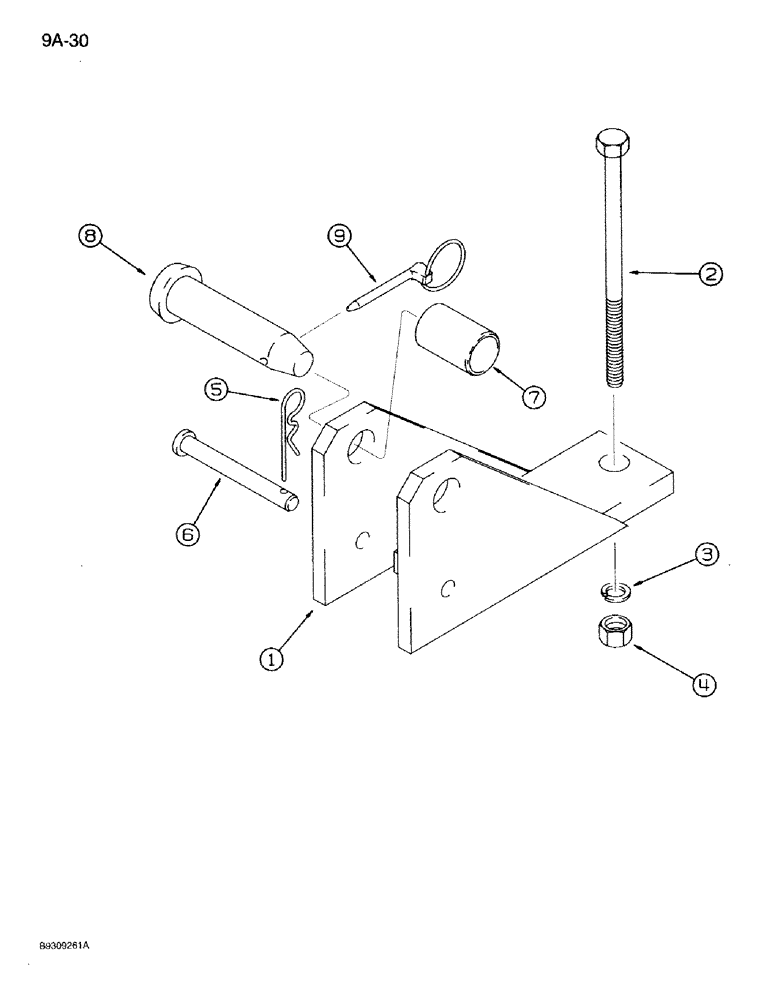

Схема запчастей Case IH 950 - (9A-30) - DRAWBAR SUPPORT, 12, 16, AND 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS
9
6
7
2
5
8
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

118601A2

SUPPORT

- drawbar

1шт.

2

326-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

- hex, 3/4 NC x 8-1/2 inch, grade 8

2шт.

3

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

4

425-1012

NUT,3/4"-10, G5

2шт.

5

486830R1

COTTER PIN

PIN - cotter, hair, 3/16 inch diameter

1шт.

6

21936R1

HEADED PIN,1/2" x 4 3/4"

PIN - headed, 1/2 x 4-3/4 inch

1шт.

7

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

- support

1шт.

8

374132R1

PIN

- link implement, Category II

1шт.

Ref #8A - K625980 Longer Pin 04/19/96

1шт.

9

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN - retaining

1шт.
