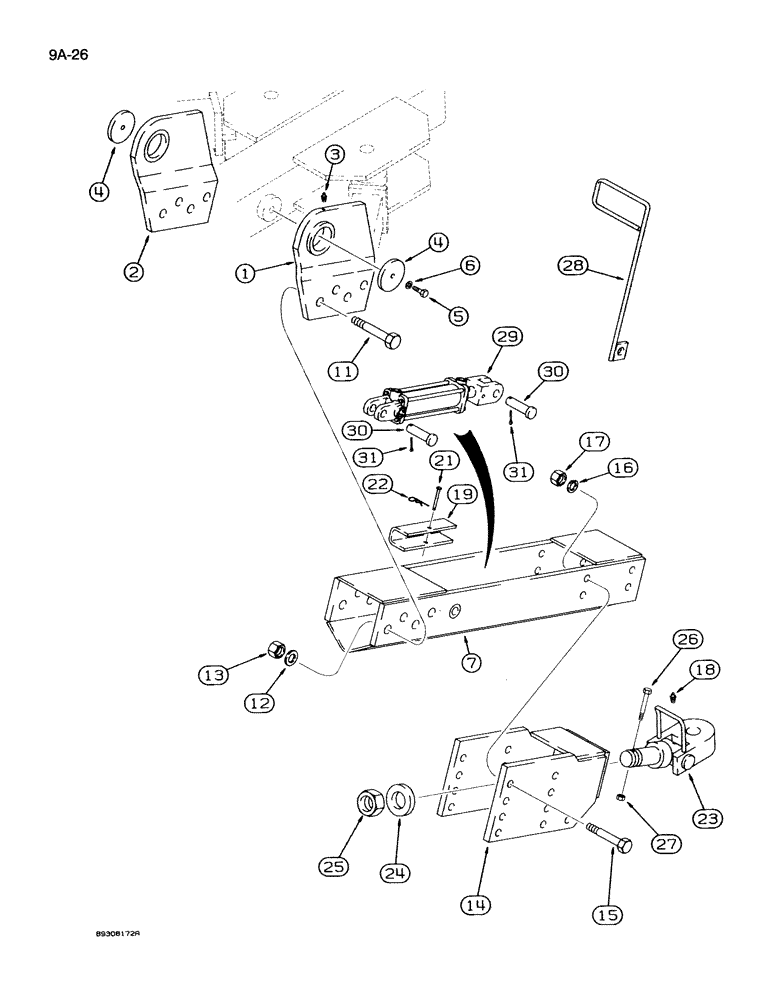

Запчасти Case IH 950 (9A-26) - LOWER TONGUE HITCH, 12 AND 16 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

133204A1

PLATE ASSY.

PLATE - tongue hitch pivot, right-hand

1шт.

2

133206A1

PLATE

- tongue hitch pivot, left-hand

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

2шт.

4

116050A1

WASHER

- retaining, hitch pivot plate

2шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

7

133207A1

HITCH ASSY

HITCH - lower tongue

1шт.

8

1254170C1

DECAL

- Caution, read the operator's manual, not shown, see page 9F-85, item 5

2шт.

9

1254230C1

DECAL,Warning To Prevent Personal Injury Cylinder Safety Stops

- Warning, to prevent personal injury, not shown, see page 9F-85. item 4

2шт.

10

129652A1

DECAL

- Warning, not shown, see page 9F-85, item 12

2шт.

11

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

8шт.

12

492-11100

LOCK WASHER,1"

1"

8шт.

13

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

8шт.

14

116086A1

BRACKET

- hitch, adjustable

1шт.

15

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

8шт.

16

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

17

425-1012

NUT,3/4"-10, G5

8шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

2шт.

19

119843A1

STOP

ASSEMBLY - tongue cylinder

1шт.

20

1254230C1

DECAL,Warning To Prevent Personal Injury Cylinder Safety Stops

- Warning, to prevent personal injury, not shown, see page 9F-85, item 4

1шт.

21

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - clevis, 5/16 x 2-3/4 inch

1шт.

22

544063R1

HAIR PIN COTTER

PIN - quick attach

1шт.

23

116047A2

CLEVIS

SWIVEL - hitch clevis

1шт.

24

116049A1

WASHER

- special

1шт.

25

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - heavy hex, slotted, 2 inch NC

1шт.

26

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

27

230-4116

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

1шт.

28

122955A1

GUIDE

BRACKET - hose

1шт.

29

1272147C91

CYLINDER

ASSEMBLY - hitch, 3-1/2 bore x 8 inch stroke, parts list page 8-101

1шт.

30

810751C1

PIN

- headed, 1 x 3-1/4 inch

2шт.

31

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.
