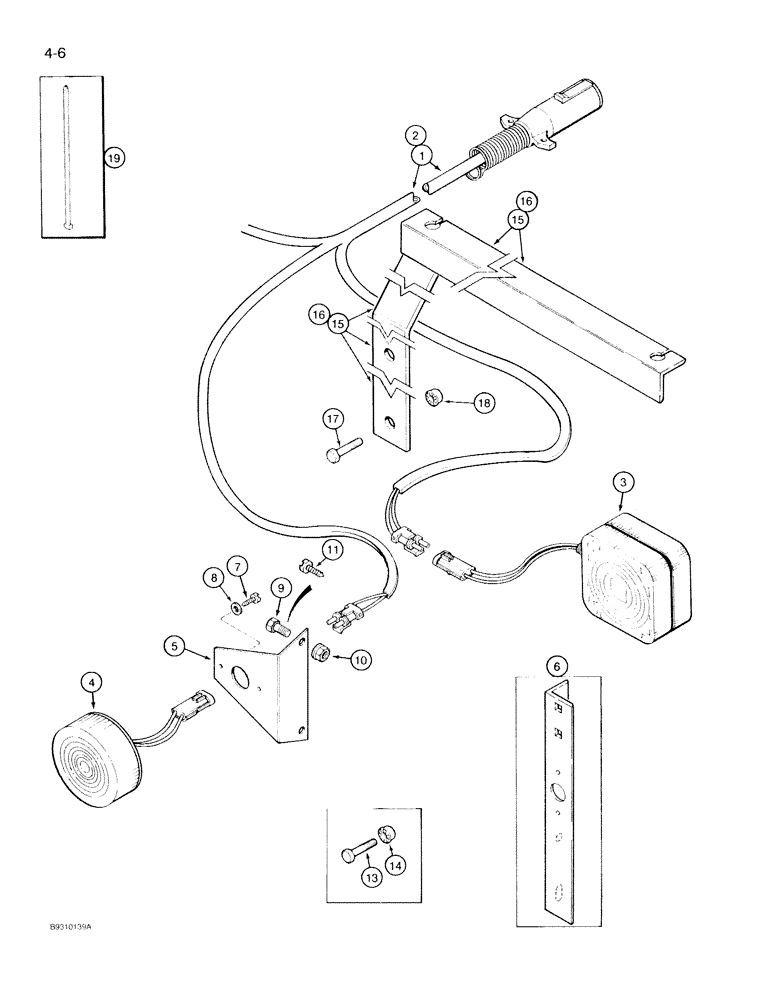

Запчасти Case IH 950 (4-06) - LIGHTING SYSTEM, 12, 16 AND 24 ROW NARROW, FRONT FOLD (04) - ELECTRICAL SYSTEMS

1

115512A3

HARNESS

- main (12 row narrow and 16 row narrow) (Shown)

1шт.

2

124085A1

HARNESS

- main (24 row narrow)

1шт.

3

91913C91

LIGHT

LAMP ASSEMBLY - warning/turn signal (Parts list page 4-9)

2шт.

4

91986C91

LIGHT

LAMP ASSEMBLY - tail (Parts list page 4-9)

1шт.

5

1333942C1

BRACKET

- tail lamp mounting (24 row narrow)

1шт.

6

116338A1

ANGLE

BRACKET - tail lamp and SMV mounting (12 row narrow and 16 row narrow)

1шт.

7

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, hex head, No. 10-16 x 5/8 inch

2шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

for SMV bracket mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

10

231-5146

FLANGE NUT,3/8"-16

for SMV bracket mounting Flg, USR, 3/8"-16

2шт.

11

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

- self-tapping, hex head, 5/16 NC x 13/16 inch

1шт.

for module mounting

2шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (12 row narrow and 16 row narrow)

2шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

(12 row narrow and 16 row narrow) Flg, USR, 1/2"-13

2шт.

15

119160A1

BRACKET

- light support, left-hand

1шт.

16

119159A1

BRACKET

- light support, right-hand

1шт.

17

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

19

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

10шт.
