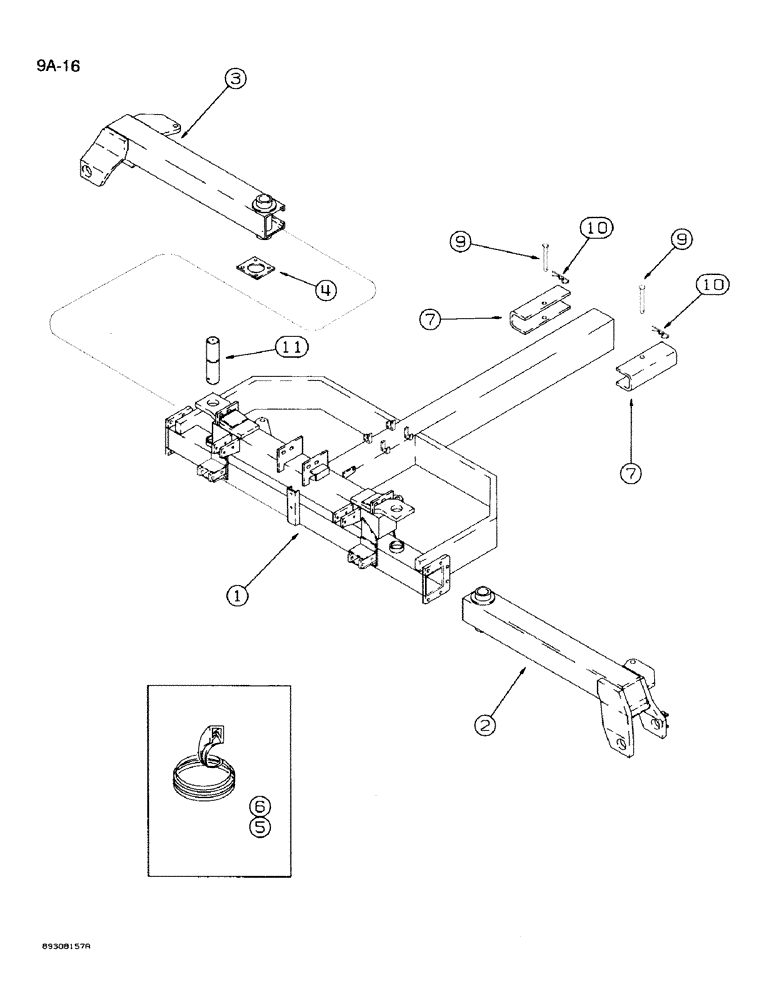

Запчасти Case IH 950 (9A-16) - CENTER MAIN FRAME, 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

123699A1

FRAME

- main, center

1шт.

2

123694A1

HINGE

- main frame, right-hand

1шт.

3

123695A1

HINGE

- main frame, left-hand

1шт.

4

118858A1

BEARING

- plastic

2шт.

5

118863A1

STRIP

TRIM - 1/2 inch thick edge

4шт.

6

118862A1

STRIP

TRIM - 3/8 inch thick edge

12шт.

7

119844A1

STOP

ASSEMBLY - wheel cylinder

4шт.

8

1254230C1

DECAL,Warning To Prevent Personal Injury Cylinder Safety Stops

- warning, to prevent personal injury, not shown (See page 9F-85, item 4)

1шт.

9

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - clevis, 5/16 x 2-3/4 inch

4шт.

10

544063R1

HAIR PIN COTTER

PIN - quick attach

4шт.

11

127846A1

PIN

- 3 x 15-11/16 inch, horizontal, pivot

2шт.
