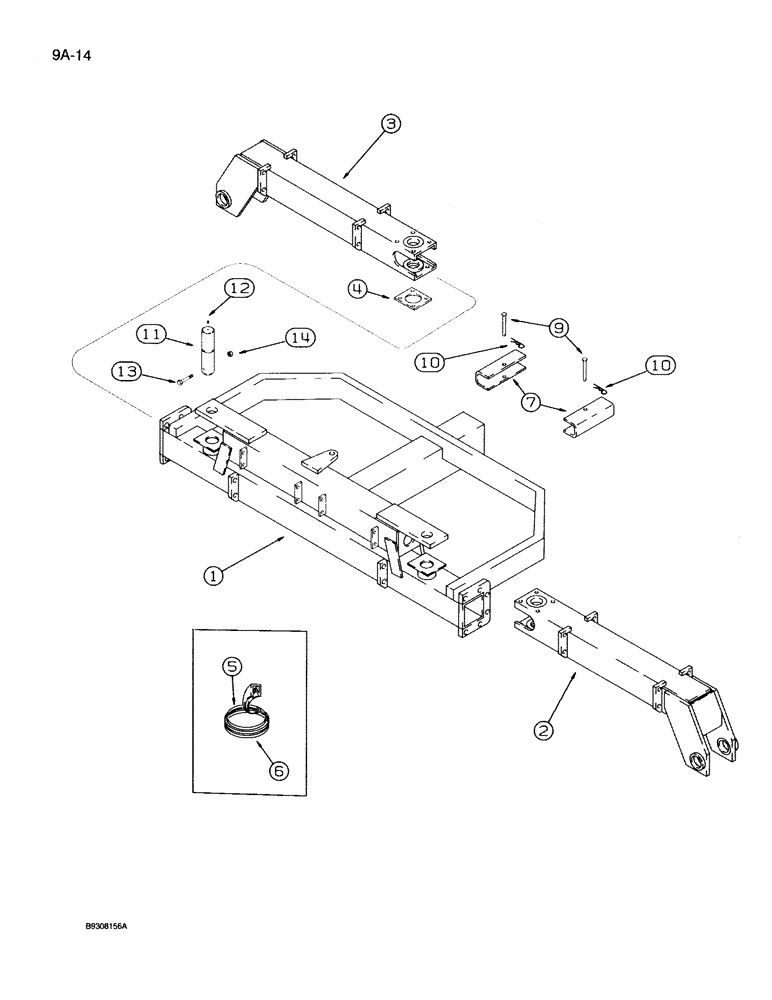

Запчасти Case IH 950 (9A-14) - CENTER MAIN FRAME, 12 AND 16 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

116062A2

FRAME

- main, center

1шт.

2

116082A1

HINGE

- main frame, right-hand

1шт.

3

116083A1

HINGE

- main frame, left-hand

1шт.

4

118858A1

BEARING

- plastic

2шт.

5

118863A1

STRIP

TRIM - 1/2 inch thick edge

4шт.

6

118862A1

STRIP

TRIM - 3/8 inch thick edge

10шт.

7

119844A1

STOP

ASSEMBLY - wheel cylinder

2-4шт.

8

1254230C1

DECAL,Warning To Prevent Personal Injury Cylinder Safety Stops

- Warning, not shown (See page 9F-85, item 4)

1шт.

9

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - clevis, 5/16 x 2-3/4 inch

2-4шт.

10

544063R1

HAIR PIN COTTER

PIN - quick attach

2-4шт.

11

116077A1

PIN

- pivot

2шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

2шт.

13

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

2шт.

14

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, prevailing torque, 1/2 inch NC

2шт.
