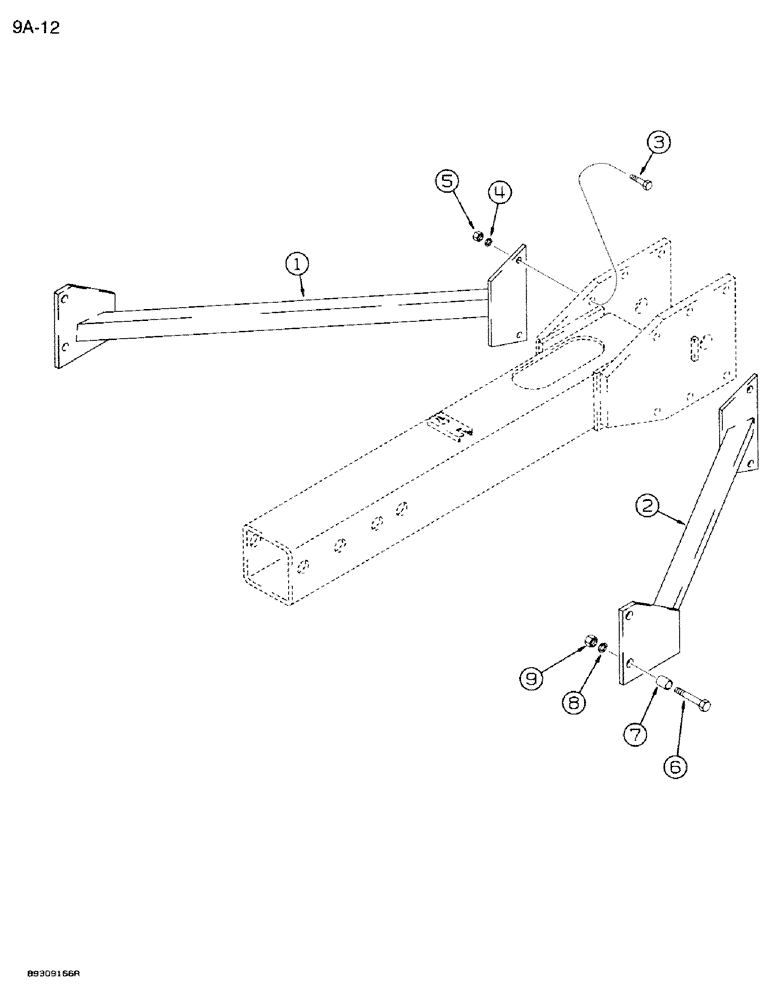

Запчасти Case IH 950 (9A-12) - HITCH BRACE, MODELS WITHOUT FERTILIZER ATTACHMENT, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

137858A1

BRACE

- hitch, left-hand

1шт.

2

137859A1

BRACE

- hitch, right-hand

1шт.

3

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

6

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

4шт.

7

110808A2

SPACER

- hitch

4шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

9

425-1012

NUT,3/4"-10, G5

4шт.
