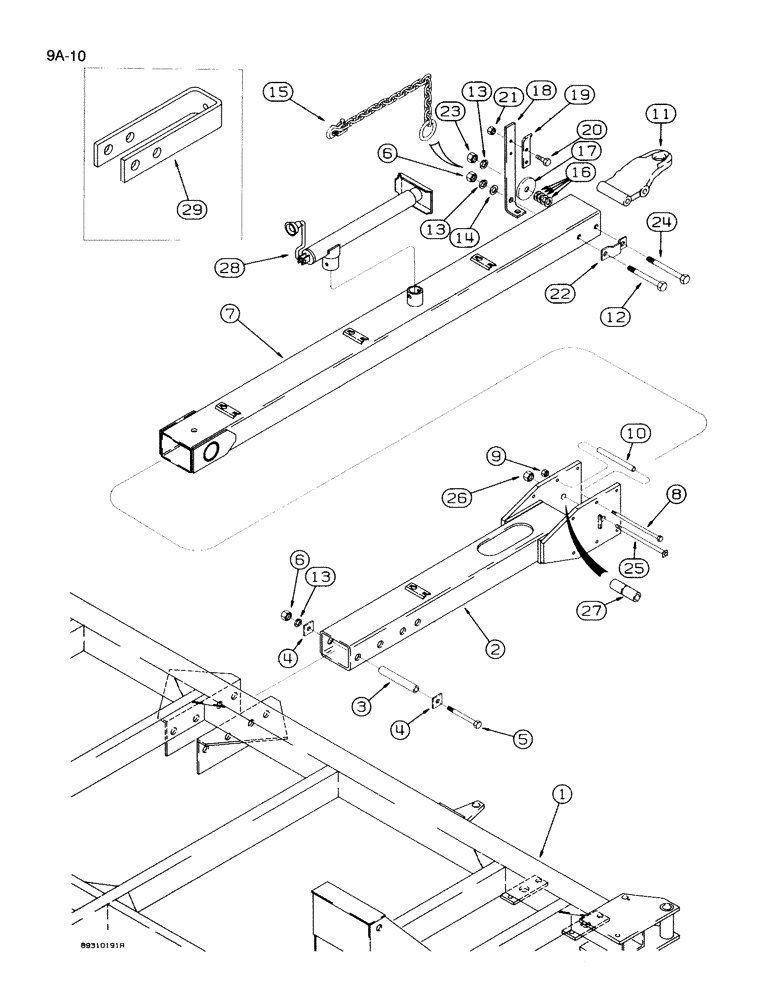

Запчасти Case IH 950 (9A-10) - TONGUE AND HITCH, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - main (See page 9A-9 for correct frame)

1шт.

2

137978A1

TUBE

- hitch receiver

1шт.

3

117699A1

SPACER

- tube

3шт.

4

1277824C1

WASHER

WASHER - square with round hole

6шт.

5

413-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

- hex, 3/4 NC x 10 inch

3шт.

6

425-1012

NUT,3/4"-10, G5

5шт.

7

136229A2

TUBE,2025 mm Length

- tongue

1шт.

8

413-10168

BOLT,Hex, 5/8" - 11 x 10-1/2", Gr 5

- hex, 5/8 NC x 10-1/2 inch

1шт.

9

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch

1шт.

10

136393A2

SPACER

- hitch

1шт.

11

1277987C1

TOW BAR

TONGUE - hitch

1шт.

12

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- hex, 3/4 NC x 9 inch

1шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

14

495-11081

WASHER,3/4", SAE

1шт.

15

63506C3

CHAIN (AG)

CHAIN - hitch

1шт.

16

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

- flat, 13/16 x 1-3/4 x 7/32 inch

4шт.

17

1969255C1

WASHER

- flat, 3/4 inch

1шт.

18

108232A1

SUPPORT

BAR - hydraulic hose standoff

1шт.

19

58644C1

HOLDER

- hydraulic hose

2шт.

20

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, plated

2шт.

21

231-4148

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

22

137098C1

SUPPORT

BRACKET - pump mounting

1шт.

23

329-1012

NUT,3/4"-10, G8

1шт.

24

426-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 8

- hex, 3/4 x 10 inch, grade 8

1шт.

25

136283A1

PIN ASSY.

PIN - hitch pivot

1шт.

26

231-41124

LOCK NUT,1 1/2"-6, GB

NUT - hex, self-locking, 1-1/2 inch NC

1шт.

27

136301A2

BUSHING

- hitch pivot

1шт.

28

1333730C1

JACK

- hitch

1шт.

29

1279163C1

CLEVIS COUPLING

CLEVIS - chain

1шт.

30

1973424C1

DECAL

- Case International, not shown, see page 9F-91, item 5

2шт.

31

1254170C1

DECAL

- Caution, read the operator's manual, not shown, see page 9F-85, item 5

1шт.

32

1254234C1

PRODUCT GRAPHIC,Caution To Prevent Personal Injury

DECAL - Caution, prevent personal injury, not shown, see page 9F-85, item 6

1шт.
