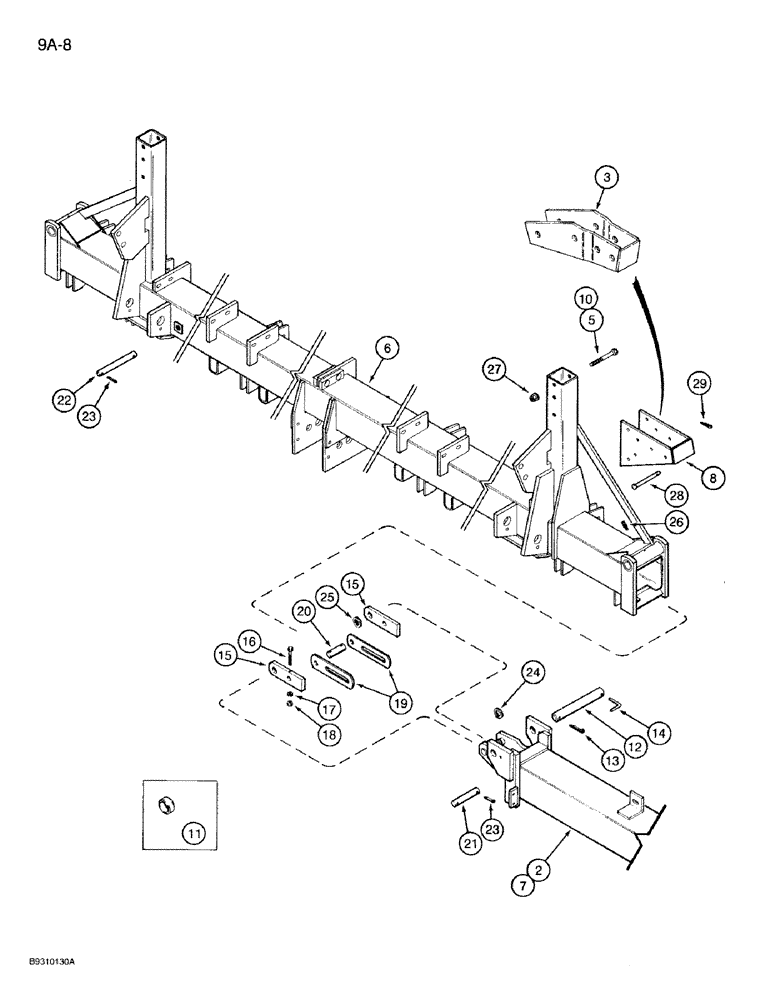

Запчасти Case IH 950 (9A-08) - MAIN FRAME AND WING FRAMES, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD, 8 ROW WIDE VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

102494A1

FRAME

- main, not shown

1шт.

2

141510C2

ASSEMBLY

FRAME - wing

2шт.

3

145142C1

STOP

- wing

2шт.

4

145139C1

STOP

- wing, used with granular chemical attachment, not shown

2шт.

5

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

6

1995837C2

VALVE BLOCK

FRAME - main, 12 row narrow vertical fold

1шт.

7

102493A1

FRAME ASSY

FRAME - wing, 12 row narrow vertical fold

2шт.

8

145136C1

STOP

- wing, 12 row narrow vertical fold

2шт.

9

1254599C1

STOP

- wing, used with granular chemical attachment, not shown, 12 row narrow vertical fold

2шт.

10

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch, 12 row narrow vertical fold

4шт.

11

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

- 1-1/2 ID x 1-3/4 OD x 3/4 inch, 12 row narrow vertical fold

4шт.

12

100326C2

PIN

- 1-1/2 x 11-7/8 inch, common to both models

2шт.

13

432-3232

COTTER PIN,1/2" x 2"

Pin, Split (Cotter), , common to both models 1/2" x 2"

2шт.

14

491601R3

PIN

- pivot lock, 1/2 inch diameter, common to both models

2шт.

15

113473C2

SUPPORT

LATCH - hinge, common to both models

4шт.

16

326-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 8

- hex, 1/4 NC x 2-3/4 inch grade 8, common to both models

4шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Common to both models 1/4"

4шт.

18

425-104

NUT,1/4"-20, Cl 5

- hex 1/4 inch NC, common to both models

4шт.

19

113307C1

LINK

- attaching, cylinder, common to both models

4шт.

20

100324C3

PIN

- 1 x 3-1/2 inch long, common to both models

2шт.

21

100323C2

PIN

- 1 x 5-7/8 inch long, common to both models

2шт.

22

100358C2

PIN

- 1 x 8-9/16 inch long, cylinder mounting (12 row narrow), common to both models

2шт.

22

125516C2

PIN

- 1 x 10-3/16 inch long, cylinder mounting (8 row wide), common to both models

2шт.

23

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2", Common to both models

8шт.

24

100-16125

SNAP RING,#125, Ext

Ring, Snap, , Common to both models #125, Ext

4шт.

25

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch, common to both models

4шт.

26

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4 inch, common to both models

2шт.

27

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

- hex flange lock, 5/8 inch NC, grade 8, common to both models

4шт.

28

149571C2

PIN

- headed, 5/8 inch diameter, common to both models

2шт.

29

486830R1

COTTER PIN

PIN - cotter, hair, 3/16 inch diameter, common to both models

2шт.
