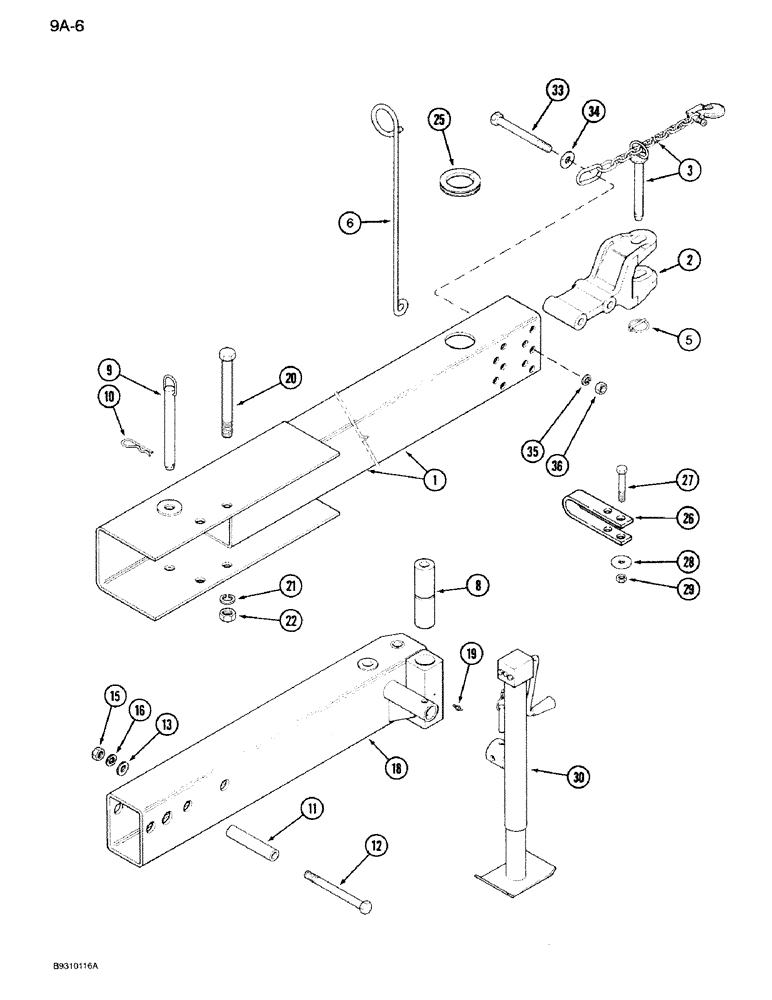

Запчасти Case IH 950 (9A-06) - FOLDING HITCH, 8 ROW NARROW, RIGID, 6 ROW WIDE, RIGID (09) - CHASSIS/ATTACHMENTS

1

1268044C92

TOW BAR

TONGUE ASSEMBLY - hitch, with decals

1шт.

1254170C1

DECAL

- Caution, read the operator's manual, not shown, see page 9F-85, item 5

1шт.

1254234C1

PRODUCT GRAPHIC,Caution To Prevent Personal Injury

DECAL - Caution, to prevent personal injury, not shown, see page 9F-85, item 6

1шт.

1277910C1

PRODUCT GRAPHIC,Caution Always Use 7/8 in Hitch Pin

DECAL - Caution, always use hitch pin, not shown, see page 9F-85, item 7

1шт.

2

1279040C1

CLEVIS

- hitch

1шт.

1337592C1

CHAIN (AG)

CHAIN ASSEMBLY - hitch

1шт.

3

100682C3

CHAIN (AG)

CHAIN - hitch

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

5

A30338

PIN

- snap lock, 1/4 inch diameter

1шт.

6

1279237C1

SUPPORT

ROD - support, hose

1шт.

8

1250754C1

SPACER

- pivot

1шт.

9

1250775C2

PIN

- tongue

1шт.

10

1978738C1

HAIR PIN COTTER

3/16"

1шт.

11

1250748C2

SPACER

- tongue

3шт.

12

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4 NC x 8 inch

3шт.

13

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

- flat, 25/32 x 1-1/2 x 5/32 inch

6шт.

15

425-1012

NUT,3/4"-10, G5

3шт.

16

492-11075

LOCK WASHER,3/4"

3/4"

3шт.

18

1995825C1

TUBE

- tongue

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

20

326-16160

BOLT,Hex, 1" - 8 x 10", Gr 8

- hex, 1 NC x 10 inch, Grade 8

1шт.

22

131-1221

LOCK NUT,1"-8, GC

NUT - hex, self-locking, 1 inch NC

1шт.

25

96088C1

SEAL

TRIM - tongue

1шт.

26

1279163C1

CLEVIS COUPLING

CLEVIS - chain

1шт.

27

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

28

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch

1шт.

29

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

30

141241C1

JACK

- hitch

1шт.

33

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

- hex, 3/4 NC x 6-1/2 inch

1шт.

33

113-776

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch

1шт.

33

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch

1шт.

34

495-11081

WASHER,3/4", SAE

1шт.

35

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

36

425-1012

NUT,3/4"-10, G5

2шт.
