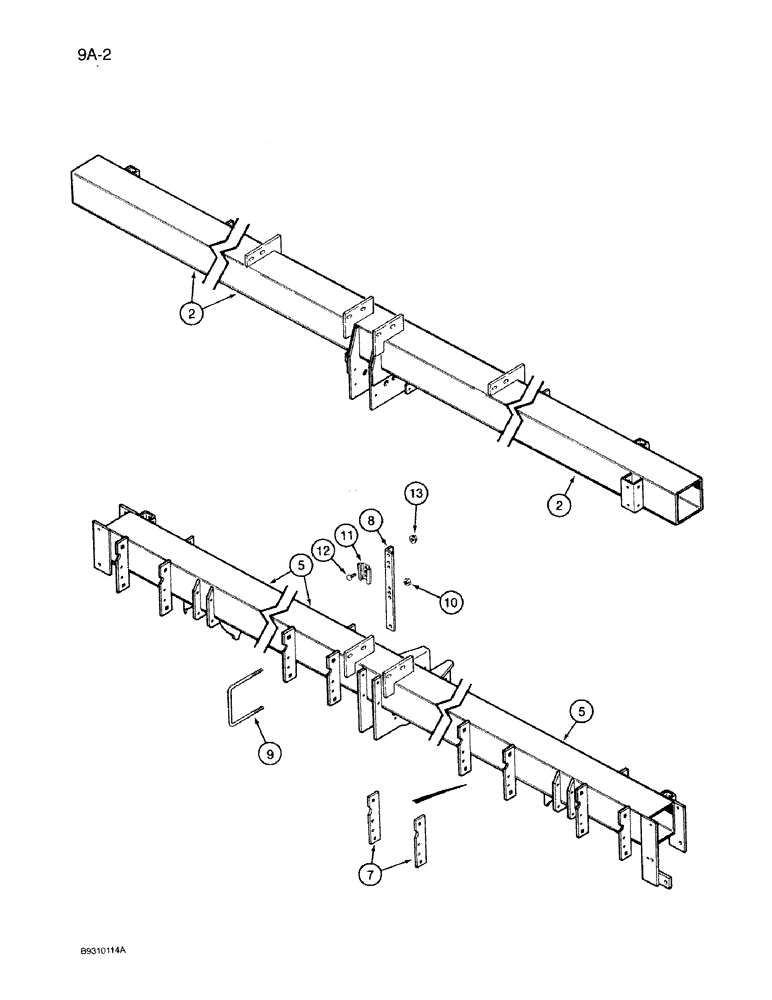

Запчасти Case IH 950 (9A-02) - MAIN FRAME, 4, 6, AND 8 ROW NARROW, RIGID, 4 AND 6 ROW WIDE, RIGID, 4& 6 ROW WIDE (09) - CHASSIS/ATTACHMENTS

1

1547001C1

FRAME

- main, 4 row wide

1шт.

2

1547003C1

FRAME

- main, 6 row wide (Shown)

1шт.

4

1547000C1

FRAME

- main, 4 row narrow, 6 & 8

1шт.

5

1547002C1

FRAME

- main, 6 row narrow (Shown), 4 & 8

1шт.

6

1547004C1

FRAME

- main, 8 row narrow, 4 & 6

1шт.

1345352C1

PACKAGE

KIT - bracket service, includes instructions, 4, 6 & 8 row narrow

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - unit attaching, weld on, 4, 6 & 8 row narrow

2шт.

8

58316C2

SUPPORT

- light, (See Note), 4, 6 & 8 row narrow

1шт.

9

1250813C1

U-BOLT

- 5/8 inch NC, 4, 6 & 8 row narrow

1шт.

10

425-1010

NUT,5/8"-11, G5

4, 6 & 8 row narrow 5/8"-11, G5

2шт.

11

A59457

BRACKET

SOCKET - SMV emblem, 4, 6 & 8 row narrow

1шт.

12

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2, 4, 6 & 8 row narrow

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, 4, 6 & 8 row narrow

2шт.
