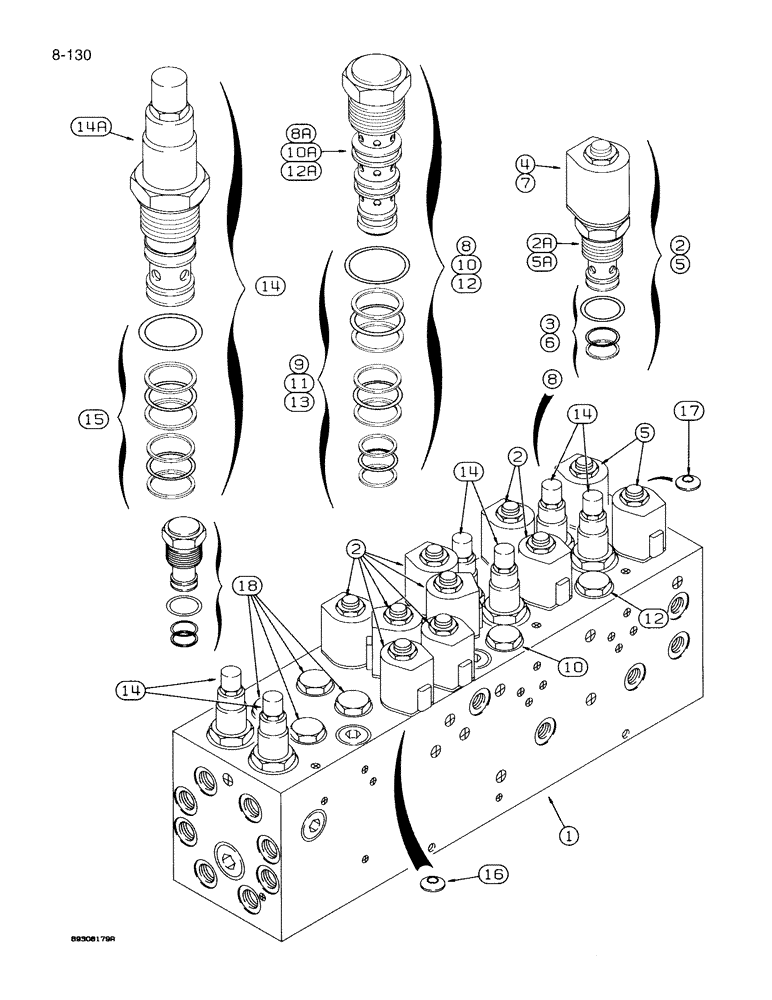

Запчасти Case IH 950 (8-130) - CONTROL VALVE ASSEMBLY, PLANTER, 24 ROW NARROW, FRONT FOLD (08) - HYDRAULICS

124461A1

VALVE

ASSEMBLY - control, 24 row

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

126048A1

SOLENOID

VALVE ASSEMBLY - solenoid, poppet type

8шт.

2a

NSS

NOT SOLD SEPARAT

VALVE - 2-way

1шт.

3

149942C1

SEAL KIT

KIT - seal, poppet solenoid valve (See NOTE 1)

1шт.

4

1340843C1

SOLENOID,12V

SOLENOID - 12 volt coil, diode arc suppressed

1шт.

5

126049A1

VALVE

ASSEMBLY - solenoid, spool type

2шт.

5a

NSS

NOT SOLD SEPARAT

VALVE - 2 way

1шт.

6

126054A1

SEAL PACKAGE

KIT - seal, spool solenoid valve (See NOTE 1)

1шт.

7

1340843C1

SOLENOID,12V

SOLENOID - 12 volt coil, diode arc suppressed

1шт.

8

129056A1

VALVE

ASSEMBLY - flow divider, 50/50 split, 27 GPM

1шт.

8a

NSS

NOT SOLD SEPARAT

VALVE - flow divider

1шт.

9

126055A1

SEAL KIT

- seal, flow divider valve (See NOTE 2)

1шт.

10

126051A1

VALVE

ASSEMBLY - flow divider, 50/50 split, 12 GPM

1шт.

10a

NSS

NOT SOLD SEPARAT

VALVE - flow divider

1шт.

11

126056A1

SEAL KIT

- seal, flow divider valve (See NOTE 2)

1шт.

12

126052A1

VALVE

ASSEMBLY - flow divider, 50/50 split, 8 GPM

1шт.

12a

NSS

NOT SOLD SEPARAT

VALVE - flow divider

1шт.

13

126056A1

SEAL KIT

- seal, flow divider valve (See NOTE 2)

1шт.

14

126053A1

VALVE

ASSEMBLY - counterbalance

6шт.

14a

NSS

NOT SOLD SEPARAT

VALVE - counterbalance

1шт.

15

126057A1

SEAL KIT

- seal, counterbalance valve (See NOTE 3)

1шт.

16

134169A1

ORIFICE

DISC - orifice, .090 inch

2шт.

17

107467A2

ORIFICE

DISC - orifice, .125 inch

1шт.

18

134687A1

PLUG

ASSEMBLY - hydraulic, No. 12, includes seals

4шт.
