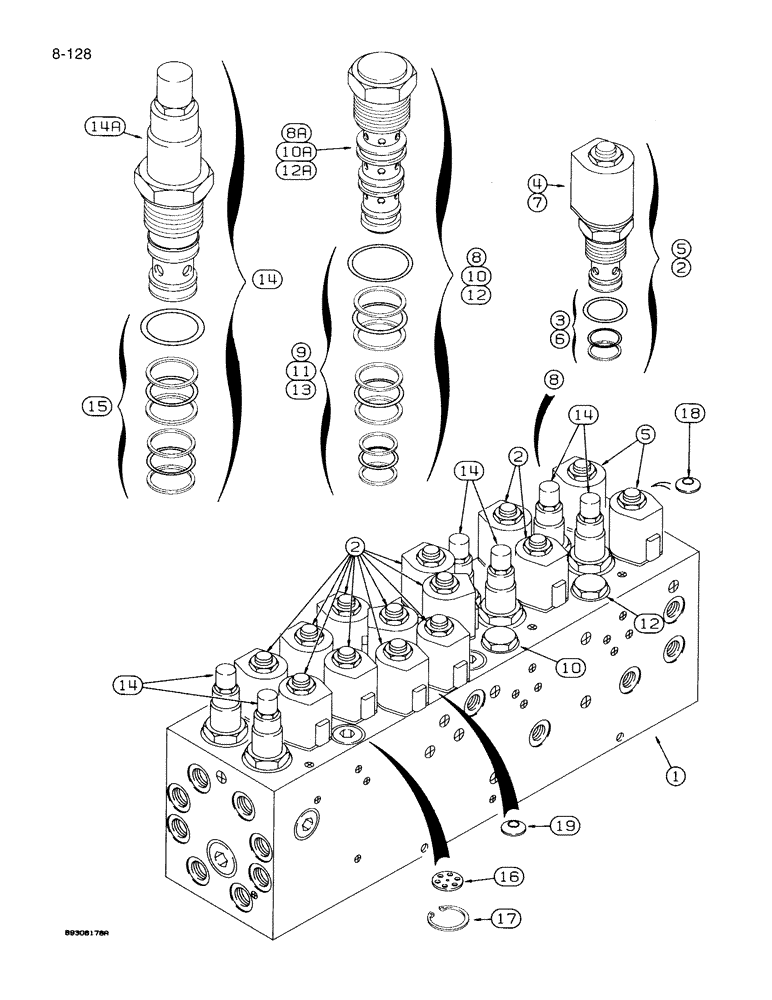

Запчасти Case IH 950 (8-128) - CONTROL VALVE ASSEMBLY, PLANTER, 12 AND 16 ROW NARROW, FRONT FOLD (08) - HYDRAULICS

124459A1

VALVE

ASSEMBLY - control, 12 row

1шт.

117311A2

VALVE

ASSEMBLY - control, 16 row

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

126048A1

SOLENOID

VALVE ASSEMBLY - solenoid, poppet type

12шт.

2a

NSS

NOT SOLD SEPARAT

VALVE - 2-way

1шт.

3

149942C1

SEAL KIT

KIT - seal, poppet solenoid valve (See NOTE 1)

1шт.

4

1340843C1

SOLENOID,12V

SOLENOID - 12 volt coil, diode arc suppressed

1шт.

5

126049A1

VALVE

ASSEMBLY - solenoid, spool type

2шт.

5a

NSS

NOT SOLD SEPARAT

VALVE - 2 way

1шт.

6

126054A1

SEAL PACKAGE

KIT - seal, spool solenoid valve (See NOTE 1)

1шт.

7

1340843C1

SOLENOID,12V

SOLENOID - 12 volt coil, diode arc suppressed

1шт.

8

129056A1

VALVE

ASSEMBLY - flow divider, 50/50 split, 27 GPM, 12 row

1шт.

8

126050A1

VALVE

ASSEMBLY - flow divider, 33/67 split, 27 GPM, 16 row ( replaced 129050A1 )

1шт.

Ref 8-Ops manual 9-23961states with carring wheel attachment installed a 33/67split valve (129050A1) is required. Without this attachment the 50/50 flow divider is required. SR 6/2/97

1шт.

8a

NSS

NOT SOLD SEPARAT

VALVE - flow divider

1шт.

9

126055A1

SEAL KIT

- seal, flow divider valve (See NOTE 2)

1шт.

10

126051A1

VALVE

ASSEMBLY - flow divider, 50/50 split, 12 GPM

1шт.

10a

NSS

NOT SOLD SEPARAT

VALVE - flow divider

1шт.

11

126056A1

SEAL KIT

- seal, flow divider valve (See NOTE 2)

1шт.

12

126052A1

VALVE

ASSEMBLY - flow divider, 50/50 split, 8 GPM

1шт.

12a

NSS

NOT SOLD SEPARAT

VALVE - flow divider

1шт.

13

126056A1

SEAL KIT

- seal, flow divider valve (See NOTE 2)

1шт.

14

126053A1

VALVE

ASSEMBLY - counterbalance

6шт.

14a

NSS

NOT SOLD SEPARAT

VALVE - counterbalance

1шт.

15

126057A1

SEAL KIT

- seal, counterbalance valve (See NOTE 3)

1шт.

16

126158A1

ORIFICE

DISC - orifice, .110 and .042 inch

1шт.

17

100-2175

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

18

126160A1

ORIFICE

DISC - orifice, .060 inch

1шт.

19

134168A1

ORIFICE

DISC - orifice, .042 inch

2шт.
