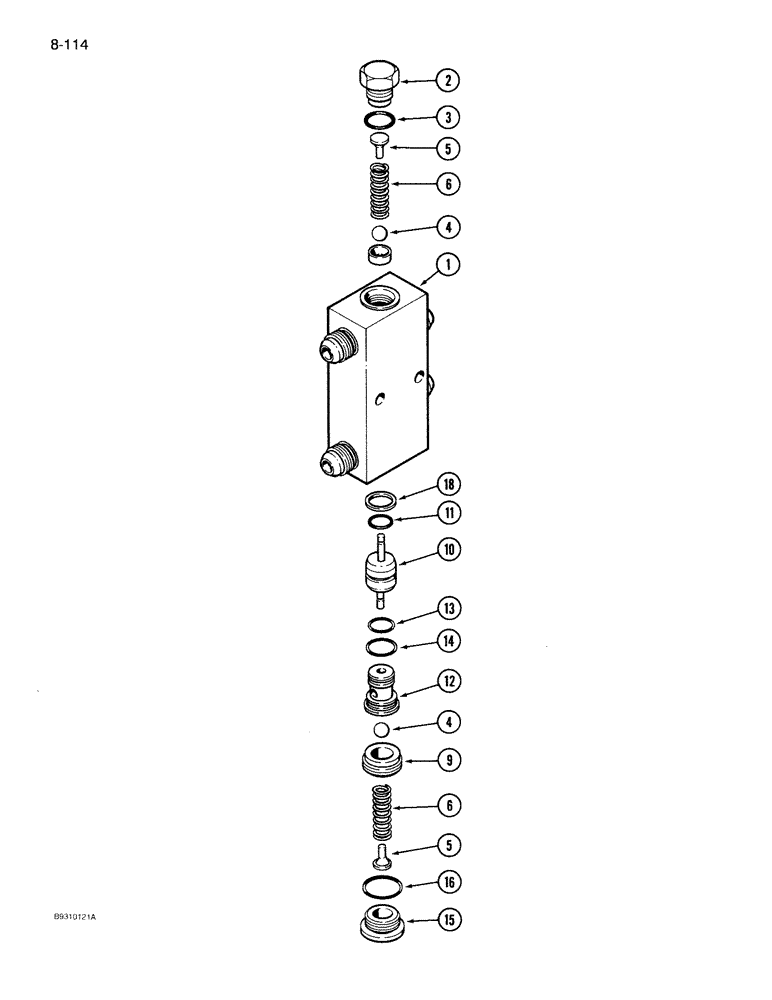

Запчасти Case IH 950 (8-114) - ALTERNATING CHECK VALVE, 4 AND 6 ROW NARROW, RIGID, 4 ROW WIDE, RIGID (08) - HYDRAULICS

142864C95

VALVE

ASSEMBLY - check, alternating

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order valve assembly)

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - centering, spring

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

211-214

BALL,1/2" Dia

- steel, 1/2 inch diameter

2шт.

5

85145C1

PIN

- retainer, ball

2шт.

6

372649R1

SPRING

- check valve

2шт.

9

374172R1

NUT

- retainer

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Piston -014, 90 Duro, .489" ID x .070" Thk

1шт.

12

374087R31

RETAINER

- valve ball

1шт.

13

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

- retainer, 11/16 ID x 1/16 inch

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Retainer -018, 90 Duro, .739" ID x .070" Thk

1шт.

15

374088R1

PLUG

- recessed flat head

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

142865C1

SEAL

- piston

1шт.
