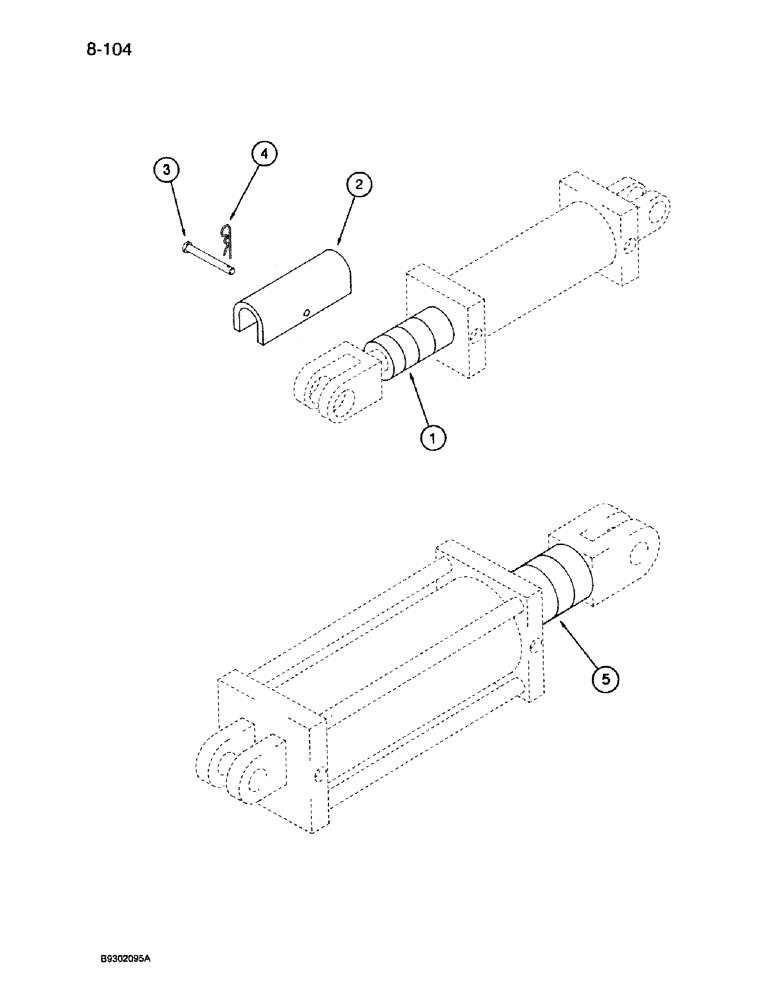

Запчасти Case IH 950 (8-104) - CYL DEPTH CNTRL STOP COLLAR, 8 ROW WIDE&12 ROW NARROW,VERTICAL FOLD, 12, 16&24 ROW NARROW,FRONT FOLD (08) - HYDRAULICS

1

7737869

COLLAR

KIT - stroke control collar (Front fold and vertical fold)

4шт.

2

1268367C2

STOP

- cylinder assembly (Vertical fold only)

2шт.

3

439-5454

HEADED PIN,1/4" x 3 3/8"

PIN - clevis, 1/4 x 3-3/8 inch (Vertical fold only)

2шт.

4

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - hair (Vertical fold only)

2шт.

5

110584A1

PACKAGE

KIT - stroke control collar (Vertical fold only)

2шт.
