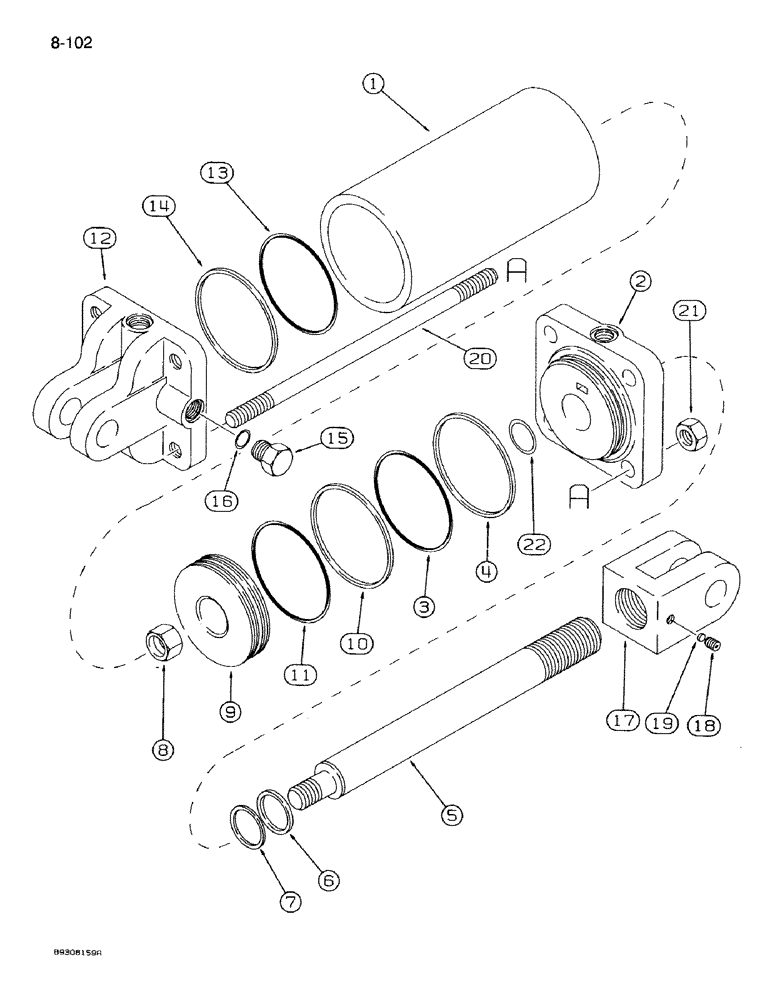

Запчасти Case IH 950 (8-102) - HYDRAULIC CYLINDER, 1272148C91, TONGUE, 24 ROW NARROW, FRONT FOLD (08) - HYDRAULICS

1272148C91

CYLINDER

ASSEMBLY - 4 ID x 8 stroke, 3/4-16 inch ports

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272920C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-3/4 ID x 4 inch OD, gland

1шт.

Part of Seal Kit P/N 80117C2

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 80117C2

1шт.

5

1267056C1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 80117C2

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Seal Kit P/N 80117C2

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF

1шт.

9

149930C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 80117C2

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3-1/2 ID x 3-11/16 inch OD, backup, piston seal

1шт.

Part of Seal Kit P/N 80117C2

1шт.

12

1272919C1

CYLINDER HEAD

HEAD - cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-3/4 ID x 4 inch OD, cylinder head

1шт.

Part of Seal Kit P/N 80117C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of Seal Kit P/N 80117C2

1шт.

15

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Seal Kit P/N 80117C2

1шт.

17

1267057C1

CLEVIS,3/8" - 16

- rod end

1шт.

18

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder

4шт.

21

425-1010

NUT,5/8"-11, G5

4шт.

22

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Kit P/N 80117C2

1шт.

80117C2

SEAL KIT

- seal, Includes: Ref. 3, 4, 6, 7, 10, 11, 13, 14, 16 and 22 and (2) wear rings not used on this cylinder

1шт.
