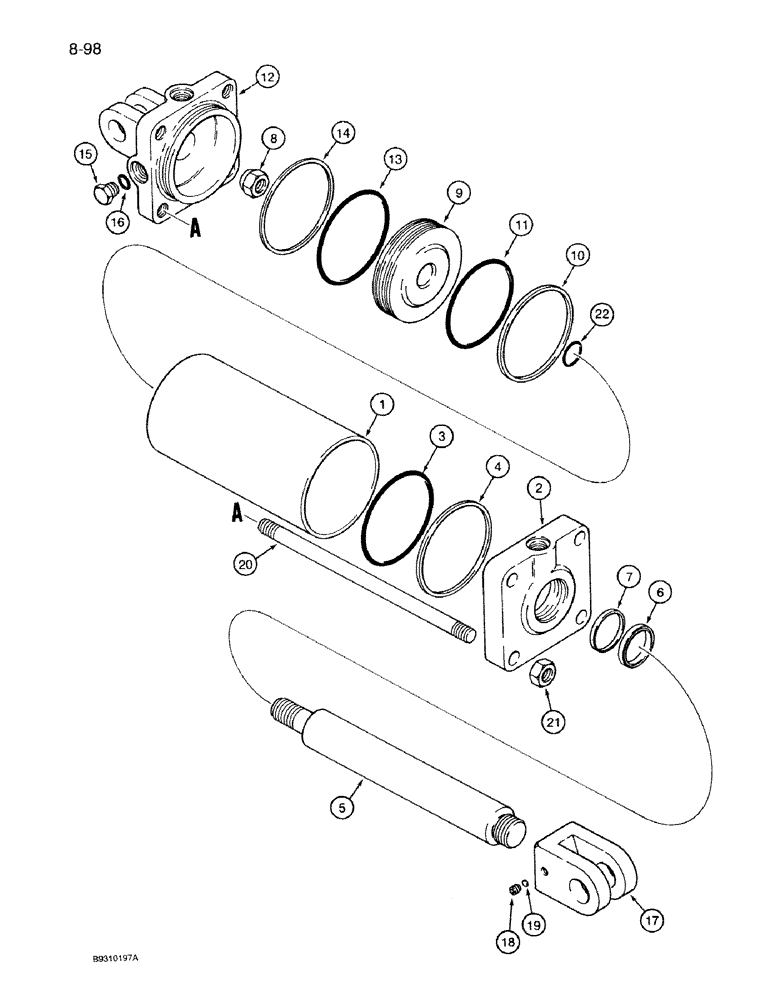

Запчасти Case IH 950 (8-098) - HYDRAULIC CYLINDER, 127700A1, WING FOLD, 24 ROW NARROW, FRONT FOLD (08) - HYDRAULICS

127700A1

CYLINDER

ASSEMBLY - 5 ID x 20 stroke, 3/4-16 inch ports

1шт.

1

137360A1

SLEEVE

TUBE - cylinder

1шт.

2

92857C1

HEAD (CYLINDER)

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit P/N 85126C1

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 85126C1

1шт.

5

137362A1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of Seal Kit P/N 85126C1

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 85126C1

1шт.

8

232-24020

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

9

1286382C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 85126C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3-1/2 ID x 3-11/16 inch OD, backup, piston seal

1шт.

Part of Seal Kit P/N 85126C1

1шт.

12

1286381C1

HEAD

- cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of Seal Kit P/N 85126C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of Seal Kit P/N 85126C1

1шт.

15

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

Part of Seal Kit P/N 85126C1

1шт.

17

138895A1

CLEVIS

- rod

1шт.

18

83-1255

SET SCREW,Hex Soc, 1/4"-20 x 5/16"

SCREW - set, hex socket headless, 1/4 NC x 5/16 inch, cup pt

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

137361A1

TIE-ROD,3/4" - 10 x 13.81"

BOLT - tie, cylinder

4шт.

21

425-1012

NUT,3/4"-10, G5

4шт.

22

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Kit P/N 85126C1

1шт.

85126C1

SEAL KIT

- seal, Includes: Ref. 3, 4, 6, 7, 10, 11, 13, 14, 16 and 22

1шт.
