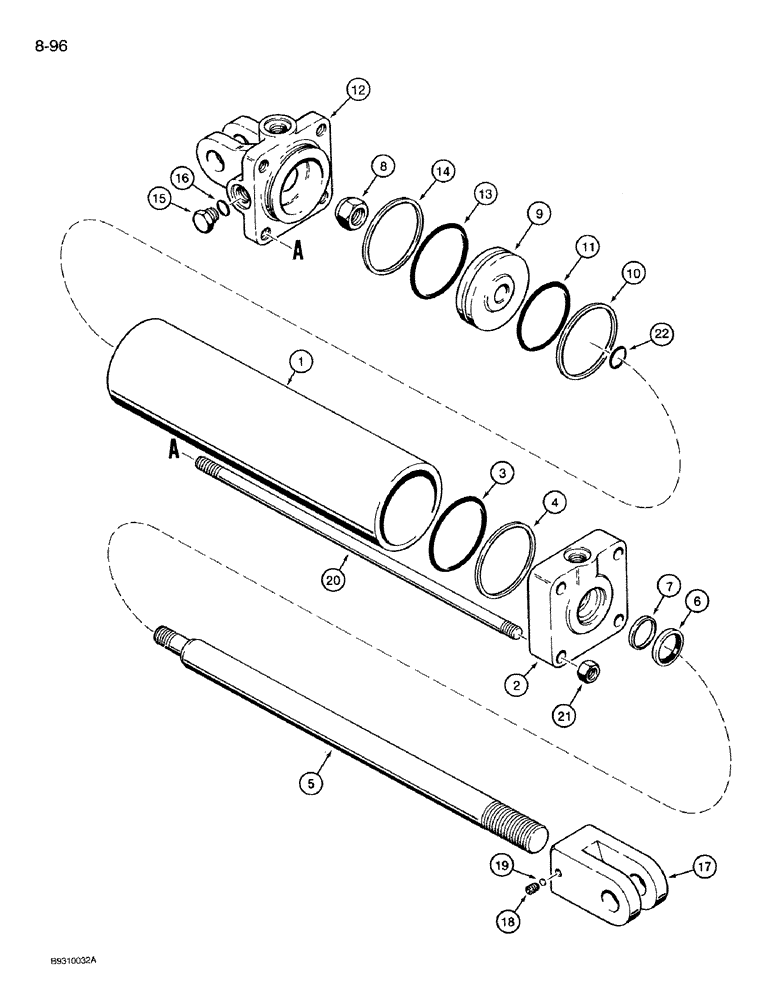

Запчасти Case IH 950 (8-096) - HYDRAULIC CYLINDER, 1272150C91, WING FOLD, 12 AND 16 ROW NARROW, FRONT FOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1272150C91
CYLINDER
ASSEMBLY - 4 ID x 16 stroke, 3/4-16 inch ports
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder
1шт.
2
1282337C1
GLAND
- cylinder
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING - 3-3/4 ID x 4 inch OD, gland
1шт.
Part of Seal Kit P/N 79979C3
1шт.
4
NSS
NOT SOLD SEPARAT
RING - backup, gland O-ring
1шт.
Part of Seal Kit P/N 79979C3
1шт.
5
1263346C1
ROD ASSY.
ROD - piston
1шт.
6
NSS
NOT SOLD SEPARAT
SEAL - U-cup, piston rod
1шт.
Part of Seal Kit P/N 79979C3
1шт.
7
NSS
NOT SOLD SEPARAT
WIPER - piston rod
1шт.
Part of Seal Kit P/N 79979C3
1шт.
8
20268R1
LOCK NUT,7/8"-14, GC
NUT - hex, self-locking, 7/8 inch NF, grade 8
1шт.
9
149930C2
PISTON
- cylinder
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
Part of Seal Kit P/N 79979C3
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING - 3-1/2 ID x 3-11/16 inch OD, backup, piston seal
1шт.
Part of Seal Kit P/N 79979C3
1шт.
12
1282336C1
HEAD
- cylinder, closed end
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING - 3-3/4 ID x 4 inch OD, cylinder head
1шт.
Part of Seal Kit P/N 79979C3
1шт.
14
NSS
NOT SOLD SEPARAT
RING - backup, cylinder head O-ring
1шт.
Part of Seal Kit P/N 79979C3
1шт.
15
9410359
PLUG
- hex, 3/4-16 inch O-ring boss
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - 1/2 inch OD
1шт.
Part of Seal Kit P/N 79979C3
1шт.
17
145240C1
CLEVIS,1 -1/2" - 12
- rod
1шт.
18
483-1386
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt
1шт.
19
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
PAD - insert
1шт.
20
145251C1
THREADED ROD,5/8" - 11 x 539mm
BOLT - tie, cylinder
4шт.
21
425-1010
NUT,5/8"-11, G5
4шт.
22
NSS
NOT SOLD SEPARAT
O-RING - piston rod
1шт.
Part of Seal Kit P/N 79979C3
1шт.
79979C3
SEAL KIT
KIT - seal, iIncludes: Ref. 3, 4, 6, 7, 10, 11, 13, 14, 16 and 22, also includes two wear rings not used with this cylinder.
1шт.
