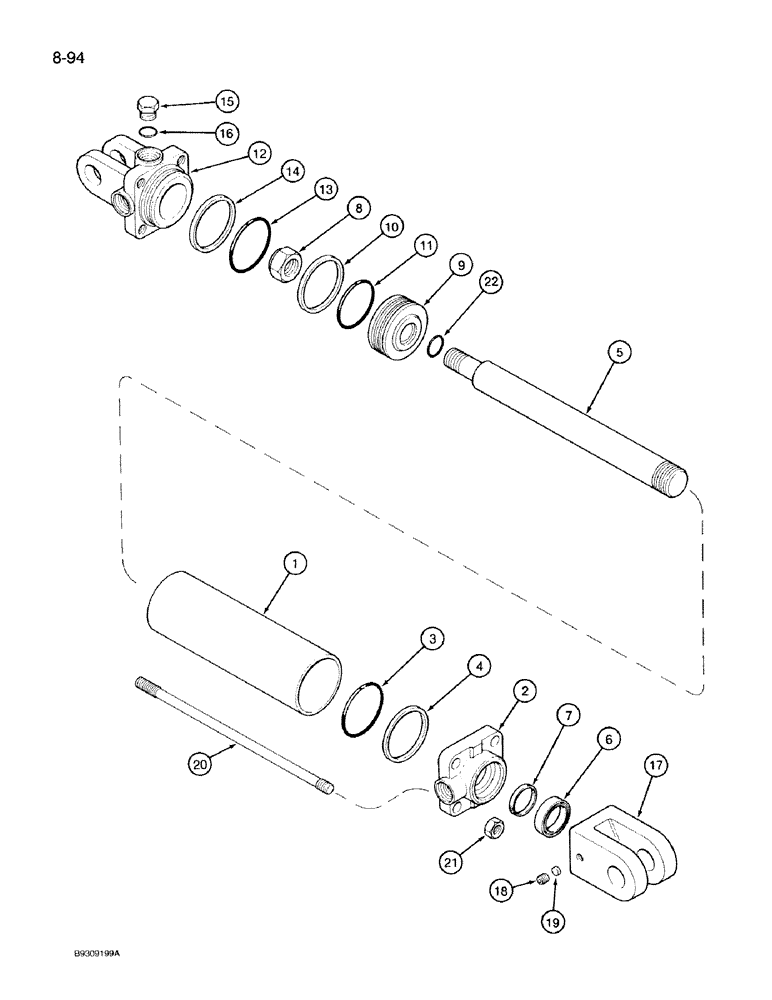

Запчасти Case IH 950 (8-094) - HYDRAULIC CYLINDER, 107653A1, FERTILIZER CART HINGE, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
107653A1
CYLINDER
ASSEMBLY - 3-1/2 ID x 16 stroke, 3/4-16 inch port
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder (Order cylinder assembly)
1шт.
2
1272826C1
HEAD
GLAND - cylinder
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING - 2-1/4 ID x 2-1/2 inch OD, gland
1шт.
Part of Seal Kit P/N 84919C2
1шт.
4
NSS
NOT SOLD SEPARAT
RING - backup, gland O-ring
1шт.
Part of Seal Kit P/N 84919C2
1шт.
5
118491A1
ROD
- piston
1шт.
6
NSS
NOT SOLD SEPARAT
SEAL - U-cup, piston rod
1шт.
Part of Seal Kit P/N 84919C2
1шт.
7
NSS
NOT SOLD SEPARAT
WIPER - piston rod
1шт.
Part of Seal Kit P/N 84919C2
1шт.
8
232-46314
LOCK NUT,7/8"-14, GC
NUT, LOCK, 7/8"-14, GC
1шт.
9
145422C2
PISTON
- cylinder
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
Part of Seal Kit P/N 84919C2
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING - 2-1/16 ID x 2-1/4 inch OD, backup, piston seal
1шт.
Part of Seal Kit P/N 84919C2
1шт.
12
1272825C1
HEAD
- cylinder, closed end
1шт.
13
NSS
NOT SOLD SEPARAT
O-RING - 2-1/4 ID x 2-1/2 inch OD, cylinder head
1шт.
Part of Seal Kit P/N 84919C2
1шт.
14
NSS
NOT SOLD SEPARAT
RING - backup, cylinder head O-ring
1шт.
Part of Seal Kit P/N 84919C2
1шт.
15
214389
PLUG,3/4" - 16 ORB
1шт.
16
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
Part of Seal Kit P/N 84919C2
1шт.
17
145233C1
CLEVIS,1/4" - 12
- rod end
1шт.
18
483-1386
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt
1шт.
19
NSS
NOT SOLD SEPARAT
PAD - insert
1шт.
20
1282287C1
TIE-ROD,1/2" - 13 x 28.656"
BOLT - tie, cylinder
4шт.
21
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
4шт.
22
NSS
NOT SOLD SEPARAT
O-RING - piston rod
1шт.
Part of Seal Kit P/N 84919C2
1шт.
84919C2
GASKET KIT
KIT - seal, Includes: Ref. 3, 4, 6, 7, 10, 11, 13, 14, 16 and 22
1шт.
Выбрано товаров: 34
