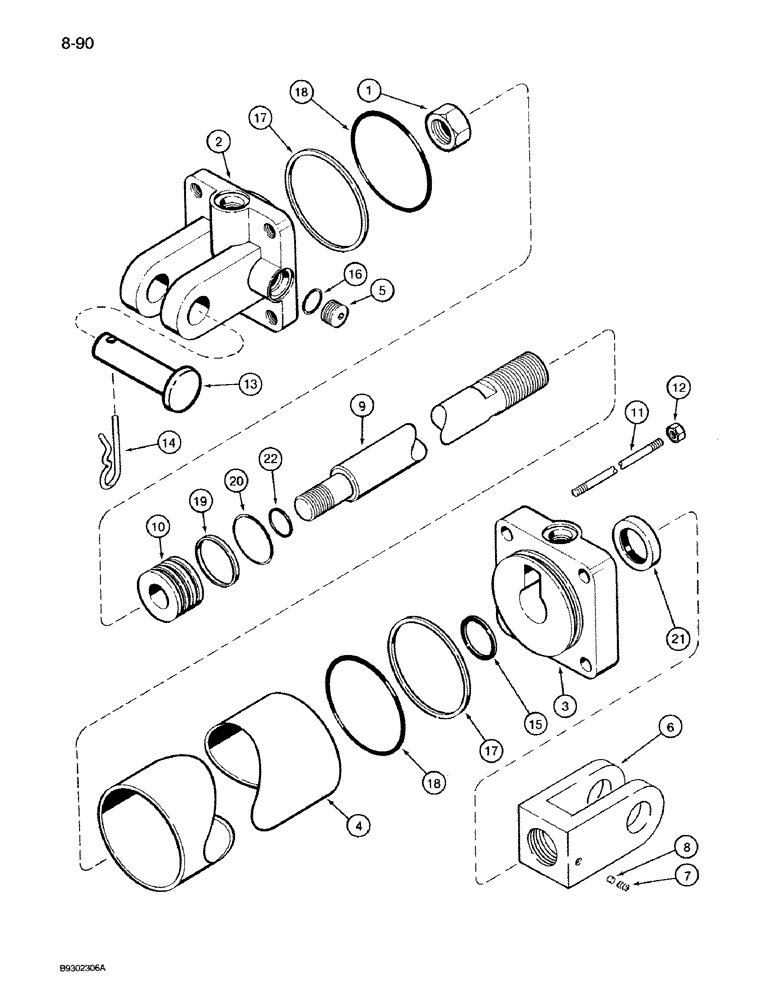

Запчасти Case IH 950 (8-090) - ASSIST WHEEL CYLINDER, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (08) - HYDRAULICS

92916C91

CYLINDER

ASSEMBLY - assist wheel, 3-1/2 ID x 8 inch stroke (Replaced by 1272147C91 cylinder, parts list page 8-101)

1шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, grade 8

1шт.

2

1272825C1

HEAD

- rear, cylinder

1шт.

3

1272826C1

HEAD

- front, cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order cylinder assembly)

1шт.

5

9410359

PLUG

- hex socket, 3/4-16 inch O-ring boss

1шт.

6

145233C1

CLEVIS,1/4" - 12

- rod

1шт.

7

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket head, 3/8 NC x 3/8 inch

1шт.

8

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - set screw

1шт.

9

145231C1

PISTON ROD

ROD - piston

1шт.

10

145422C2

PISTON

- cylinder

1шт.

11

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

STUD - tie, cylinder

4шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

13

1266753C1

PIN,25.4mm OD x 96.83mm L

- clevis

2шт.

Parts not used in this application. See page 8-61, items 12 and 13, for correct mounting parts.

1шт.

14

520175R1

CLIP

PIN - cotter, 3/16 x 2-1/4 inch

4шт.

Parts not used in this application. See page 8-61, items 12 and 13, for correct mounting parts.

1шт.

84919C2

GASKET KIT

KIT - seal

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL- rod

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - cylinder head, 3-1/4 inch ID

2шт.

19

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston, 3 inch ID

1шт.

21

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.
