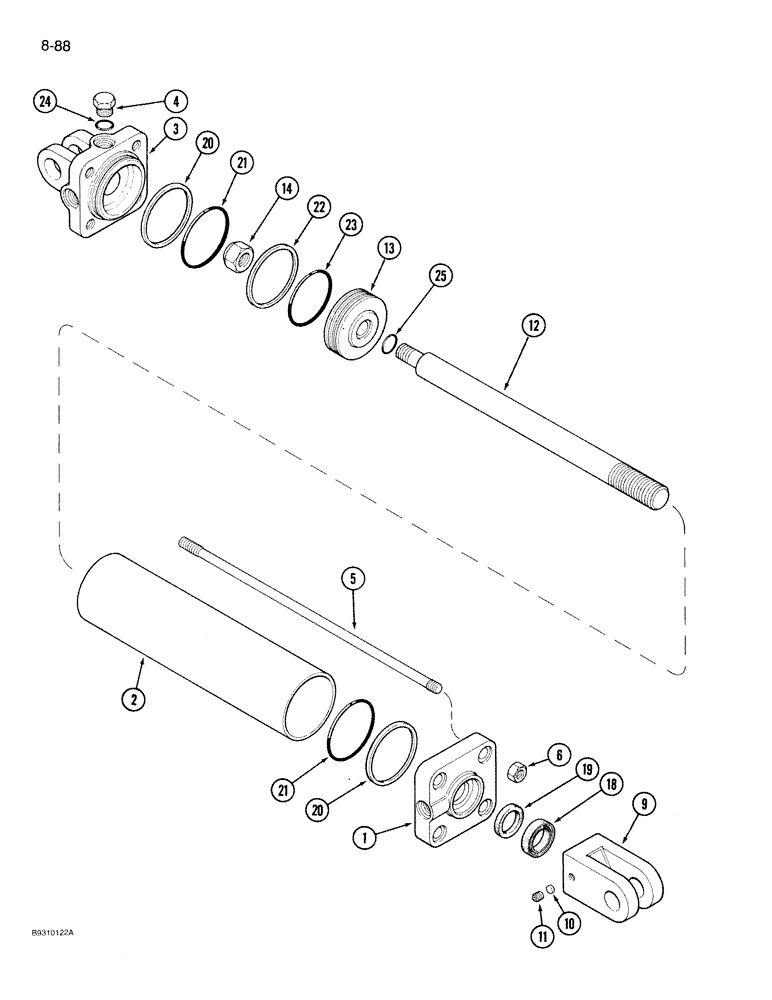

Запчасти Case IH 950 (8-088) - HYDRAULIC CYLINDER, 1282329C91, ENDWISE TRANSPORT WHEEL, 8 ROW NARROW, RIGID (08) - HYDRAULICS

1282329C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - wheel, 4 bore x 16 inch stroke

1шт.

1

1282337C1

GLAND

HEAD - front, cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder assembly)

1шт.

3

1282336C1

HEAD

- rear, cylinder

1шт.

4

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

5

145251C1

THREADED ROD,5/8" - 11 x 539mm

STUD - tie, cylinder

4шт.

6

25-1010

NUT,5/8"-11, G5

4шт.

9

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

11

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

12

1263346C1

ROD ASSY.

ROD - piston

1шт.

13

149930C2

PISTON

- cylinder

1шт.

14

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, grade 8

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - U-cup, rod

1шт.

Part of Seal Kit P/N 79979C2

1шт.

19

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

Part of Seal Kit P/N 79979C2

1шт.

20

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of Seal Kit P/N 79979C2

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

2шт.

Part of Seal Kit P/N 79979C2

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 79979C2

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Kit P/N 79979C2

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of Seal Kit P/N 79979C2

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Kit P/N 79979C2

1шт.

79979C2

SEAL KIT

KIT - seal, Includes: Ref. 18-25

1шт.
