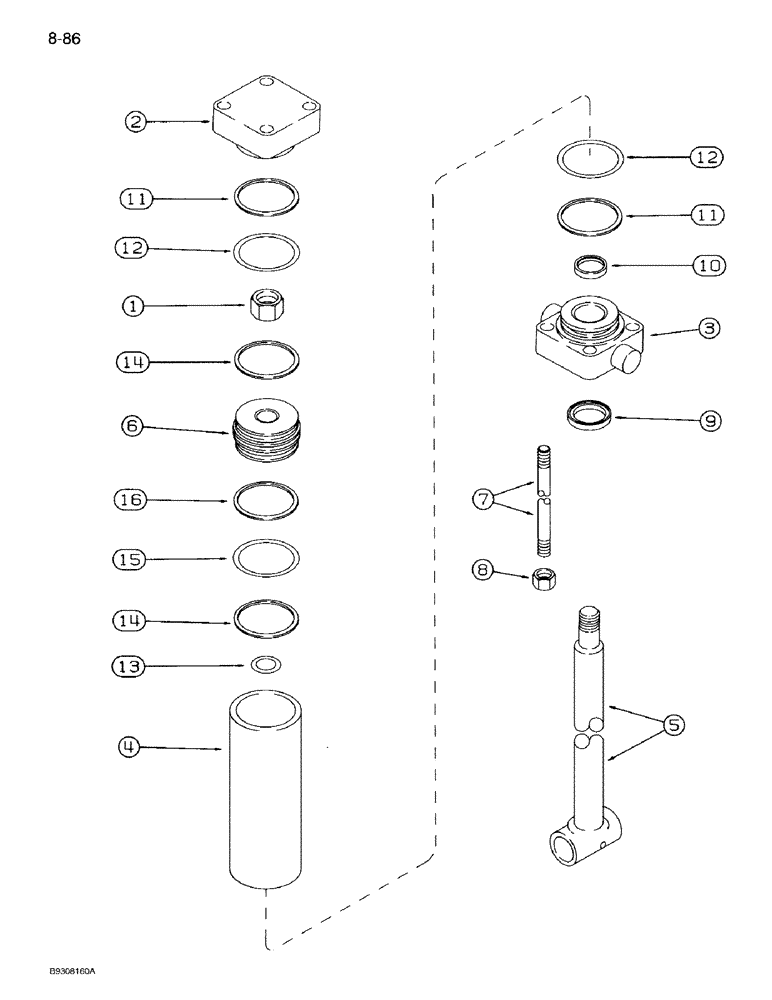

Запчасти Case IH 950 (8-086) - HYDRAULIC CYLINDER, 113820A1, CARRYING WHEEL, 12, 16, AND 24 ROW NARROW, FRONT FOLD (08) - HYDRAULICS

113820A1

CYLINDER,Double Acting, 31.75mm Rod, 158.75mm Stroke

ASSEMBLY - 3-1/4 bore x 6-1/4 inch stroke double acting

1шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, grade 8

1шт.

2

93340C1

BOTTOM

HEAD - rear, cylinder

1шт.

3

93342C1

HEAD

- front, cylinder

1шт.

4

122598A1

BARREL

TUBE - cylinder

1шт.

5

122601A1

SHAFT ASSY.

ROD - cylinder

1шт.

6

92519C1

PISTON

- cylinder

1шт.

7

122600A1

TIE-ROD

STUD - tie, cylinder

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

9

NSS

NOT SOLD SEPARAT

SEAL- U-cup, rod

1шт.

Part of Seal Kit P/N 80116C2

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

Part of Seal Kit P/N 80116C2

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of Seal Kit P/N 80116C2

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - cylinder head, 3-1/4 inch ID

2шт.

Part of Seal Kit P/N 80116C2

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Seal Kit P/N 80116C2

1шт.

14

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Kit P/N 80116C2

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - piston, 3 inch ID

1шт.

Part of Seal Kit P/N 80116C2

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 80116C2

1шт.

80116C2

GASKET KIT

KIT - seal, Includes: Ref. 9-16 and (3) O-rings not used on this cylinder

1шт.
