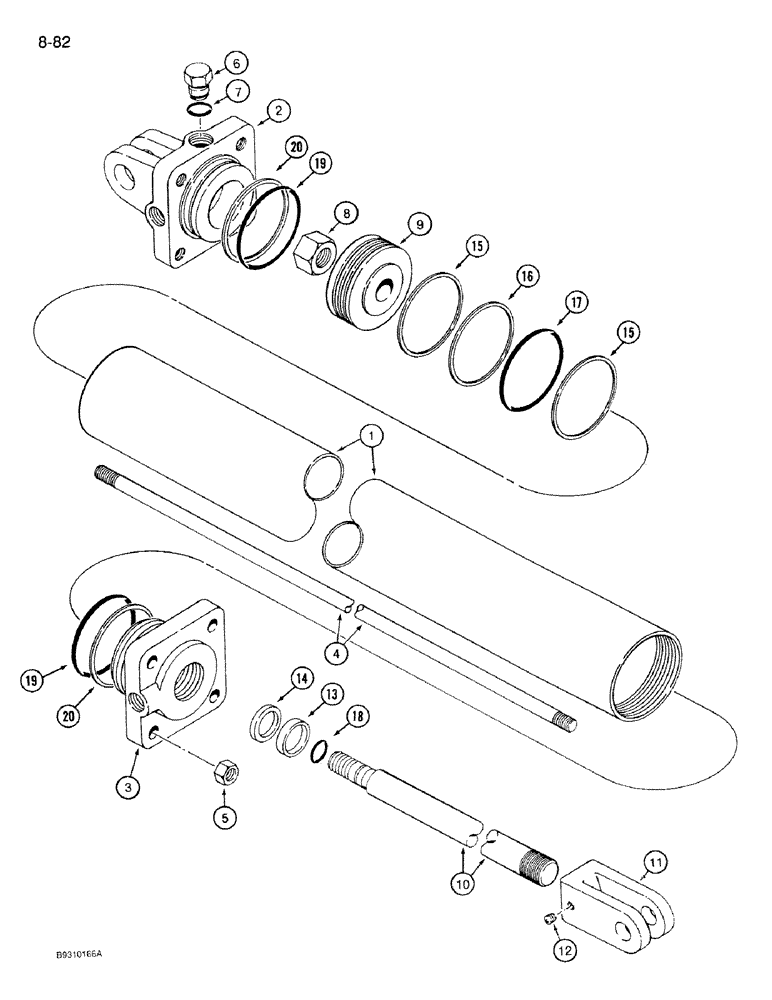

Запчасти Case IH 950 (8-082) - SLAVE CARRYING WHEEL HYDRAULIC CYLINDER, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (08) - HYDRAULICS

111062A1

CYLINDER

ASSEMBLY - 4-1/4 ID x 16 inch stroke, slave carrying wheel

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order cylinder assembly)

1шт.

2

118505A1

HEAD (CYLINDER)

HEAD - rear, cylinder

1шт.

3

118506A1

HEAD (CYLINDER)

HEAD - front, cylinder

1шт.

4

92873C1

THREADED ROD,3/4" - 10 x 21.812"

BOLT - tie, cylinder

4шт.

5

425-1012

NUT,3/4"-10, G5

4шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

9

92696C1

PISTON

- cylinder

1шт.

10

118509A1

ROD

- piston

1шт.

11

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

12

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

118510A1

SEAL KIT

- seal, repair

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

14

NSS

NOT SOLD SEPARAT

U-CUP - rod seal

1шт.

15

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

16

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston seal

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: piston-rod

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - cylinder, Serial Range: head-tube

2шт.

20

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head

2шт.
