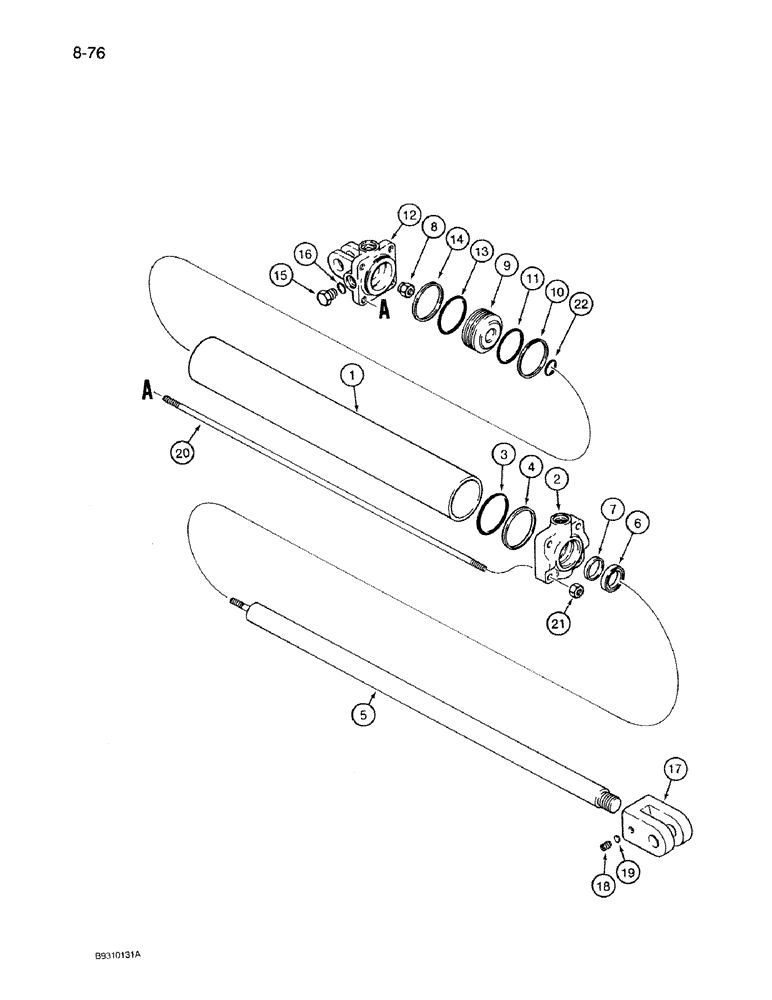

Запчасти Case IH 950 (8-076) - HYDRAULIC CYLINDER, 127061A1, ROW MARKER, 24 ROW NARROW, FRONT FOLD (08) - HYDRAULICS

127061A1

CYLINDER

ASSEMBLY - 3 ID x 20 stroke, 3/4-16 inch ports

1шт.

1

137351A1

SLEEVE

TUBE - cylinder

1шт.

2

113529A1

HEAD (CYLINDER)

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-3/4 ID x 4 inch OD, gland

1шт.

Part of Seal Kit P/N 93224C1

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 93224C1

1шт.

5

137354A1

ROD

- piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of Seal Kit P/N 93224C1

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 93224C1

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

9

145225C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 93224C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3-1/2 ID x 3-11/16 inch OD, backup, piston seal

1шт.

Part of Seal Kit P/N 93224C1

1шт.

12

1272761C1

HEAD

- cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-3/4 ID x 4 inch OD, cylinder head

1шт.

Part of Seal Kit P/N 93224C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of Seal Kit P/N 93224C1

1шт.

15

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

145233C1

CLEVIS,1/4" - 12

- rod

1шт.

18

83-1255

SET SCREW,Hex Soc, 1/4"-20 x 5/16"

SCREW - set, hex socket headless, 1/4 NC x 5/16 inch, cup pt

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

137358A1

TIE-ROD,7/16" - 14 x 28.25mm

BOLT - tie, cylinder

4шт.

21

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

22

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Kit P/N 93224C1

1шт.

93224C1

SEAL KIT

- seal, Includes: Ref. 3, 4, 6, 7, 10, 11, 13, 14 and 22

1шт.
