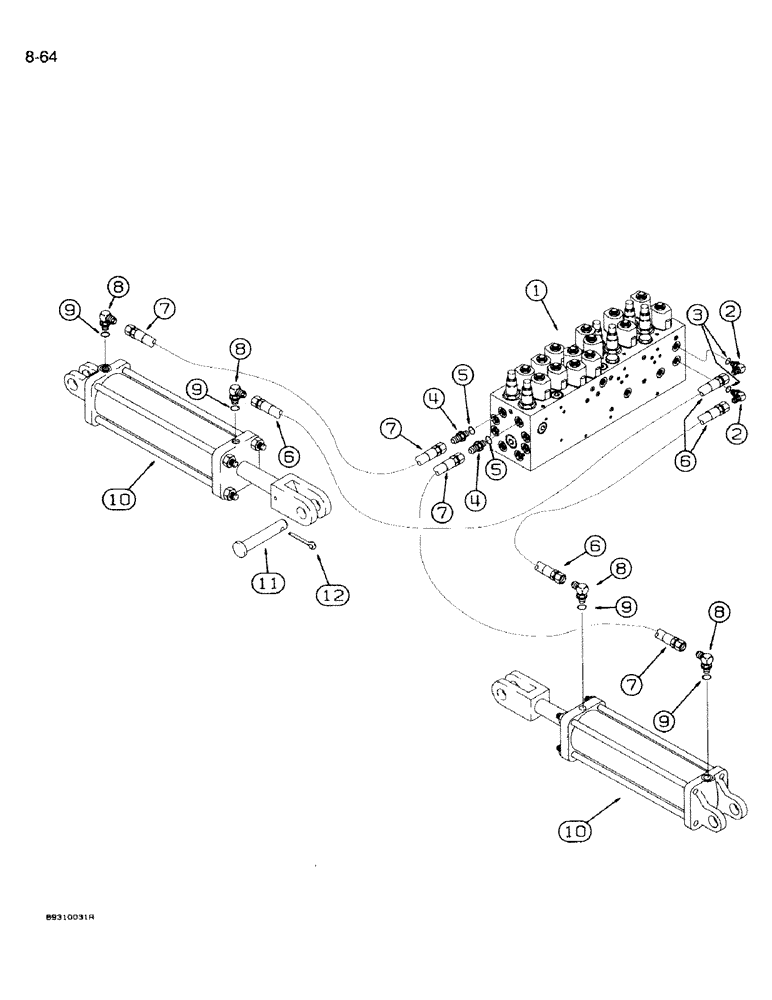

Запчасти Case IH 950 (8-064) - HYDRAULIC FOLD SYSTEM, 12 AND 16 ROW NARROW, FRONT FOLD (08) - HYDRAULICS

1

124459A1

VALVE

ASSEMBLY - control, 12 row, parts list page 8-129 see page 8-29 for mounting

1шт.

1

117311A2

VALVE

ASSEMBLY - control, 16 row, parts list page 8-129 see page 8-29 for mounting

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

6

812382C1

HYDRAULIC HOSE

HOSE - 1/4 x 50 inch long, valve to fold cylinder, rod end

2шт.

7

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

- Valve to fold cylinder, Closed end 6.35 mm ID x 1525.00 mm

2шт.

8

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

4шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

1272150C91

CYLINDER

ASSEMBLY - 4 ID x 16 inch stroke, wing folding, parts list 8-97

2шт.

11

145282C1

CLEVIS PIN

PIN - clevis, 1-1/4 x 3-1/4 inch

4шт.

12

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
