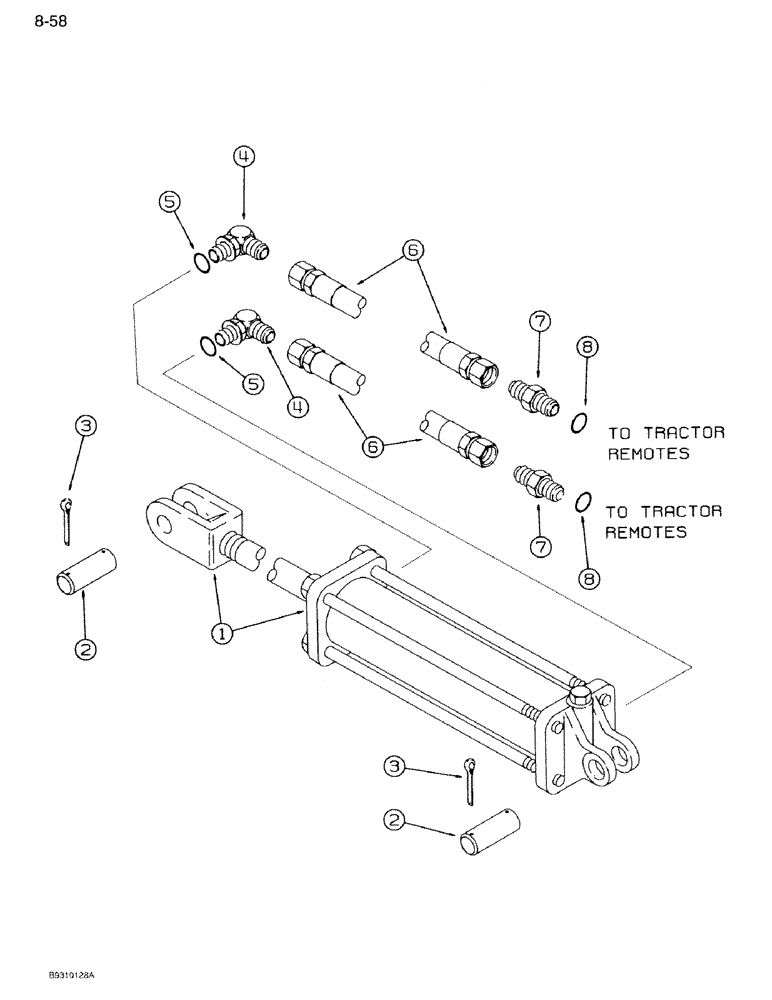

Запчасти Case IH 950 (8-058) - ENDWISE TRANSPORT WHEEL HYDRAULIC SYSTEM, 8 ROW NARROW, RIGID (08) - HYDRAULICS

1

1282329C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 4 x 16 inch double acting, parts list page 8-89

1шт.

2

1252319C1

PIN,31.75mm OD x 96mm L

- clevis, 1-1/4 x 3-3/4 inch

2шт.

3

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

1284299C1

HYDRAULIC HOSE

HOSE - 3/8 x 350 inch

2шт.

7

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
