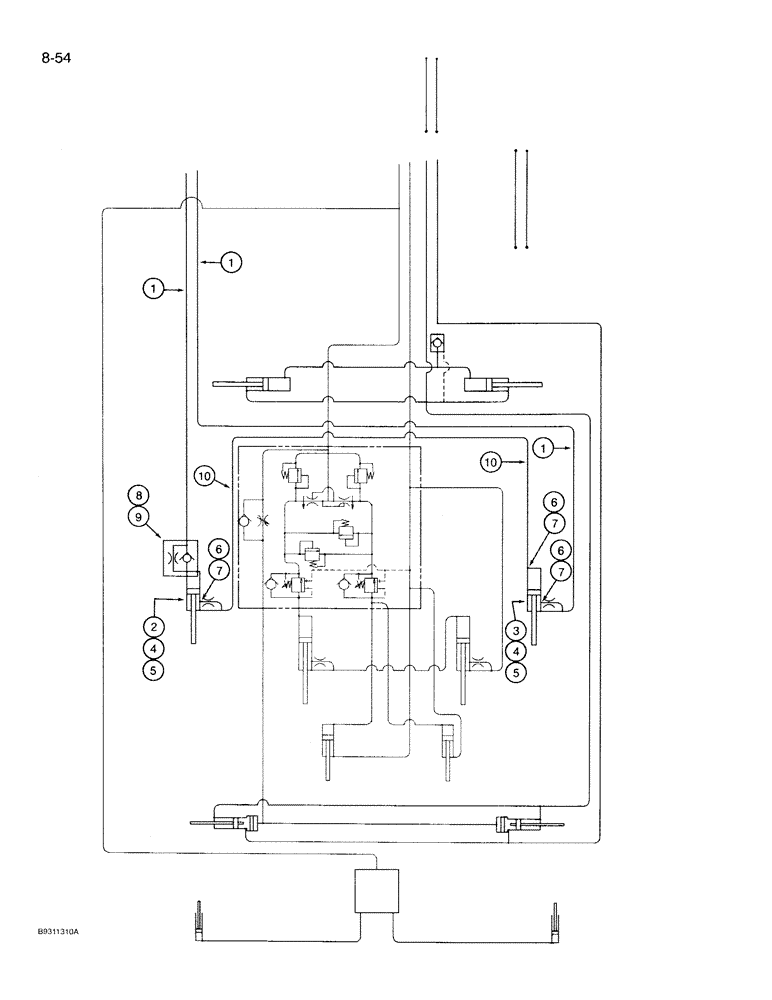

Запчасти Case IH 950 (8-054) - HYDRAULIC SYSTEM, FERTILIZER FRAME CARRYING WHEELS, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (08) - HYDRAULICS

1

1284300C1

HYDRAULIC HOSE

HOSE - 9650 mm long, pressure and return (8 row wide)

2шт.

1

135411A1

HYDRAULIC HOSE

HOSE - 10414 mm long, pressure and return (12 row narrow)

2шт.

2

1286472C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - carrying wheel, master, 3-1/4 x 8 inch stroke (Parts list page 8-81)

1шт.

3

1286471C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - carrying wheel, slave, 3 x 8 inch stroke (Parts list page 8-79)

1шт.

4

439-51248

HEADED PIN,3/4" x 3", G5

PIN - 3/4 x 2-5/8 inch, cylinder mounting

2шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

3шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

92781C1

RESTRICTOR

ELBOW - 90 degree, 9/16-18 flare x 3/4 inch adj O-ring (Restrictor)

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

1284299C1

HYDRAULIC HOSE

HOSE - 8130 mm long, cylinder crossover (8 row wide)

1шт.

10

1284300C1

HYDRAULIC HOSE

HOSE - 9650 mm long, cylinder crossover (12 row narrow)

1шт.
