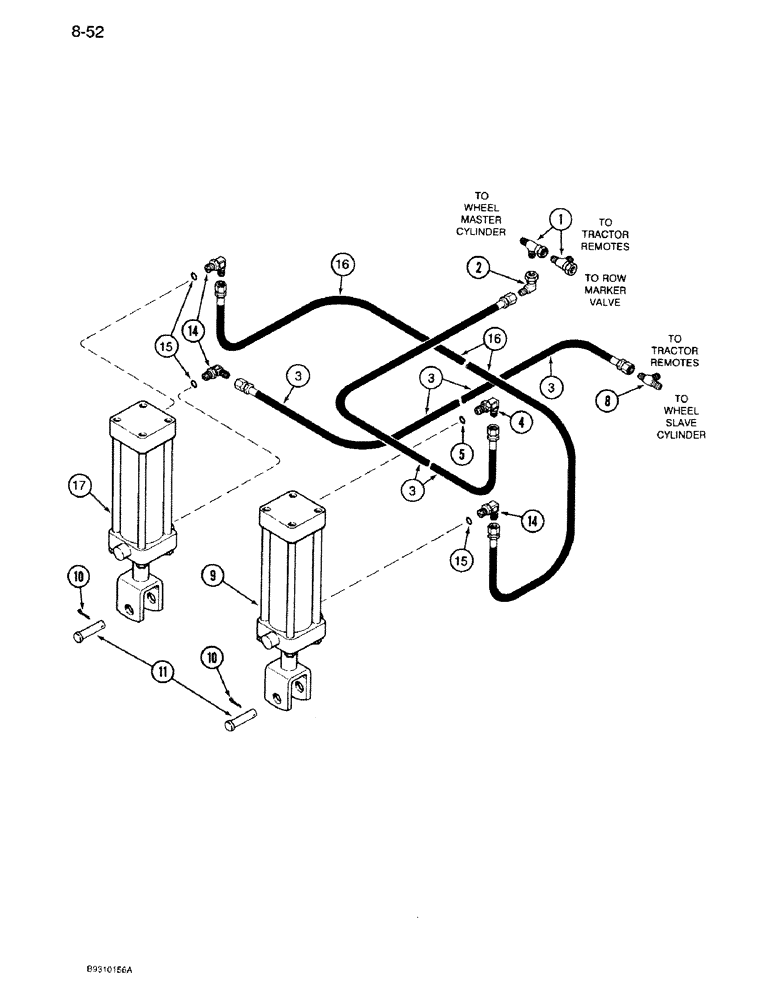

Запчасти Case IH 950 (8-052) - AUXILIARY DRIVE WHEEL HYDRAULIC SYSTEM, 6 ROW NARROW, RIGID (08) - HYDRAULICS

1

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- 9/16-18 inch fl branch x flare x adj straight thread

2шт.

2

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 flare x swivel flare

1шт.

3

1284301C1

HYDRAULIC HOSE

HOSE - 3/8 x 45 inch long

2шт.

4

92781C1

RESTRICTOR

ELBOW - 90 degree, special restrictor

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

1шт.

9

1286472C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - master, wheel, 3-1/4 ID x 8 inch stroke (See page 8-81)

1шт.

10

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

11

21675R1

PIN

- headed, 3/4 x 3-1/4 inch

2шт.

14

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

3шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

1284315C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 ID x 65 inch

1шт.

17

1286471C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - slave, wheel, 3 ID x 8 inch stroke (See page 8-79)

1шт.
