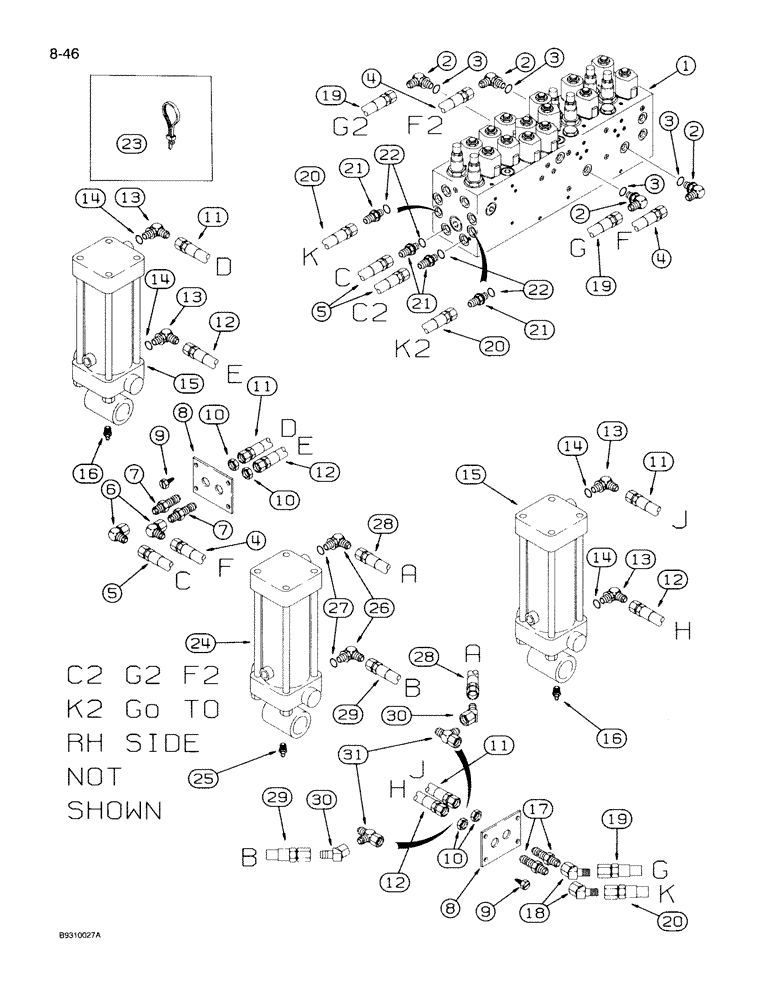

Запчасти Case IH 950 (8-046) - CARRYING WHEEL HYDRAULIC CIRCUIT, 12 ROW NARROW, FRONT FOLD (08) - HYDRAULICS

1

124459A1

VALVE

ASSEMBLY - control, parts list page 8-129

1шт.

2

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 3/4-16 flare x 9/16-18 inch adj O-ring

4шт.

4

134208A1

HYDRAULIC HOSE,12.70 mm ID x 5460.00 mm

- Valve to outer cylinders, Closed end 12.70 mm ID x 5460.00 mm

2шт.

5

91159C1

HYDRAULIC HOSE,12.70 mm ID x 4955.00 mm, SAE 100R1

HOSE - 1/2 ID x 195 inch, Valve to Outer Cylinders, Rod End

2шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

4шт.

7

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

4шт.

8

133467A1

PLATE

- hose mounting

4шт.

9

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

8шт.

10

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

8шт.

11

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Cylinder, Closed End 12.70 mm ID x 585.00 mm, SAE 100R1

4шт.

12

1336924C1

HYDRAULIC HOSE

HOSE - 1/2 ID x 24 inch, cylinder, rod end

4шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

8шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

113820A1

CYLINDER,Double Acting, 31.75mm Rod, 158.75mm Stroke

ASSEMBLY - 3-1/4 ID x 6-1/4 inch stroke, parts list page 8-87

4шт.

16

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

4шт.

17

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

4шт.

18

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 deg, 3/4-16 inch flare x swivel straight thread

4шт.

19

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Valve to Cylinder, Closed End 12.70 mm ID x 2030.00 mm, SAE 100R1

2шт.

20

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

- Valve to cylinder, Rod end 12.70 mm ID x 1650.00 mm

2шт.

21

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 O-ring boss

4шт.

23

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

1шт.

24

113820A1

CYLINDER,Double Acting, 31.75mm Rod, 158.75mm Stroke

ASSEMBLY - 3-1/4 ID x 6-1/4 inch stroke, parts list page 8-87, carrying wheel hydraulic attachments

2шт.

25

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Carrying wheel hydraulic attachments 90º, 1/4"-28 NPT x .75" lg, Drive

2шт.

26

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, carrying wheel hydraulic attachments

4шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Carrying wheel hydraulic attachments

1шт.

28

390649R92

HYDRAULIC HOSE

HOSE - 1/2 ID x 19 inch, cylinder, closed end, carrying wheel hydraulic attachments

2шт.

29

90880C1

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100 R17

Cylinder, Rod End, Carrying Wheel Hydraulic Attachments 12.70 mm ID x 635.00 mm, SAE 100 R17

2шт.

30

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 deg, 3/4-16 inch flare x swivel straight thread, carrying wheel hydraulic attachments

4шт.

31

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread, carrying wheel hydraulic attachments

4шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
