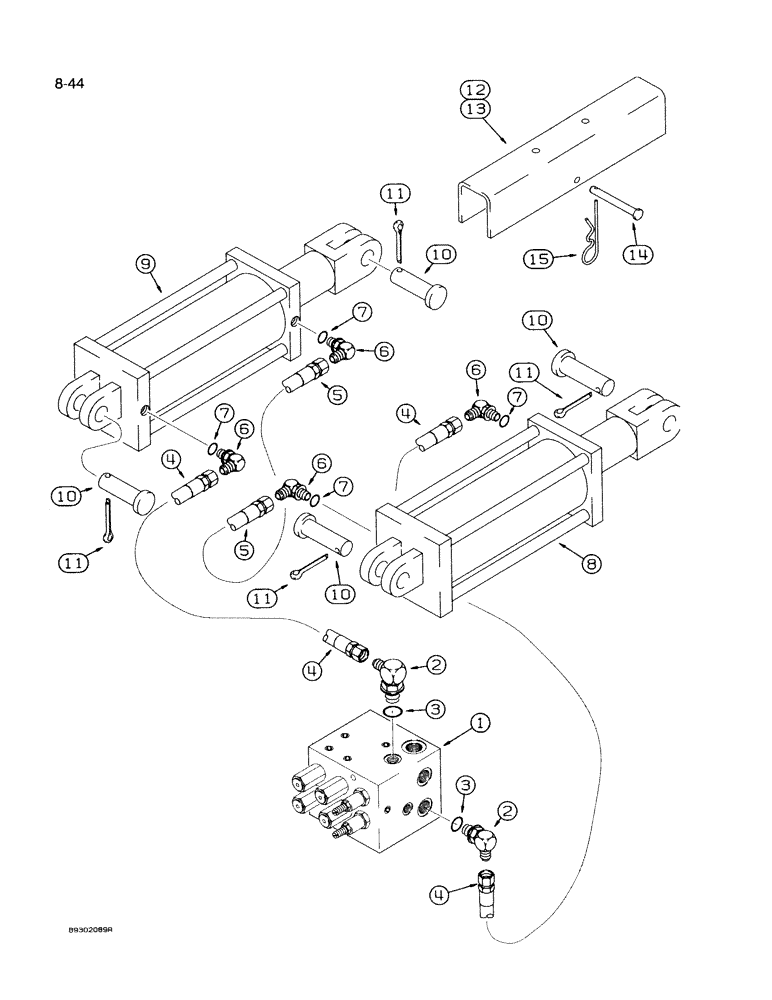

Запчасти Case IH 950 (8-044) - CARRYING WHEEL HYDRAULIC SYSTEM, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (08) - HYDRAULICS

1

138295A1

VALVE

ASSEMBLY - planter control, parts list page 8-133

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (Ports "L4" and "M" of control valve)

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

91240C1

HOSE,12.70 mm ID x 3050.00 mm, SAE 100R1

Valve to Cylinder (12 Row Narrow Planter) 12.70 mm ID x 3050.00 mm, SAE 100R1

2шт.

4

90876C1

HYDRAULIC HOSE,12.70 mm ID x 2540.00 mm, SAE 100R1

Valve to Cylinder (8 Row Wide Planter) 12.70 mm ID x 2540.00 mm, SAE 100R1

2шт.

5

1978105C1

HYDRAULIC HOSE

HOSE - 5715 mm long, cylinder to cylinder (12 row narrow planter)

1шт.

5

90685C1

HYDRAULIC HOSE,12.70 mm ID x 4825.00 mm, SAE 100R1

Cylinder to Cylinder (8 Row Wide Planter) 12.70 mm ID x 4825.00 mm, SAE 100R1

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

4шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

111062A1

CYLINDER

ASSEMBLY - 4-1/4 ID x 16 inch stroke, right-hand, slave carrying wheel, parts list page 8-83

1шт.

9

111065A1

CYLINDER

ASSEMBLY - 4-1/2 ID x 16 inch stroke, left-hand, master carrying wheel, parts list page 8-85

1шт.

10

439-52056

HEADED PIN,1 1/4" x 3 1/2"

PIN - clevis, 1-1/4 x 3-1/4 inch

4шт.

11

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

4шт.

12

118070A1

DECAL

STOP ASSEMBLY - cylinder , not available, order 1277797C2 bracket and 1254230C1 decal, item 13

2шт.

13

1254230C1

DECAL,Warning To Prevent Personal Injury Cylinder Safety Stops

- warning, not shown (See page 9F-85, item 4)

1шт.

14

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - clevis, 3/8 x 3-1/4 inch

2шт.

15

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Quick attach.

2шт.
