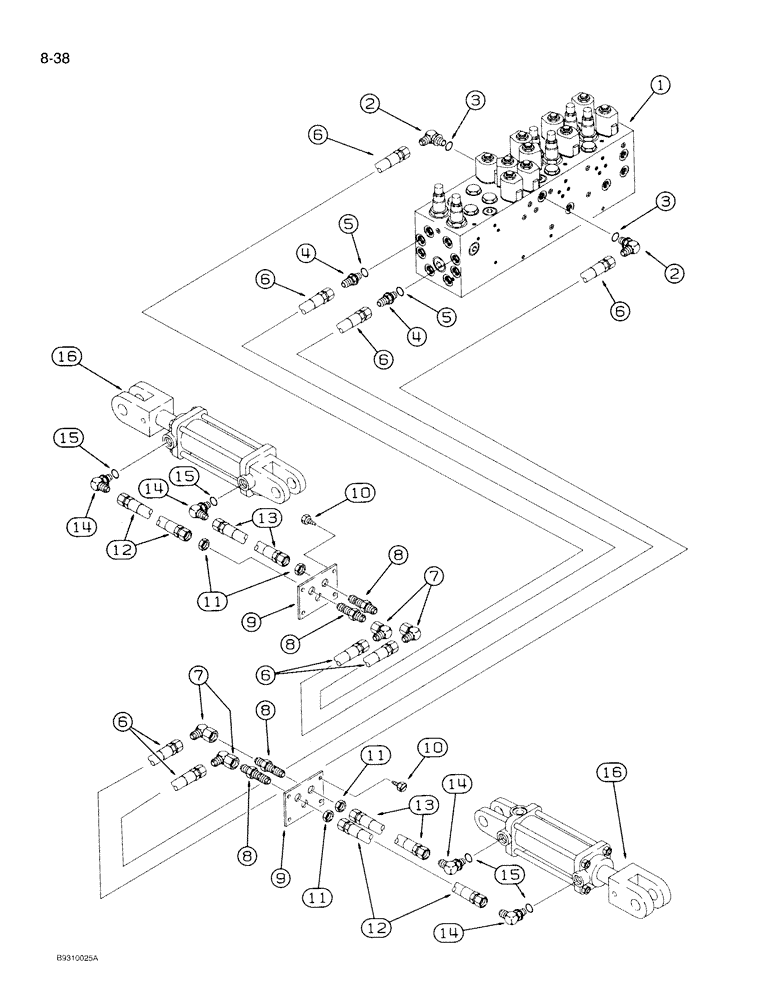

Запчасти Case IH 950 (8-038) - ROW MARKER HYDRAULIC SYSTEM, 24 ROW NARROW, FRONT FOLD (08) - HYDRAULICS

1

124461A1

VALVE

ASSEMBLY - control, 24 row, parts list page 8-131, see page 8-31 for mounting

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

6

134211A1

HYDRAULIC HOSE

HOSE - 3/8 x 400 inch, at valve to marker cylinders

4шт.

7

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 flare x swivel flare

4шт.

8

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

4шт.

9

133501A1

PLATE

- hose mounting

2шт.

10

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

4шт.

11

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

4шт.

12

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

- To inner row marker cylinder, Rod end 9.52 mm ID x 1905.00 mm

2шт.

13

1284315C1

HYDRAULIC HOSE

HOSE - 3/8 x 65 inch, to inner row marker cylinder, closed end

2шт.

14

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

4шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

127061A1

CYLINDER

ASSEMBLY - 2-1/2 ID x 8 inch stroke, row marker lift, parts list page 8-77, see page 9E-15 for cylinder mounting

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
