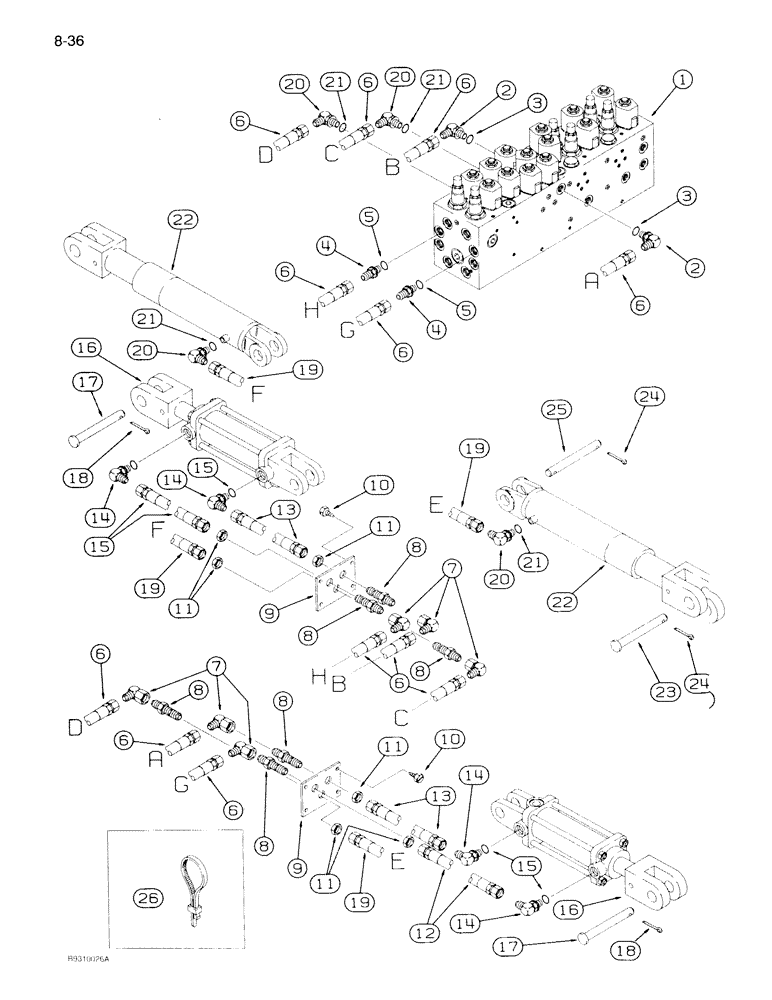

Запчасти Case IH 950 (8-036) - ROW MARKER HYDRAULIC SYSTEM, 12 AND 16 ROW NARROW, FRONT FOLD (08) - HYDRAULICS

1

124459A1

VALVE

ASSEMBLY - control, 12 row, parts list page 8-129, see page 8-29 for mounting

1шт.

1

117311A2

VALVE

ASSEMBLY - control, 16 row, parts list page 8-129, see page 8-29 for mounting

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

4шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

6

1261441C1

HYDRAULIC HOSE

HOSE - 1/4 x 230 inch, 12 row, at valve to marker cylinders

6шт.

6

1284318C1

HOSE

- 1/4 x 265 inch, 16 row, at valve to marker cylinders

6шт.

7

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 flare x swivel flare

6шт.

8

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

6шт.

9

133501A1

PLATE

- hose mounting

2шт.

10

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

4шт.

11

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

6шт.

12

1254527C1

HYDRAULIC HOSE

HOSE - 1/4 x 37 inch, to inner row marker cylinder, closed end

2шт.

13

1277506C1

HYDRAULIC HOSE,6.35mm ID x 1195mm L

- To inner row marker cylinder, Rod end 6.35 mm ID x 1195.00 mm

2шт.

14

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

4шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - 2-1/2 ID x 8 inch stroke, inner row marker lift, parts list page 8-75

2шт.

17

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - clevis, 1 x 3-1/4 inch

4шт.

18

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

19

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

- To outer row marker cylinder, Closed end 6.35 mm ID x 1525.00 mm

2шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

22

1345980C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 2 ID x 8 inch stroke, outer row marker lift, parts list page 8-73

2шт.

23

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - clevis, 1 x 3-1/4 inch

2шт.

24

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

6шт.

25

120620A1

PIN

- cylinder pivot

2шт.

26

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
