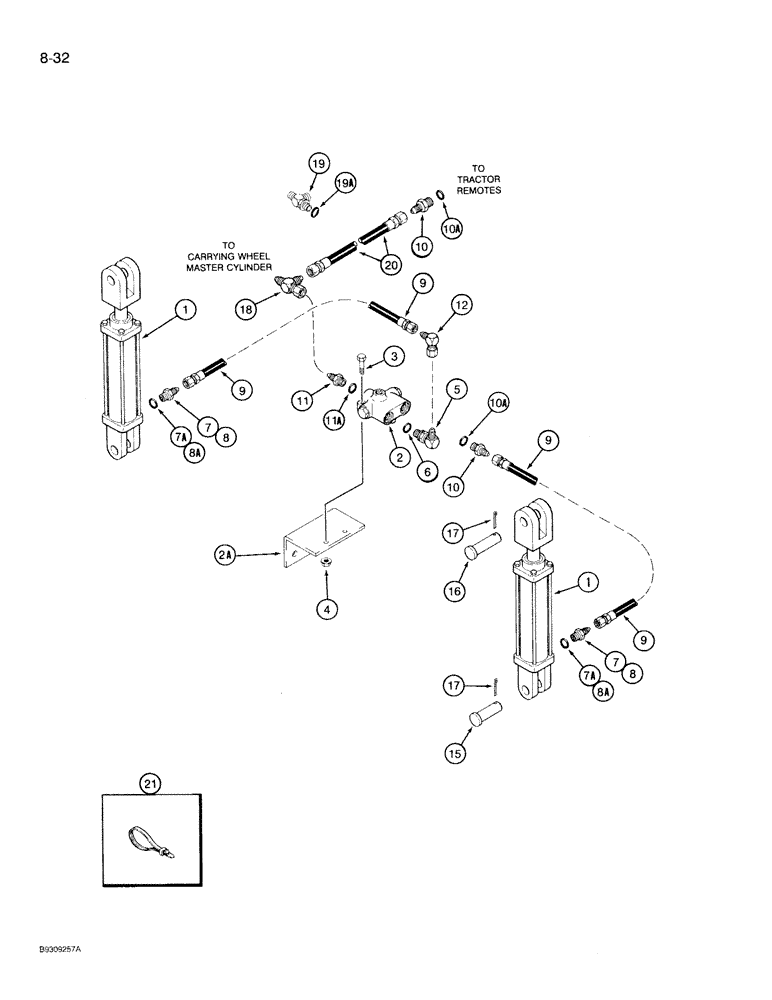

Запчасти Case IH 950 (8-032) - ROW MARKER HYDRAULIC SYSTEM, 4, 6 AND 8 ROW NARROW, RIGID, 4 & 6 ROW WIDE, RIGID (08) - HYDRAULICS

1

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - lift, marker (4 and 6 row narrow and 4 row wide) Parts list page 8-69

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - marker lift (6 row wide and 8 row narrow) See pages 8-71 and 8-73 for correct cylinder

2шт.

2

93006C1

HYDRAULIC VALVE

VALVE ASSEMBLY - row marker (Parts list page 8-107)

1шт.

2a

1547156C1

ANGLE

BRACKET - valve mounting

1шт.

3

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

5

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

1263477C3

HYD CONNECTOR

ADAPTER - special, restrictor (4 and 6 row narrow and 4 row wide

2шт.

7a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss (6 row wide and 8 row narrow)

2шт.

9

1284291C1

HYDRAULIC HOSE

- 1/4 x 95 inch (4 row narrow and 4 row wide)

2шт.

9

129768C1

HYDRAULIC HOSE

HOSE - 1/4 x 115 inch (6 row narrow)

2шт.

9

139655C2

HYDRAULIC HOSE

HOSE - 3/8 x 155 inch (6 row wide and 8 row narrow)

2шт.

10

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss (4 and 6 row narrow and 4 row wide)

2шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (6 row wide and 8 row narrow)

2шт.

10a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss (4 and 6 row narrow and 4 row wide) See note below

2шт.

11

93206C1

FITTING

ADAPTER - special restrictor (See note below)

1шт.

Restrictor adapter 93206C1 is an alternative part for proper operation of marker valve when used on tractor with high hydraulic flow rate. Used on 6 row narrow planter only.

1шт.

11a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 flare x swivel flare

1шт.

15

22807R1

CLEVIS PIN

PIN - headed, 1 x 3 inch

2шт.

16

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

18

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- 9/16-18 inch fl branch x flare x adj straight thread (4 and 6 row narrow and 4 row wide)

1шт.

19

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss (6 row wide and 8 row narrow)

1шт.

19a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

HOSE - 3/8 x 185 inch (4 and 6 row narrow and 4 row wide)

1шт.

20

91159C1

HYDRAULIC HOSE,12.70 mm ID x 4955.00 mm, SAE 100R1

HYDRALUIC HOSE, 12.70 mm ID X 4955.00 mm (6 Row Wide and 8 Row Narrow)

1шт.

21

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

1шт.

8a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
