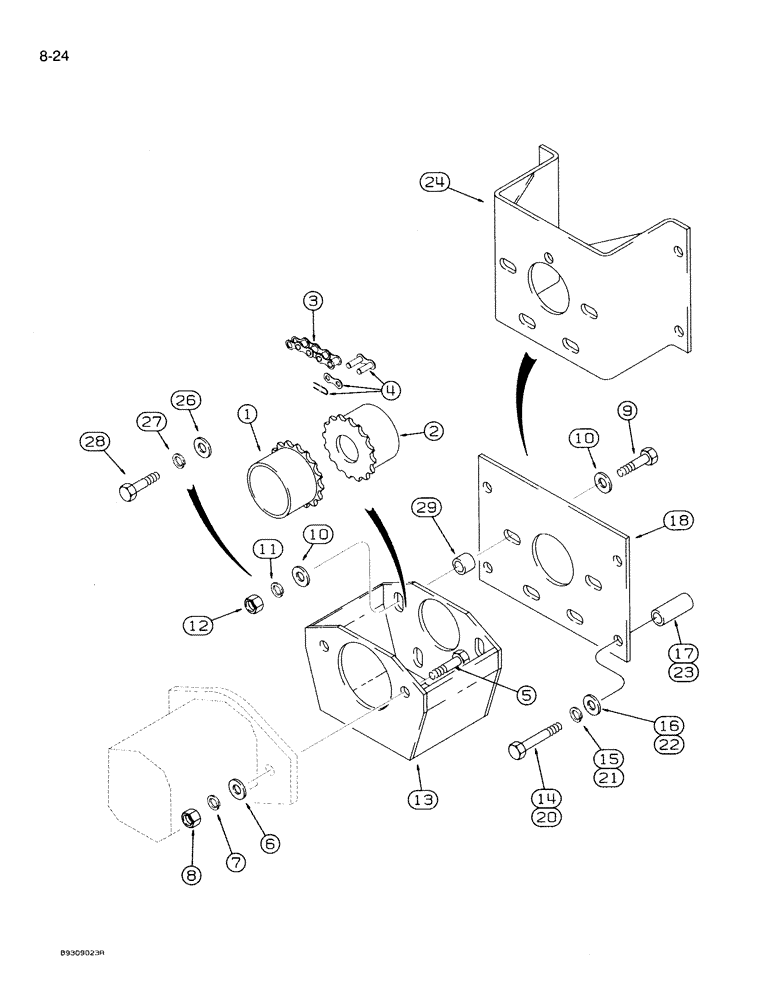

Запчасти Case IH 950 (8-024) - BLOWER PUMP MOUNTING PARTS, 24 ROW NARROW, FRONT FOLD (08) - HYDRAULICS

1

130542A1

COUPLING

COUPLER - pump

1шт.

2

130543A1

COUPLING

COUPLER - PTO

1шт.

3

131438A1

CHAIN (AG)

CHAIN - roller, No. 60, use one 241-1316 master link, item 4, and 11 links from 611362R91 bulk chain, see below

1шт.

4

241-1316

LINK,19.05mm Pitch

LINK - master, roller chain, No. 60

1шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

13

130539A1

BRACKET

HOUSING - coupler

1шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

28

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

29

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

- 1/2 x 3/8 inch

4шт.

611362R91

CHAIN (AG)

CHAIN - roller, No. 60, 10 foot roll

1шт.
