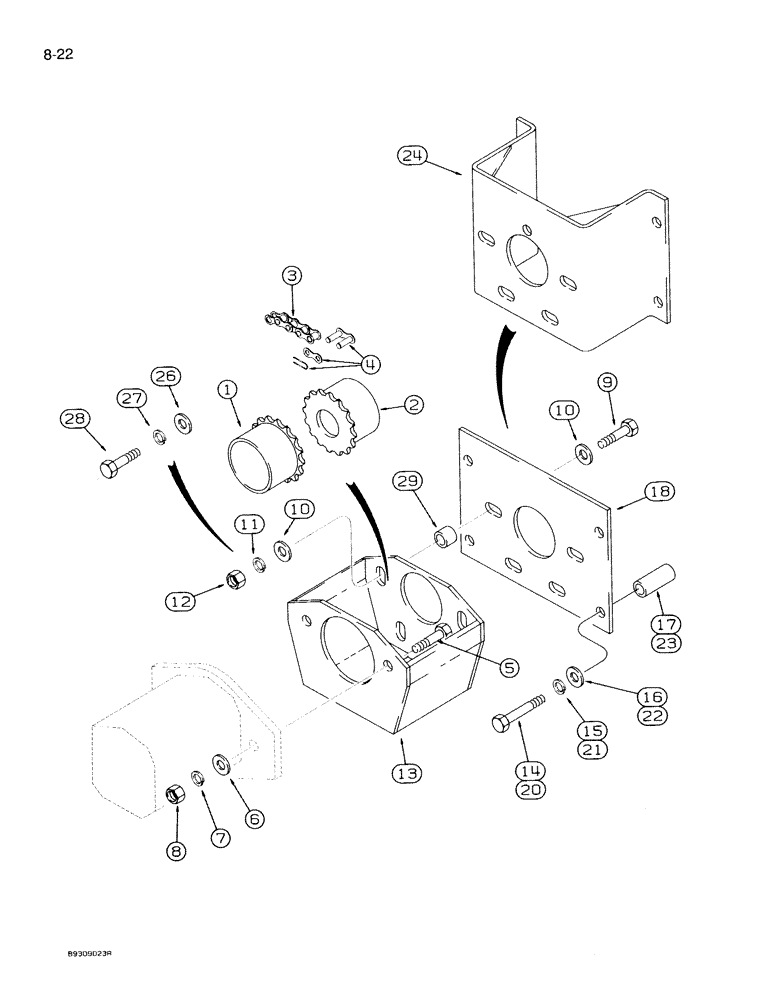

Запчасти Case IH 950 (8-022) - BLOWER PUMP MOUNTING PARTS, 24 ROW NARROW, FRONT FOLD, MAGNUM SERIES TRACTORS (08) - HYDRAULICS

1

130542A1

COUPLING

COUPLER - pump

1шт.

2

130543A1

COUPLING

COUPLER - PTO

1шт.

3

131438A1

CHAIN (AG)

CHAIN - roller, No. 60, use one 241-1316 master link, item 4, and 11 links from 611362R91 bulk chain, see below

1шт.

4

241-1316

LINK,19.05mm Pitch

LINK - master, roller chain, No. 60

1шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

10

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

8шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

13

130539A1

BRACKET

HOUSING - coupler

1шт.

14

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 mm x 100 mm

4шт.

15

892-11010

LOCK WASHER,M10

4шт.

16

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

17

H173716

BUSHING

SPACER - adapter plate

4шт.

18

130540A1

PLATE

- tractor adapter

1шт.

1

130542A1

COUPLING

COUPLER - pump, fargo 4wd tractors

1шт.

2

130543A1

COUPLING

COUPLER - PTO, fargo 4wd tractors

1шт.

3

131438A1

CHAIN (AG)

CHAIN - roller, No. 60, use one 241-1316 master link, item 4, and 11 links from 611362R91 bulk chain, see below, fargo 4wd tractors

1шт.

4

241-1316

LINK,19.05mm Pitch

LINK - master, roller chain, No. 60, fargo 4wd tractors

1шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Fargo 4wd tractors Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Fargo 4WD tractors 1/2", SAE

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Fargo 4WD tractors 1/2"

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Fargo 4WD tractors 1/2"-13, G5

2шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Fargo 4wd tractors Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

10

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Fargo 4WD tractors 1/2", SAE

8шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Fargo 4WD tractors 1/2"

4шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Fargo 4WD tractors 1/2"-13, G5

4шт.

13

130539A1

BRACKET

HOUSING - coupler, fargo 4wd tractors

1шт.

20

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, fargo 4wd tractors

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Fargo 4WD tractors 1/2"

4шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Fargo 4WD tractors 1/2", SAE

4шт.

23

D48528

SPACER

- adapter plate, fargo 4wd tractors

4шт.

24

130541A1

BRACKET

PLATE - tractor adapter, fargo 4wd tractors

1шт.

611362R91

CHAIN (AG)

CHAIN - roller, No. 60, 10 foot roll, fargo 4wd tractors

1шт.
