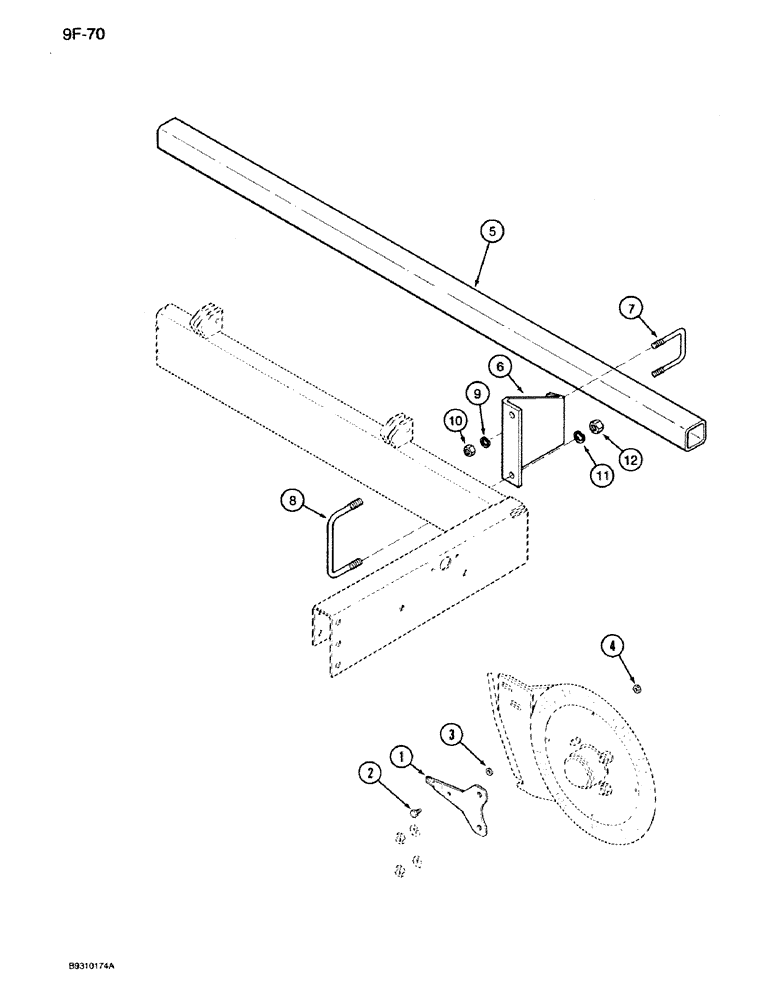

Запчасти Case IH 950 (9F-70) - KNIFE SCRAPER, USED WITH LIQUID AND DRY FERTILIZER APPLICATORS (09) - CHASSIS/ATTACHMENTS

1

1344522C1

KIT

BLADE - knife scraper

1шт.

2

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

1шт.

3

495-21038

WASHER,5/16"

(3/8 x 7/8 x 5/64") 5/16"

1шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

1980977C1

EXTENSION BAR ASSEMBLY (Order components), fertilizer aplicator mounting bar

1шт.

5

1344526C1

TUBE,1702 mm Length

BAR - extension, 67 inches long, fertilizer aplicator mounting

2шт.

6

1344525C1

BRACKET

- extension (8 inch), fertilizer aplicator mounting bar

4шт.

7

1344524C1

U-BOLT

- 1/2 x 2-1/2 x 3-1/2 inch, fertilizer aplicator mounting bar

4шт.

8

1344523C1

U-BOLT,5/8" - 11 x 6" W x 3 1/2" L

- 5/8 x 6 x 3-1/2 inch, fertilizer aplicator mounting bar

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Fertilizer applicator mounting bar 1/2"

8шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Fertilizer applicator mounting bar 1/2"-13, G5

8шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Fertilizer applicator mounting bar 5/8"

8шт.

12

425-1010

NUT,5/8"-11, G5

hex lock, Fertilizer applicator mounting bar 5/8"-11, G5

8шт.

1980978C1

EXTENSION BAR ASSEMBLY (Order components), fertilizer aplicator mounting

1шт.

5

1344526C1

TUBE,1702 mm Length

BAR - extension, 67 inches long, fertilizer aplicator mounting

2шт.

6

1344525C1

BRACKET

- extension (8 inch), fertilizer aplicator mounting bar

6шт.

7

1344524C1

U-BOLT

- 1/2 x 2-1/2 x 3-1/2 inch, fertilizer aplicator mounting bar

6шт.

8

1344523C1

U-BOLT,5/8" - 11 x 6" W x 3 1/2" L

- 5/8 x 6 x 3-1/2 inch, fertilizer aplicator mounting bar

6шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Fertilizer applicator mounting bar 1/2"-13, G5

12шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Fertilizer applicator mounting bar 5/8"

12шт.

12

425-1010

NUT,5/8"-11, G5

hex lock, Fertilizer applicator mounting bar 5/8"-11, G5

12шт.
