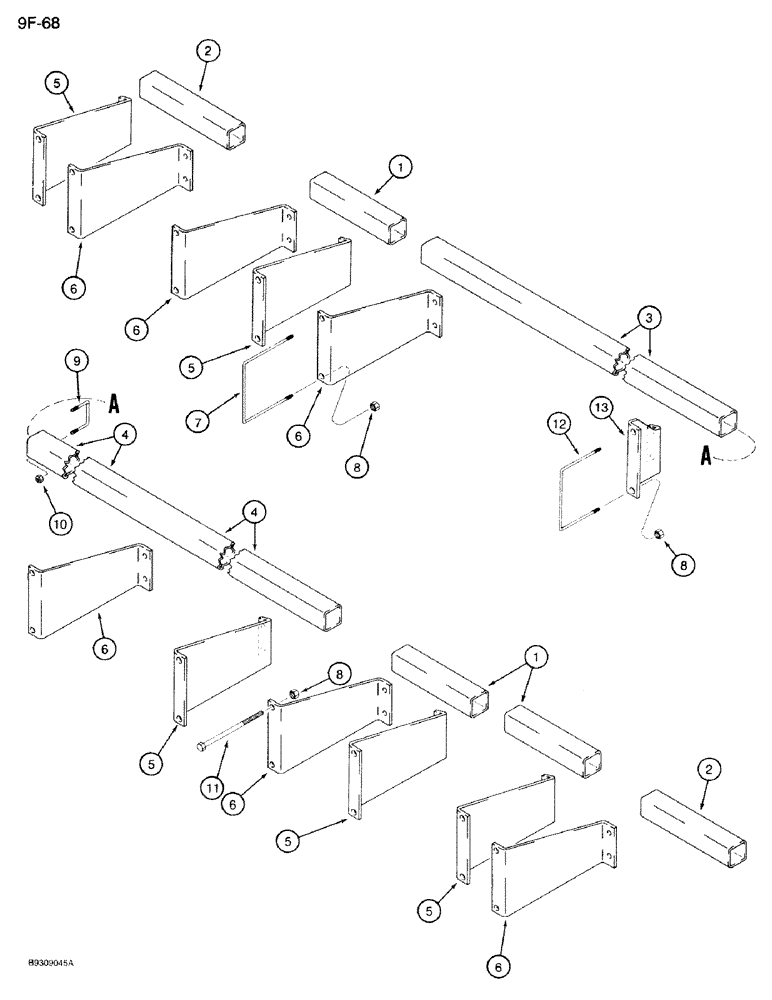

Запчасти Case IH 950 (9F-68) - FERTILIZER APPLICATOR MOUNTING BAR, 24 ROW NARROW, FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

113672A1

TUBE

BAR - applicator mounting, 12 inch long

6шт.

2

113673A1

TUBE,454 mm Length

BAR - applicator mounting, 13-3/8 inch long

4шт.

3

1284407C1

TUBE,2100 mm Length

BAR - applicator mounting, 83 inch long

2шт.

4

113674A1

TUBE,2750 mm Length

BAR - applicator mounting, 108-1/4 inch long

2шт.

5

113666A1

BAR

BRACKET - fertilizer bar, left-hand

11шт.

6

113667A1

BAR

BRACKET - fertilizer bar, right-hand

11шт.

7

1250813C1

U-BOLT

- 5/8 x 7 x 7 inch

22шт.

8

425-1010

NUT,5/8"-11, G5

52шт.

9

1344524C1

U-BOLT

- 1/2 x 2-1/2 x 2-1/2 inch

30шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

60шт.

11

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

4шт.

12

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- 5/8 x 5 x 7 inch

4шт.

13

124393A1

BRACKET

- tube

4шт.
